Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C6-2P

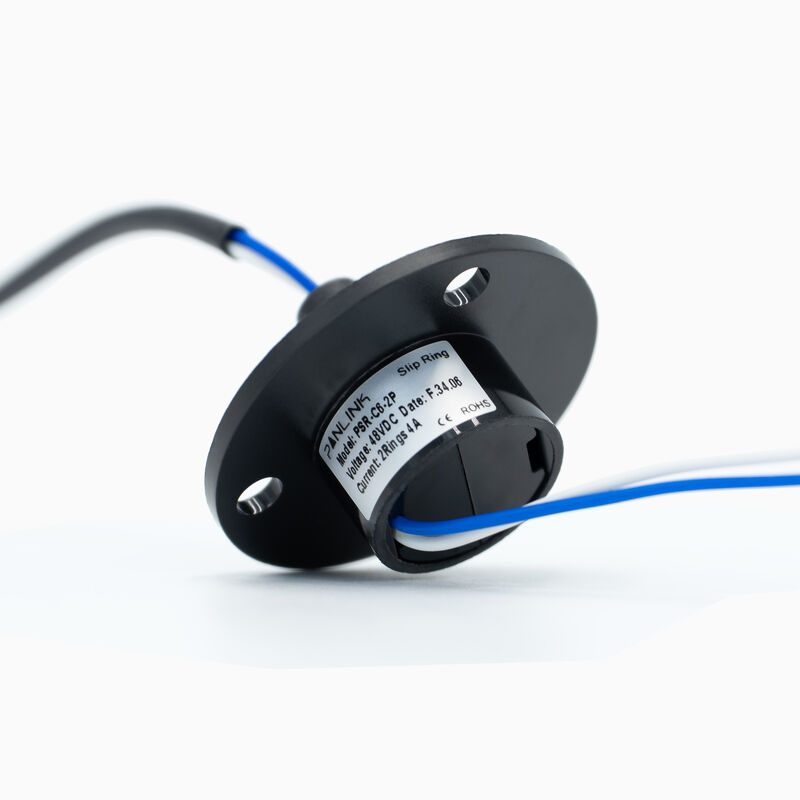

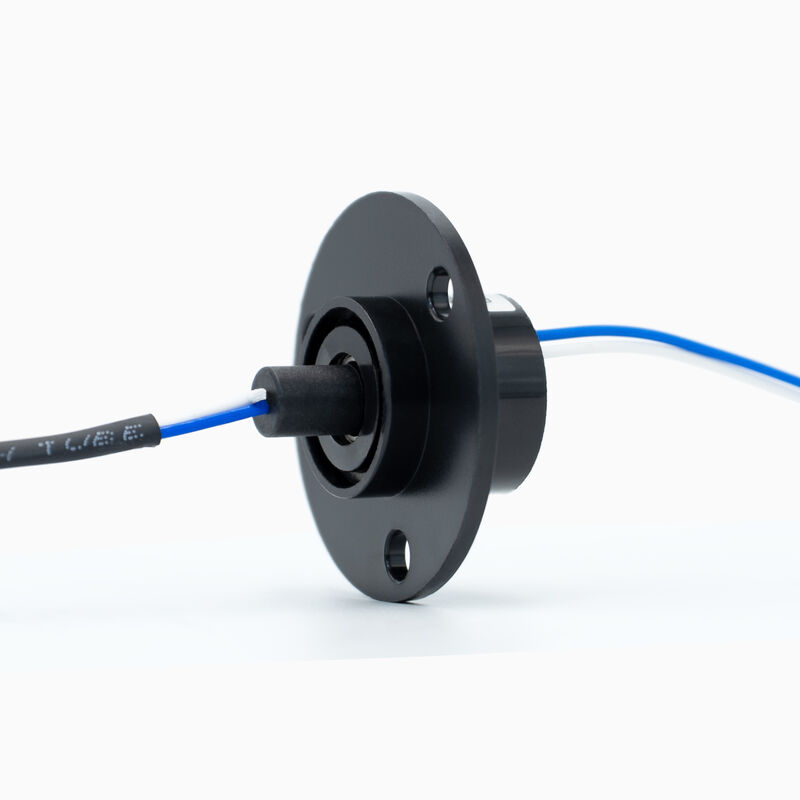

Compact Slip Ring for Combined Signal and Power Transmission
PSR-C6-2P
Dimensions in millimeters
Specifications
| Circuits | 2 for Power Transmission |
|---|---|
| Electrical Specifications | |
| Voltage Rating | 48VDC |
| Current Rating | 4A |
| Insulation Resistance | Max 20MΩ @ 200VDC |
| Dielectric Noise | 200VAC @ 50Hz, 60s |
| Electric Noise | Max 20mΩ |
| Lead Cable | AWG20 Teflon Silver Plated |
| Mechanical Specifications | |
| Working Life | 5 million revolutions |
| Rotating Speed | 300rpm |
| Operating Temperature | -4℉ to +176℉ (-20℃ to +80℃) |
| Operating Humidity | 0~90%RH |
| Contact Material | Precious Metal |
| Housing Material | ABS-777D |
| Protection Degree | IP51(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
