Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-M4

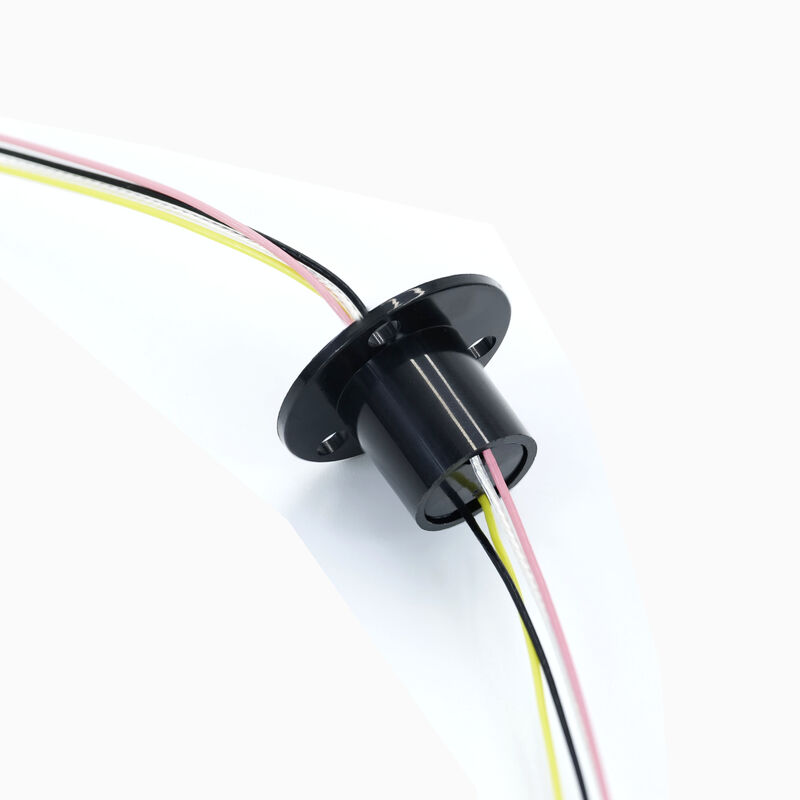

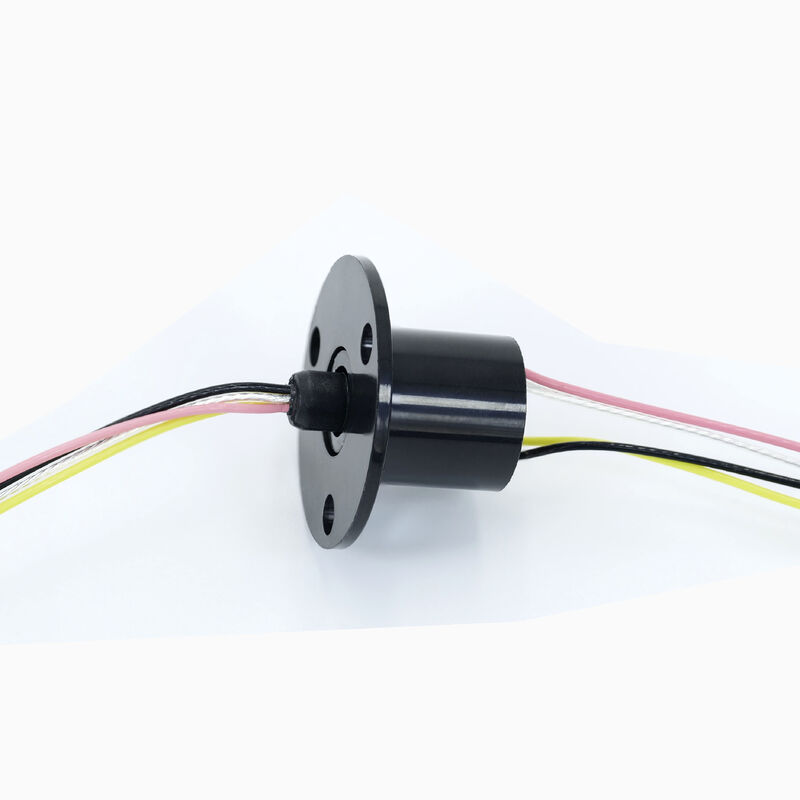

4 circuits Super Miniature Slip Ring Transmitting Power and Signal
| Features | Applications |
• Compact for ease of incorporation in small mechanisms | • Gimbaled systems |
• 4 rings with excellent signal handling properties | • UAV camera systems |
• No interruption or data package loss in a very long-time | • Positioning tables |
• Low electrical noise | • Laboratory equipment |
| Model | Circuits | Voltage | Length inch(mm) | OD inch(mm) | Speed (rpm) |
| PSR-M4 | 4 x 2A | 240VAC | 0.56″(14.3) | 0.49″(12.5) | 300 |
| Specifications | |
| Insulation Resistance | 50MΩ@500VDC |
| Dielectric Strength | 500VAC@50Hz |
| Electrical Noise | 100mΩ, max |
| Rotating Speed | 300rpm |
| Lifetime | 5 million revolutions |
| Working Temperature | -40℉ to +176℉(-40℃ to +80℃) |
| Storage Temperature | -40℉ to +185℉(-40℃ to +85℃) |
| Contact Material | Precious Metal |
| Housing Material | ABS |
| Lead wire | 26#AWG Teflon |
