Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C12K-9

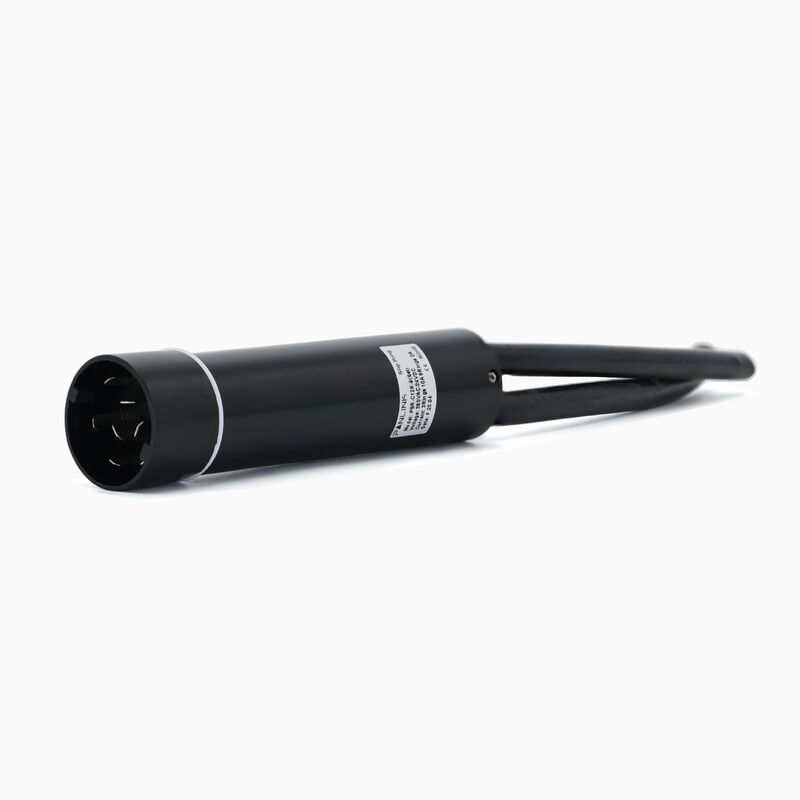

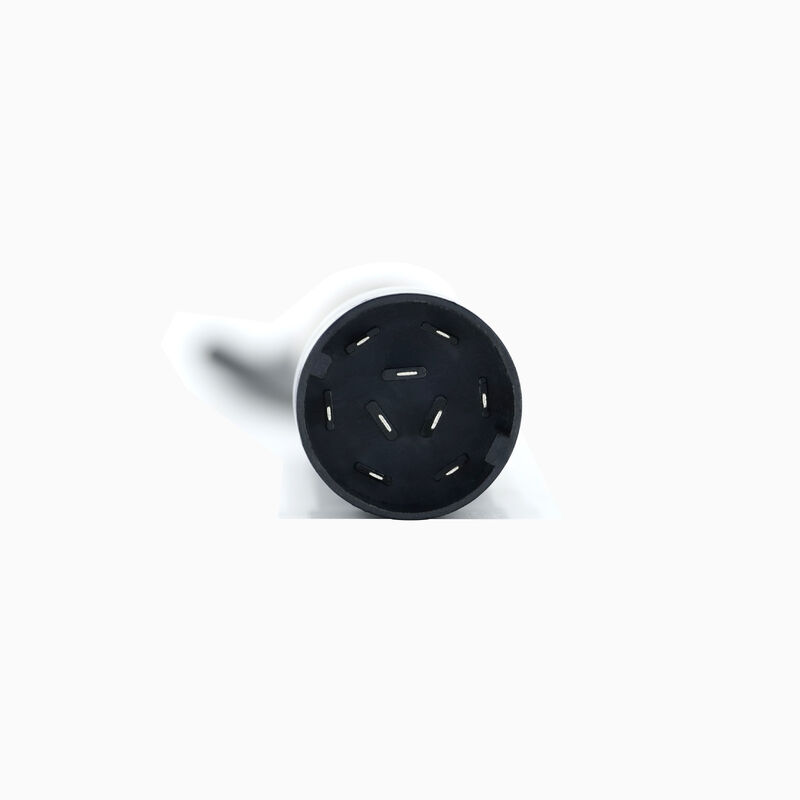

3 Power and 6 Signal Industrial Capsule Slip Ring with Excellent Safety and Noise Immunity
| Features | Applications |
| • Circuits: 3 x Power(10A) + 6 x Signal(2A) | • The joint segments of industrial robots |
| • Dielectric Strength: 500VAC@50Hz, 60s | • The rotary tables of automated machining centers |
| • Insulation Strength: 1000MΩ@500VDC | • The rotating units of packaging and textile machinery |
| • Protection Level: IP54 | • The rotating platforms of material handling conveyor lines |
| Specification | ||||
| Circuit | Current | Voltage | Withstand Voltage | |
| Power | 3 | 10A | 380VAC | 600VDC |
| Signal | 6 | 2A | 24VDC | 600VDC |
| Dielectric Strength | 500VAC@50Hz, 60s | Contact Material | Precious Metal | |
| Insulation Strength | 1000MΩ@500VDC | Housing Material | Aluminium Alloy | |
| Rotating Speed | 300rpm | Protection Level | IP54 | |
