Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-M6PC

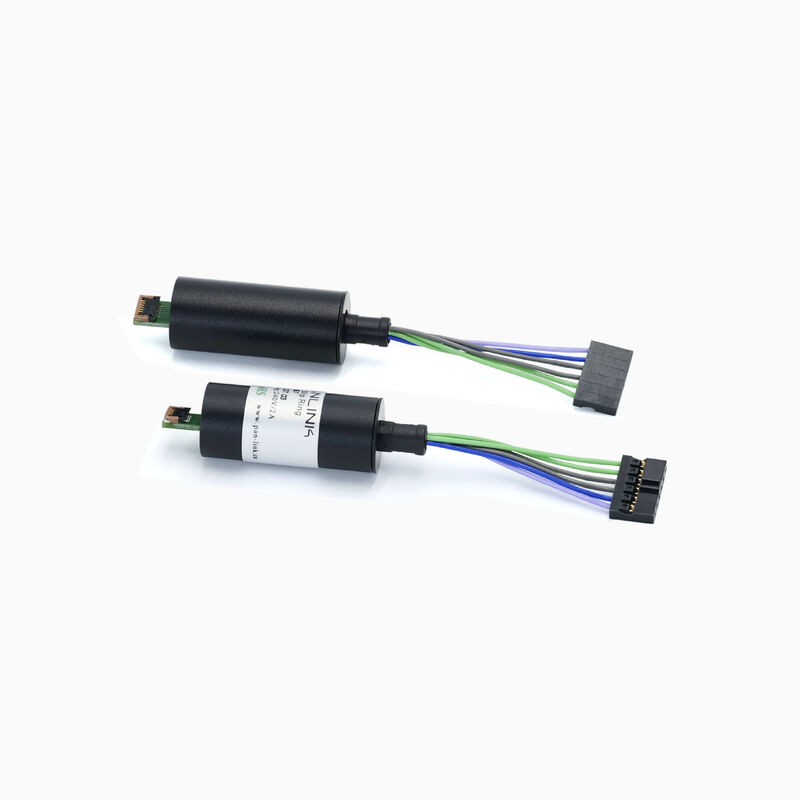

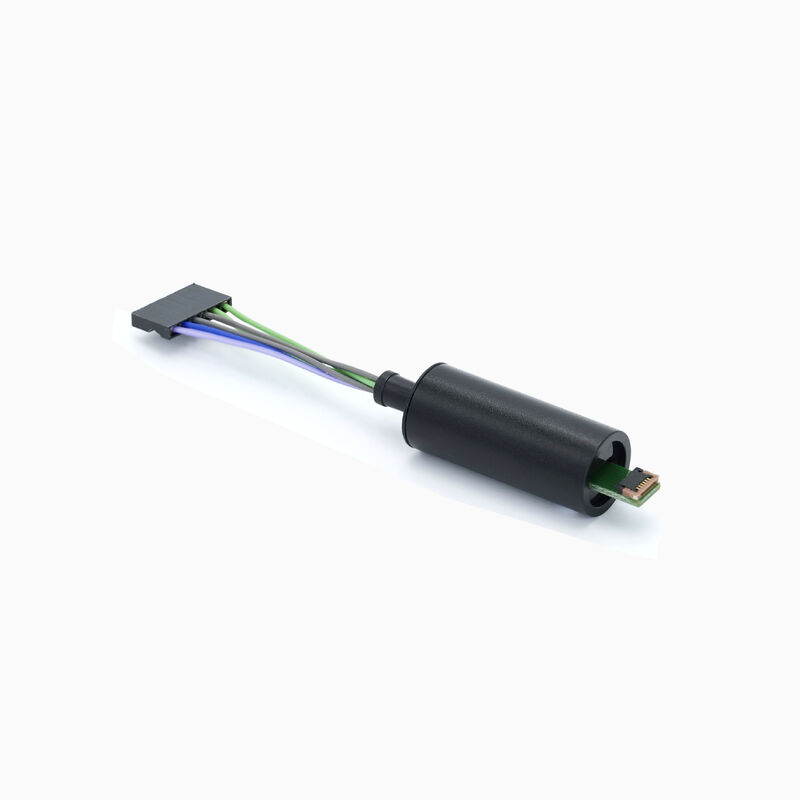

Compact Precision Miniature Capsule Slip Ring with a Super Long Lifespan of 10 Million Revolutions and High Qulity Signal Transmission
| Feature | Application |
| • Rings: 6 (1A/Ring) | • Industrial Robotics |
| • D x L(mm): 12 x 28 | • Precision Rotary Tables |
| • High Insulation Resistance. As high as 1000MΩ @ 500V DC | • Security & Surveillance |
|
• Long life. 10 million total revolutions at speeds up to 300 rpm have |
• Test & Measurement Equipment |
| been obtained | • Medical Equipment |
|
• Gold-on-gold sliding contact technology |
• Aerospace & Defense |
| • Lead Wires: Stator: Kyocera 6298 Connector with 6 Pins, 146MM | |
| FPC |
| Specification | |
| Model | PSR-M6PC |
| Circuits | 6 |
| Current | 1A/Ring |
| Voltage | 240VAC |
| Insulation Resistance | 200MΩ@500VDC |
| Dielectric Strength | 1000VAC@50Hz |
| Electrical Noise | 40mΩ, max |
| Rotating Speed | 300rpm |
| Torque | Max 0.2N.M |
| Lifetime | 10 million revolutions |
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 60% |
| Contact Material | Gold-Gold |
| Housing Material | Aluminium Alloy |
| Leadwire |
Rotor: AWG28# Teflon Silver Plated Wire Stator: Kyocera 6298 Connector with 6 Pins, 146MM FPC |
