Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C/M/K series

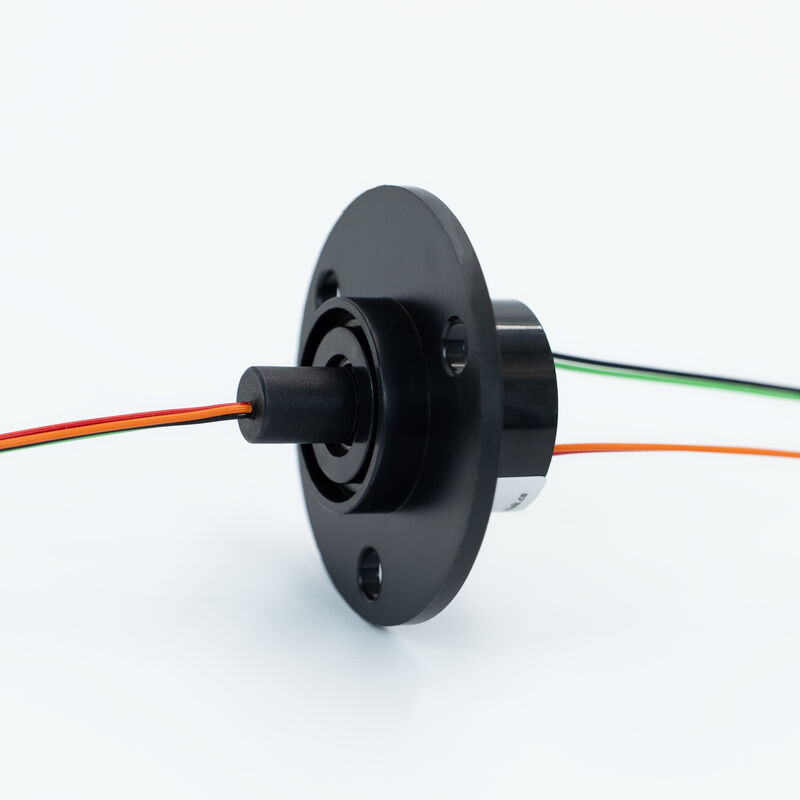

Compact and Customizable Capsule Slip Rings for Robotics and Mechanical
Capsule slip rings are designed to provide free signal / data and power transmission for any electromechanical system that requires unrestrained, continuous rotation while transferring signal/ data and power from a stationary platform to a rotating platform.
Panlink M/K/C series capsule slip ring are standard, on-the-shelf and no through bore products, that use gold-gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. They are superior of handling all kinds of signals and data, and can incorporate up to 200 circuits, which each are rate at 2A, with the option to combine circuits for higher currents of 5A or 10A. They are ideal for use where mounting space is limited and critical, without sacrifice current handling capability. They can be provided with waterproof package which can directly operate underwater with IP68 protection. We offer standardized & modularized design and fully customizable products according to the special requirements of customers in different applications.
| Main Application | Feature |
| • CCTV pan/ tilt camera | • Standard 8mm, 12.7mm, 22mm, 25.4mm diameter units available |
| • Motion control systems | • Standard 6 circuits, 12 circuits, 24 circuits, 36 circuits and 60 |
| • Eddy current inspection equipment | circuits configurations available |
| • Cleaning robotics | • Gold on gold contact |
| • Indexing and rotary tables | • Superior signal / data handling performance |
| • Packaging equipment | • Compatible with data bus protocols |
| • Medical Equipment | • Support USB, 100M Ethernet, Gigabit Ethernet and coaxial signal |
M Series Capsule Slip Ring
| Model | Circuits | Current Rating |
Voltage Rating (VDC) |
Size (mm) |
Speed (rpm) |
|
| 2A | OD | L | ||||
| PSR-SM-10P | 10 | 10 | 240 | 8.4 | 13.5 | 300 |
| PSR-M6S | 6 | 6 | 240 | 12.7 | 14.3 | 300 |
| PSR-M12S | 12 | 12 | 240 | 12.5 | 19.7 | 300 |
| PSR-M18 | 18 | 18 | 240 | 12.4 | 24 | 300 |
| PSR-M0 | 38 | 38 | 28VAC | 21.9 | 54.5 | 300 |
|
Remark: Flange, current, voltage, speed and higher protection can be customized. |
||||||
| Model | PSR-M Series |
| Voltage Rating | 120VAC(240VAC Optional) |
| Current Rating | 2A per circuit |
| Insulation Resistance | 500MΩ @ 500VDC |
| Electrical Noise | 20 mΩ max |
| Dielectric Strength | 500VAC @ 50Hz |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 0.01Nm @ room temperature |
| Life Time, Min | 10 million revolutions |
| Contact Material | Gold on gold |
| Lead Wires | 300mm AWG#28 Teflon wires |
| Housing Material | ABS Plastic or Aluminum Alloy |
| Working Temperature | -40℃ to +80℃(-40℉ to +176℉) |
| Storage Temperature | -45℃ to +85℃(-49℉ to +185℉) |
| Relative Humidity, Max | 95% |
| Protection Level | IP54 |
PSR-SM-10P Dimensions
PSR-M6S Dimensions
PSR-M12 Dimensions
PSR-M18 Dimensions
PSR-M0 Dimensions
K Series Slip Ring
| Model | Circuits | Current Rating |
Voltage Rating (VDC) |
Size (mm) |
Speed (rpm) |
|
| 2A | OD | L | ||||
| PSR-K12 | 12 | 12 | 240 | 15.5 | 34 | 300 |
| PSR-K15 | 15 | 15 | 240 | 15.5 | 34 | 300 |
| PSR-K18 | 18 | 18 | 240 | 15.5 | 34 | 300 |
| PSR-K20 | 20 | 20 | 240 | 15.5 | 34 | 300 |
| PSR-K24 | 24 | 24 | 240 | 15.5 | 34 | 300 |
| Remark: Flange, current, voltage, speed and higher protection can be customized. | ||||||
| Model | PSR-K Series |
| Voltage Rating | 120VAC(240VAC Optional) |
| Current Rating | 2A per circuit |
| Insulation Resistance | 500MΩ @ 500VDC |
| Electrical Noise | 20 mΩ max |
| Dielectric Strength | 500VAC @ 50Hz |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 0.01Nm @ room temperature |
| Life Time, Min | 10 million revolutions |
| Contact Material | Gold on gold |
| Lead Wires | 300mm AWG#28 Teflon wires |
| Housing Material | ABS Plastic or Aluminum Alloy |
| Working Temperature | -40℃ to +80℃(-40℉ to +176℉) |
| Storage Temperature | -45℃ to +85℃(-49℉ to +185℉) |
| Relative Humidity, Max | 95% |
| Protection Level | IP54 |
PSR-K Series Dimensions
C Series Capsule Slip Ring
| Model | Circuits | Current Rating |
Voltage Rating (VAC) |
Signal |
Size (mm) |
Speed (rpm) |
||||
| 2A | USB | 100M Ethernet | Gbit Ethernet | Coaxial | OD | L | ||||
| PSR-C6 | 6 | 6 | 120 | 22 | 19.6 | 300 | ||||
| PSR-C12 | 12 | 12 | 120 | 22 | 26.5 | 300 | ||||
| PSR-C15 | 15 | 15 | 120 | 22 | 28 | 300 | ||||
| PSR-C24 | 24 | 24 | 120 | 22 | 42.53 | 300 | ||||
| PSR-C36 | 36 | 36 | 120 | 22 | 57.6 | 300 | ||||
| PSR-C44 | 44 | 44 | 28VAC | 22 | 37 | 300 | ||||
| PSR-C60 | 60 | 60 | 120 | 25.4 | 91.7 | 300 | ||||
| PSR-C6-E | 12 | 8 | 120 | 1 | 22 | 26.5 | 300 | |||
| PSR-C6-G | 15 | 7 | 120 | 1 | 22 | 30 | 300 | |||
| PSR-C20-E | 24 | 20 | 120 | 1 | 22 | 42.6 | 300 | |||
| PSR-C16-G | 24 | 16 | 120 | 1 | 22 | 42.6 | 300 | |||
| PSR-C8-U | 12 | 8 | 120 | 1 | 22 | 26.5 | 300 | |||
| PSR-C20-U | 24 | 20 | 120 | 1 | 22 | 42.6 | 300 | |||
| PSR-C16-E-U | 24 | 16 | 120 | 1 | 1 | 22 | 42.6 | 300 | ||
| PSR-C12-G-U | 24 | 12 | 120 | 1 | 1 | 22 | 42.6 | 300 | ||
| PSR-C12-G-C | 24 | 12 | 120 | 1 | 1 | 22 | 42.6 | 300 | ||
| PSR-C26-G-C | 36 | 26 | 120 | 1 | 1 | 25.4 | 57.3 | 300 | ||
| Remark: Flange, current, voltage, speed and higher protection can be customized. | ||||||||||
| Model | PSR-C Series |
| Voltage Rating | 120VAC(240VAC optional) |
| Current Rating | 2A |
| Insulation Resistance | 500MΩ @ 500VDC |
| Electrical Noise | 20 mΩ max |
| Dielectric Strength | 500VAC @ 50Hz |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 0.01Nm @ room temperature |
| Life Time, Min | 10 million revolutions |
| Contact Material | Gold on gold |
| Lead Wires | 300mm AWG#28 Teflon wires |
| Housing Material | ABS Plastic or Aluminum Alloy |
| Working Temperature | -40℃ to +80℃(-40℉ to +176℉) |
| Storage Temperature | -45℃ to +85℃(-49℉ to +185℉) |
| Relative Humidity, Max | 95% |
| Protection Level | IP54 |
PSR-C12 Dimensions
PSR-C15 Dimensions
PSR-C44 Dimensions
PSR-C60 Dimensions
