Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C25-02

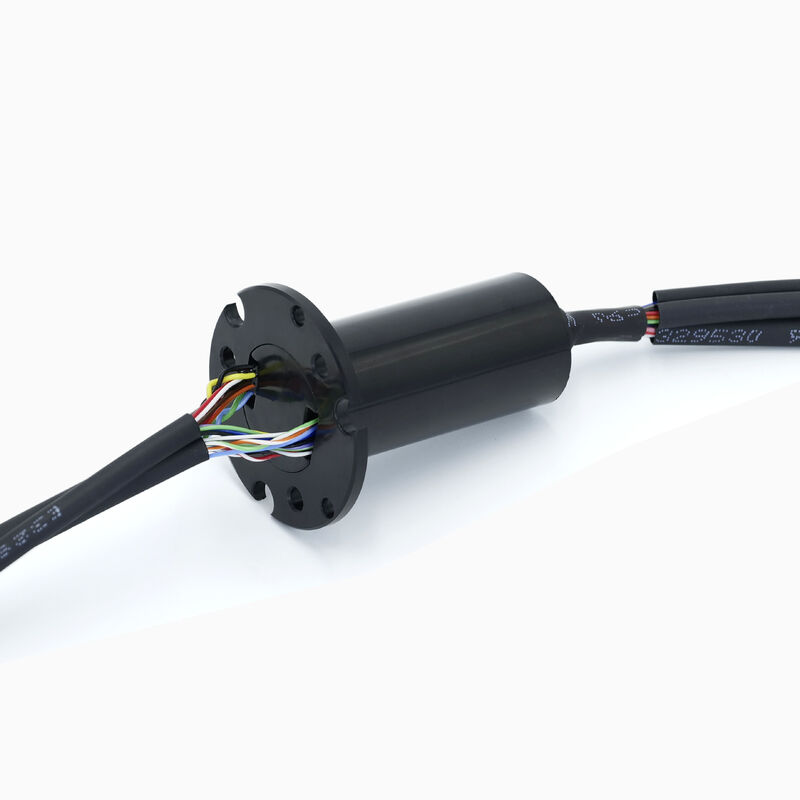

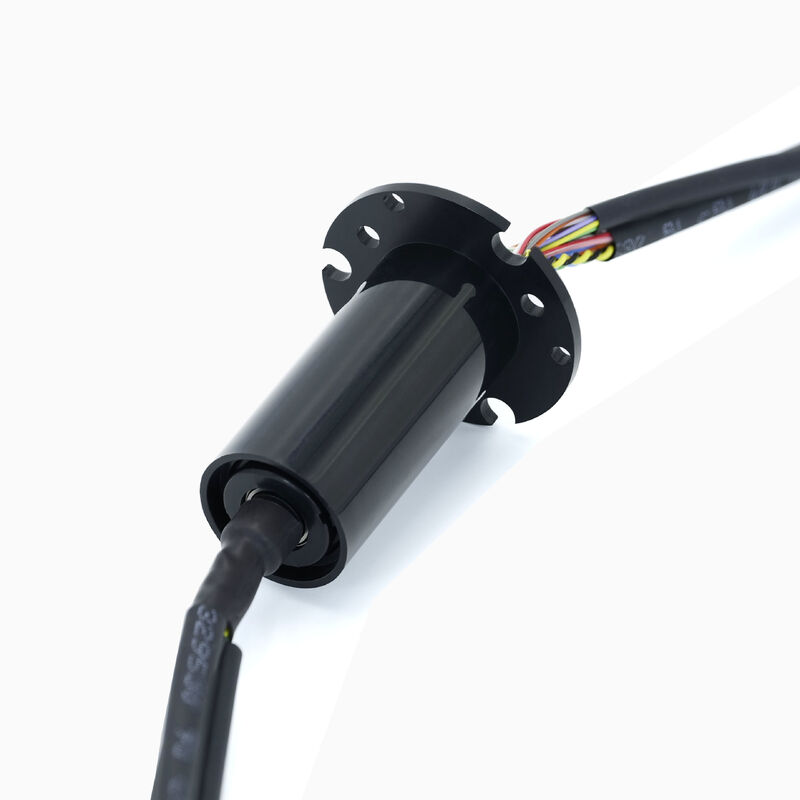

Precision Slip Ring for Low-Signal/Low-Power Transmission with Exceptional Signal Fidelity
| Features | Applications |
|
• 25 circuits deliver abundant signal and power paths |
• Unmanned Aerial Vehicles & Unmanned Ground |
|
• Ultra-long mechanical life |
Vehicles |
|
• High insulation resistance ensures signal integrity |
• Robotic Joints |
|
• Ultra-low contact resistance preserves the fidelity |
• Automation Equipment & Winding Systems |
|
of delicate analog and low-power digital signals |
• Medical Devices |
| • Precision Rotating Test Equipment & Turntables |
| Model | Circuits | Voltage |
Length inch(mm) |
OD inch(mm) |
Speed (rpm) |
|
| PSR-C25-02 | 25 x 2A | 48VDC | 1.94″(49.2) | 0.87″(22) | 300 | |
| Specifications | ||||||
| Insulation Resistance | 20MΩ@200VDC | |||||
| Electric Noise | 20mΩ max | |||||
| Dielectric Strength | 200VAC@50Hz | |||||
| Torque | 50 gf.cm | |||||
| Lifetime | 10 million revolutions | |||||
| Humidity | 60%RH | |||||
| Working Temperature | -40℉~+176℉(-40℃~+80℃) | |||||
| Storage Temperature | -40℉~+176℉(-40℃~+80℃) | |||||
| Protection Level | IP54 | |||||
| Contact Material | Precious Metal | |||||
| Housing Material | Plastic | |||||
