Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C12J

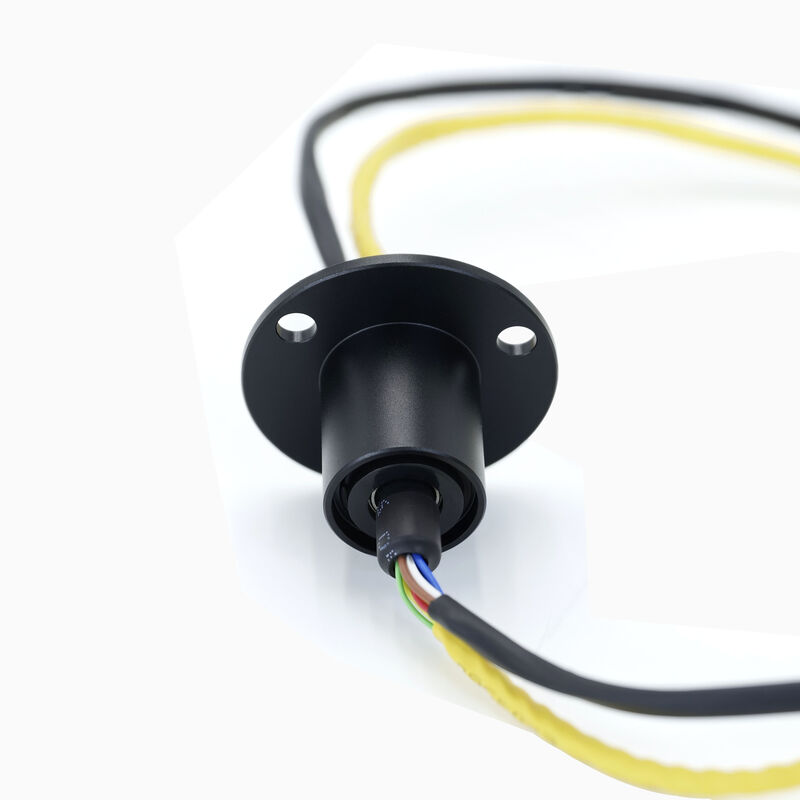

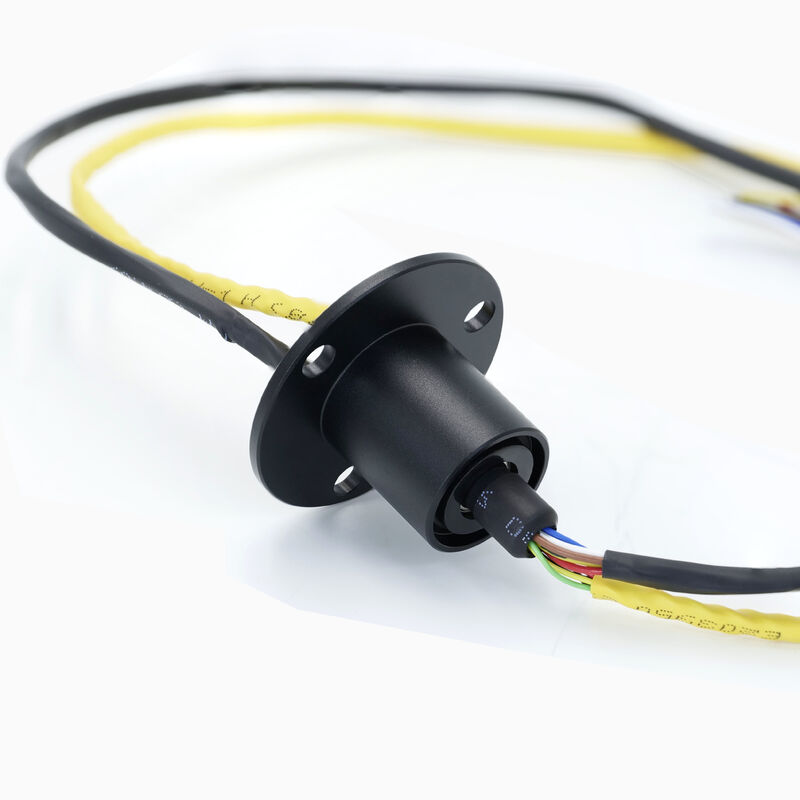

12 Rings Compact Capsule Slip Ring Equipped with Silver-Plated Teflon Wires Combining High Signal Fidelity with Stable Electrical Performance
| Feature | Application |
| • 12 circuit models | • CCTV pan / tilt camera mounts |
| • 2 amp / 240 VAC circuits | • Electrical test equipment |
| • Speeds up to 300 rpm | • Manufacturing and process control equipment |
| • Contact Material: Precious Metal | • Exhibit / display equipment |
| • Housing Material: Aluminium Alloy | • Medical equipment |
| • Silver-Plated Teflon Wires |
| Model | Size: D x L(mm) | Circuits | Current | Volatge | Operational Speed |
| PSR-C12J | 44 x 26.4 | 12 | 2 amp | 240VAC/VDC | 300rpm |
| Specification | |
| Insulation Resistance | 500MΩ@500VDC max |
| Electric Noise | 40mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Torque | 0.01N*M |
| Lifetime | 5 million revolutions |
| Humidity | 60%RH |
| Working Temperature | -20℃~+50℃ |
| Contact Material | Precious Metal |
| Lead Wires | Silver-Plated Teflon Wires |
