Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C16-6S1G-02

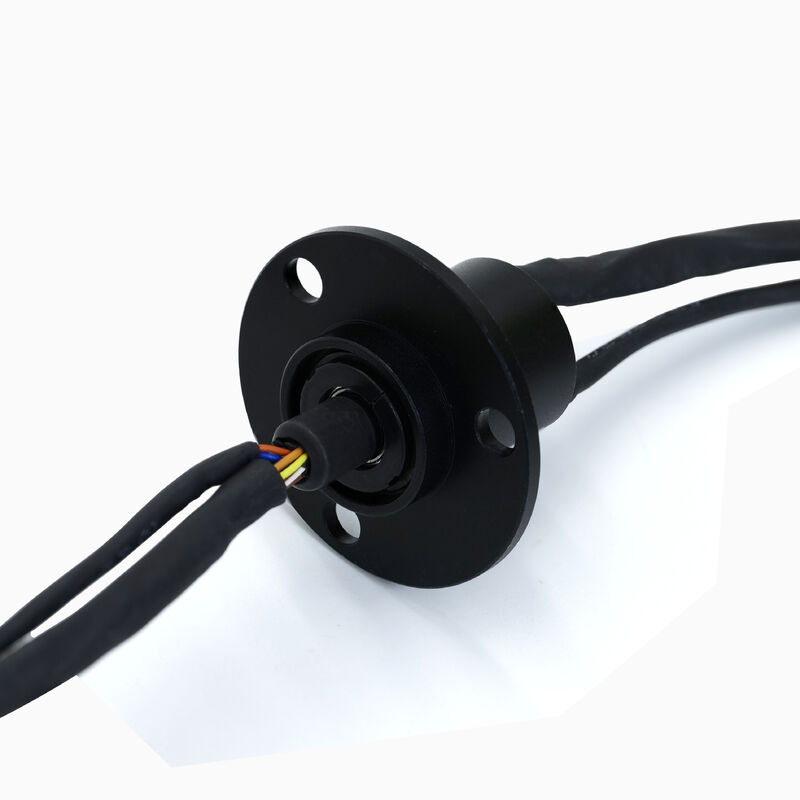

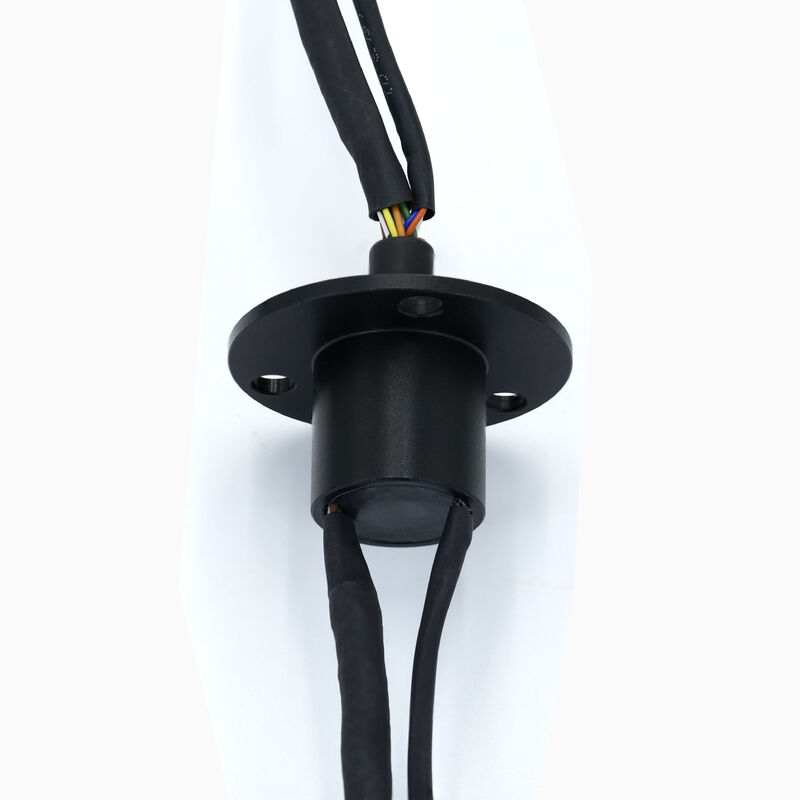

Slip Ring with 20-Million-rotation Longevity, a Dedicated Gigabit Ethernet Channel, and Minimal Torque, Delivering a Persistent and Stable Rotating Connection for High-data-rate Applications
10M+ Rotation Precision Ethernet Slip Ring
| Features | Applications |
|
• Compliant with 1 Group 1000BaseT Ethernet |
• High-End Industrial Robots and Automation Equipment |
|
• Low torque available for high-precision, vibration-sensitive equipment |
• Rotating Structures in Confined Spaces and High- Temperature Environments |
|
• Wide temperature range |
• Precision Test and Measurement Turntables |
|
• Total Rings:15 |
• Medical Imaging Equipment |
|
• Voltage: 220VDC |
• Specialized Industrial Machinery |
| Model | Gbit Ethernet | Signal Channels |
OD x L inch(mm) |
Circuits | Voltage | Total Rings |
| PSR-C16-6S1G-02 | 1 | × |
0.87″ x 1.1″ (22 x 28) |
2A | 220VDC | 15 |
| Specifications | ||
| Network Signal | Signal | |
| Insulation Resistance | 500MΩ@100VDC | 500MΩ@300VDC |
| Dielectric Strength | 100VAC@50Hz | 300VAC@50Hz |
| Electrical Noise | Max. 10mΩ | |
| Torque | Max. 26gf.cm | |
| Speed | 250rpm | |
| Lifetime | 20 million revolutions | |
| Working Temperature | -49℉ to +212℉(-45℃ to +100℃) | |
| Relative Humidity | 85% | |
| Protection Level | IP51 | |
| Contact Material | Precious Metal | |
| Housing Material | Aluminum Alloy | |
| Lead Wire | AWG26# Teflon Wire | |
