Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-M18-2P4S1E-SDI

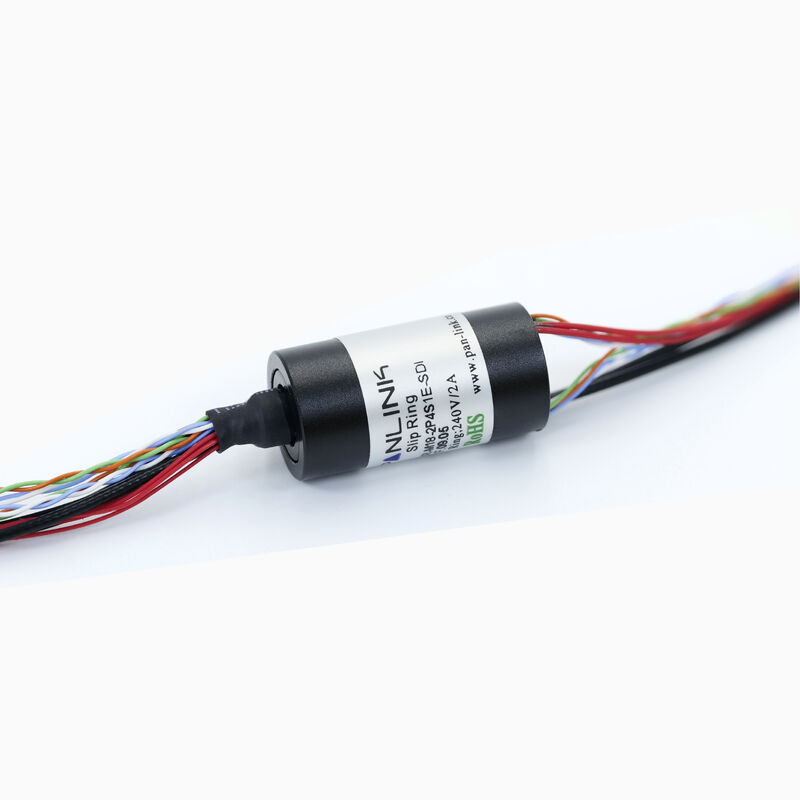

100Mbps Ethernet Slip Ring Combining HD-SDI And RS422 and Achieving Interference-free Propagation
| Features | Applications |
|
• Ethernet connections: 100M Ethernet |
• High definition video surveillance |
|
• Video connections: RS422 |
• Industrial automatic control |
|

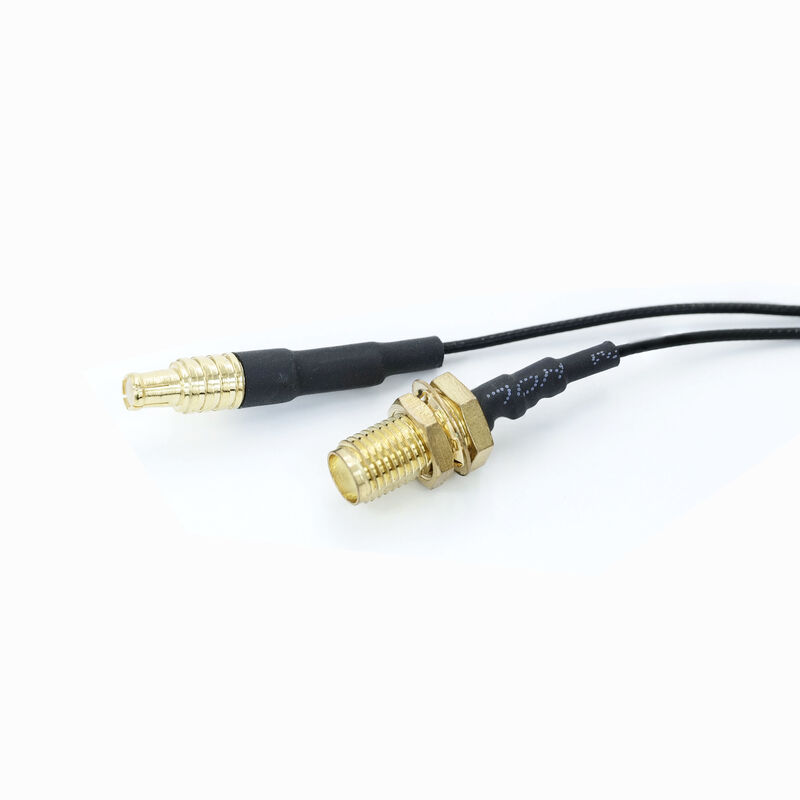

• Connectors: SMA, MCX-J |
• Motion simulator |
|
• Interference-free Propagation |
• Spraying equipment |
| Model | 100BaseT Ethernet | Signal Channels |
OD x L inch(mm) |
Circuits | Voltage |
| PSR-M18-2P4S1E-SDI | 1 | (1x)HD-SDI, (1x)RS422 |
0.49″ x 0.94″ (12.4 x 24) |
1A, 2A | 24VAC/VDC |
| Specifications | |
| Insulation Resistance | 50MΩ@300VDC |
| Electrical Noise | Max. 15mΩ |
| Dielectric Strength | 200VAC@50Hz |
| Speed | 100rpm |
| Lifetime | 5 million revolutions |
| Torque | Max. 22 gf.cm |
| Working Temperature | -40℉ to +176℉(-40℃ to +80℃) |
| Storage Temperature | -40℉ to +176℉(-40℃ to +80℃) |
| Protection Level | IP51 |
| Relative Humidity | 60±3% |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Lead Wire | Teflon Wire |
