Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C36-28S-G-LT-IP64-AWG26

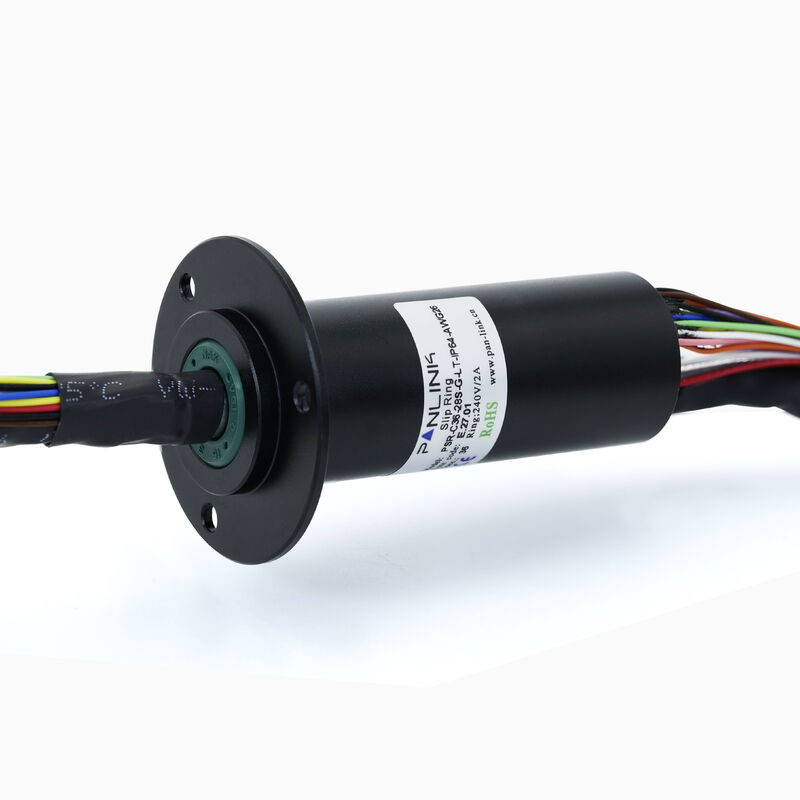

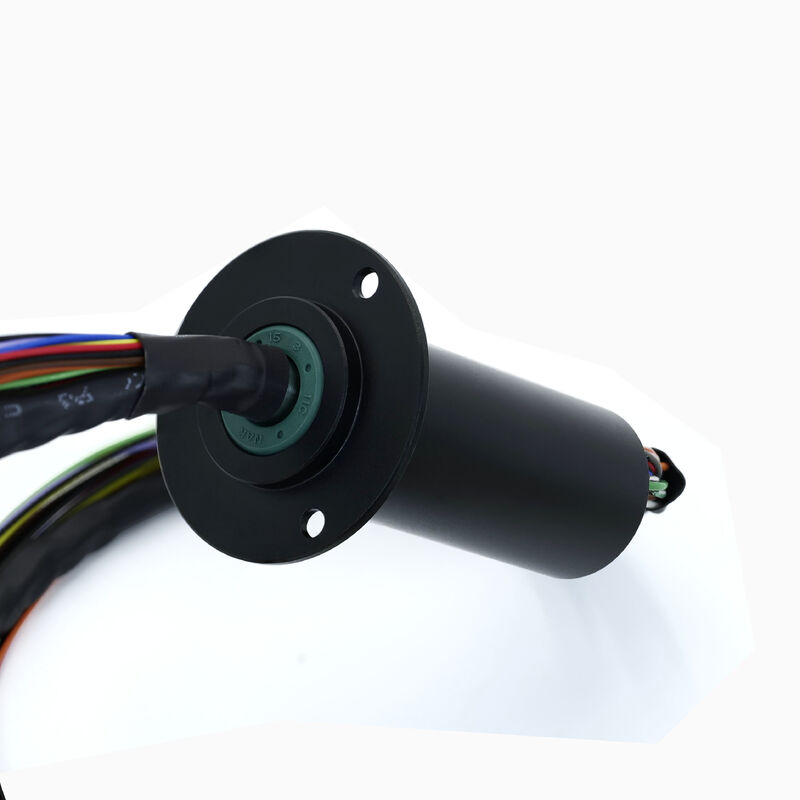

• All-Terrain Industrial-Grade High-Reliability Slip Ring with Wide-Temp & Long Life, Integrated Gigabit Ethernet & 28 Power
| Features | Applications |
|
• Compliant with 1 Group 1000BaseT |
• High-End Military and Aerospace Equipment |
|
• Long lifetime |
• Precision Test and Measurement Instruments |
|
• Kabel: CAT6 RJ45 Stecker |
• High-End Medical Equipment |
|
• Total Rings:36 |
• Special Vehicles and Marine Vessels |
|
• Voltage: 240VAC |
• High-Performance Industrial Robots and Automation Equipment |
| Model | Gbit Ethernet |
OD x L inch(mm) |
Circuits | Voltage | Total Rings |
| PSR-C36-28S-G-LT-IP64-AWG26 | 1 |
0.87″ x 2.41″ (22 x 61.3) |
2A | 240VAC | 36 |
| Specifications | |
| Insulation Resistance | 200MΩ@500VDC |
| Electrical Noise | Max. 20mΩ |
| Dielectric Strength | 500VAC@50Hz |
| Torque | Max. 50g.cm |
| Speed | 250rpm |
| Lifetime | 10 million revolutions |
| Working Temperature | -76℉ to +176℉(-60℃ to +80℃) |
| Storage Temperature | -85℉ to +185℉(-65℃ to +85℃) |
| Relative Humidity | 95%±3(30℃+5℃) |
| Protection Level | IP64 |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Lead Wire | AWG64 Teflon Wire; CAT6 RJ45 Stecker |
