Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C24-4S2G

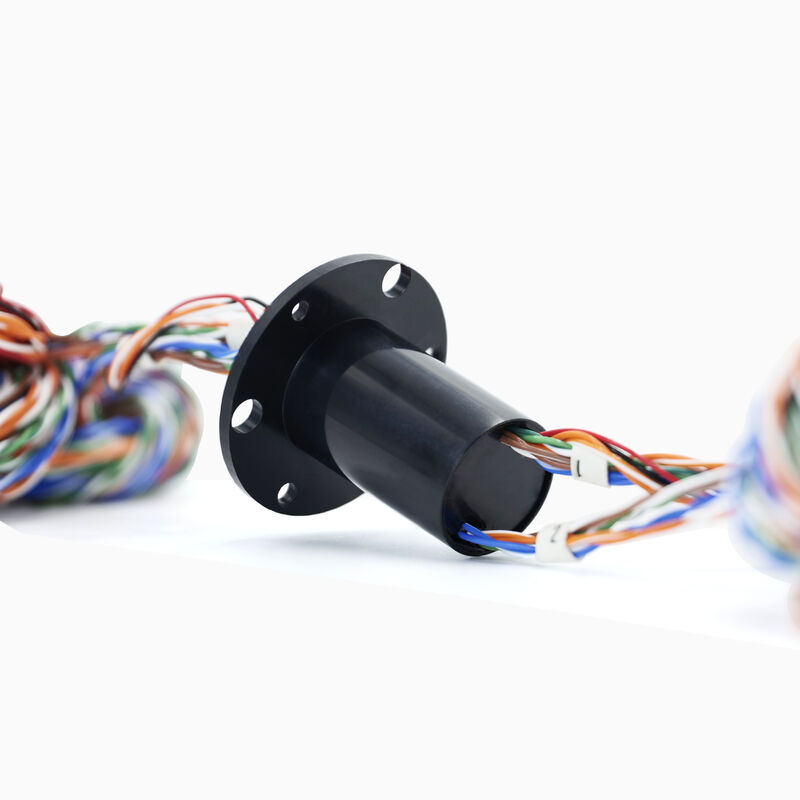

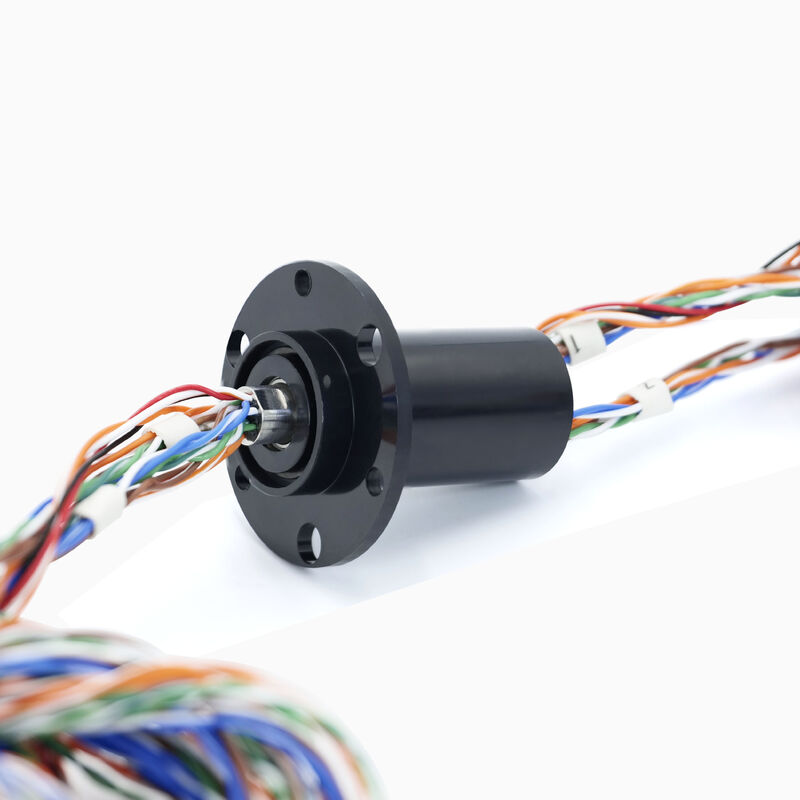

2 Channel Gigabit Ethernet Slip Ring Capable of USB Chansmission
Ethernet+USB
| Feature: | Application: |
| • 1 USB transmission | • Industrial Automation and Manufacturing |
| • 2 Channels 1000M baseT Ethernet | • Security and Video Surveillance |
| • MTTR: ≤0.5h | • Special Equipment and High-End Applications |
| • MTBF: ≥40000h | • Testing and Demonstration Equipment |
| • Length: 42.53mm |
| Model | Gbit Ethernet | Signal Channels | OD x L inch(mm) | Circuits | Voltage | Total Rings |
| PSR-C24-4S2G | 2 | (1x)USB | 0.87″ x 1.67″ (22 x 42.53) | 1A, 2A | 240VAC | 24 |
| Specification | |
| Model | PSR-C24-4S2G |
| Capsule Length | 42.53mm |
| Ethernet Connections | 2 x 1000BaseT Ethernet |
| Insulation Resistance | 500MΩ@500VDC |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 60rpm |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -40℃~+50℃ |
| Storage Temperature | -45℃~+65℃ |
| Humidity | 93% |
