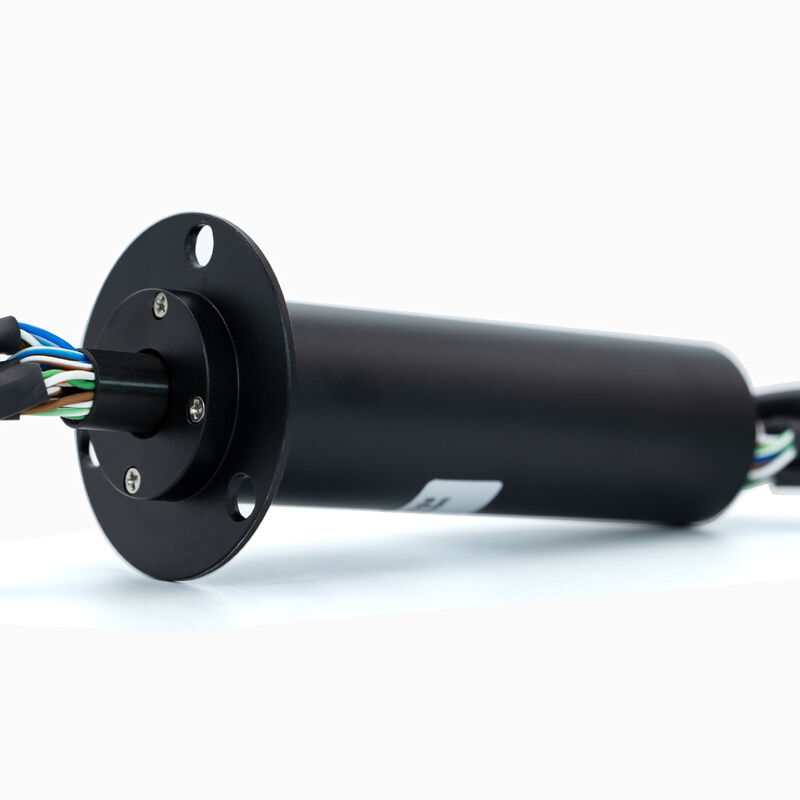

Reliable and Interference-resistant Ethernet Slip Rings Supporting Multi-protocol Hybrid Transmission
Ethernet slip rings are to provide Ethernet communication in combination with power or data connections from a stationary part to a rotating part.
Panlink developed a series of standard capsule Ethernet slip rings and through bore Ethernet slip rings based on our capsule and through bore slip rings. Utilizing high performance fiber brush contact technology and innovative processing, these Ethernet slip rings are able to provide reliable Gigabit Ethernet, video over Ethernet and high-speed data transmission.
| Main Application | Advantage |
| • CCTV IP-surveillance | • Plug-and-play Ethernet |
|
• Video over Ethernet
|
• Long lifetime and maintenance-free |
| • Motor control | • Low electrical noise and reliable transmission |
| • Pan / tilt video camera heads | • A wide variety of existing capsule and through-bore type |
| • Rotating high-definition video displays | solutions are available for selection. |
| • POE( Power-Over-Ethernet) | |
| • Camera jibs |
| Feature |
|
• Compliant with 100 BaseT Ethernet and Gigabit Ethernet
|
|
• RJ45 connector for direct plug-and-play standard
|
|
• Available with multiple Ethernet channel, power and signal combinations
|
|
• Support multiple other data protocols
|
| Capsule Ethernet Slip Ring | ||||||
| Model | Circuits(2A) | Ethernet | OD(mm) | Length(mm) | ||
| 100Mbit | Gbit | |||||
| PSE-C12-1E | 12 | 1 | 22 | |||
| PSR-C12-1G | 12 | 1 | 22 | |||
| PSR-C16-1E | 16 | 1 | 22 | |||
| PSR-C16-1G | 16 | 1 | 22 | |||
| PSR-C24-1E | 24 | 1 | 22 | |||
| PSR-C24-1G | 21 | 1 | 22 | |||
| PSR-C36-3G | 36 | 3 | 22 | |||
| PSR-C60-4G | 60 | 4 | 25.4 | |||
| Through Bore Ethernet Slip Ring | ||||||
| Model | Circuits(2A) | Ethernet |
Size(mm) |
Length(mm) | ||
| 100Mbit | 1Gbit | OD | ID | |||
| PSR-T12-1E | 1 | |||||
| PSR-T12-1G | 1 | |||||
| PSR-T25-1E | 1 | |||||
| PSR-T25-1G | 1 | |||||
| PSR-T38-1E | 1 | 99 | 38 | |||
| PSR-T38-1G | 1 | 99 | 37 | |||
| PSR-T50-1E | ||||||
| PSR-T50-1G | ||||||
| PSR-T70-1E | ||||||
| PSR-T70-1G | ||||||
| PSR-T100-1E | 99 | 38 | ||||
| PSR-T100-1G | ||||||
|
Remark: The length of the slip ring varies according to the number of Ethernet ports. Options include 100 Mbps and 1 Gbps Ethernet. |
||||||
| Specification | |
| Voltage Rating | 240VAC |
| Current Rating | 1A per circuit |
| Insulation Resistance | 1000MΩ @ 2000VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 600VDC/ 50Hz/ 60s |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 0.01N.m |
| Life Time, Min | 1 million revolutions |
| Contact Material | Gold-Gold |
| Lead Wires | 12color AWG#28 Teflon Wires |
| Housing Material | Aluminum Alloy or Engineer Plastic |
| Working Temperature | -40℃ to +80℃(-40℉ to +176℉) |
| Storage Temperature | -45℃ to +85℃(-49℉ to +185℉) |
| Shock | MIL-STD-810E |
| Protection Level | IP54 |
PSR-C12 Series Dimensions
PSR-C16 Series Dimensions
PSR-C24 Series Dimensions
PSR-C36-3G Dimensions
PSR-C60-4G Dimensions
PSR-T38 Series Dimensions
