Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-T50-5P5S-E

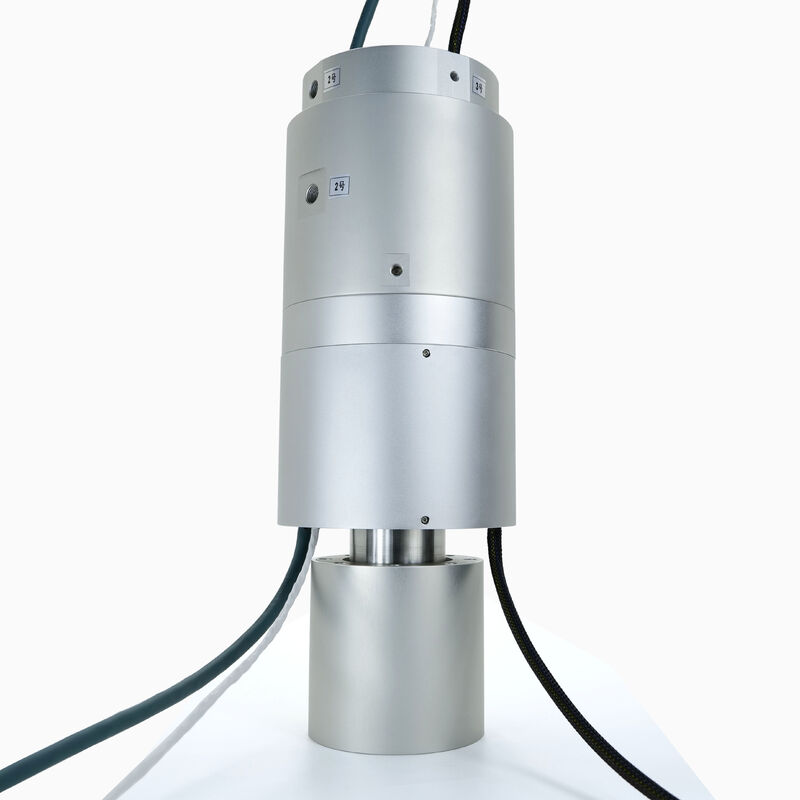

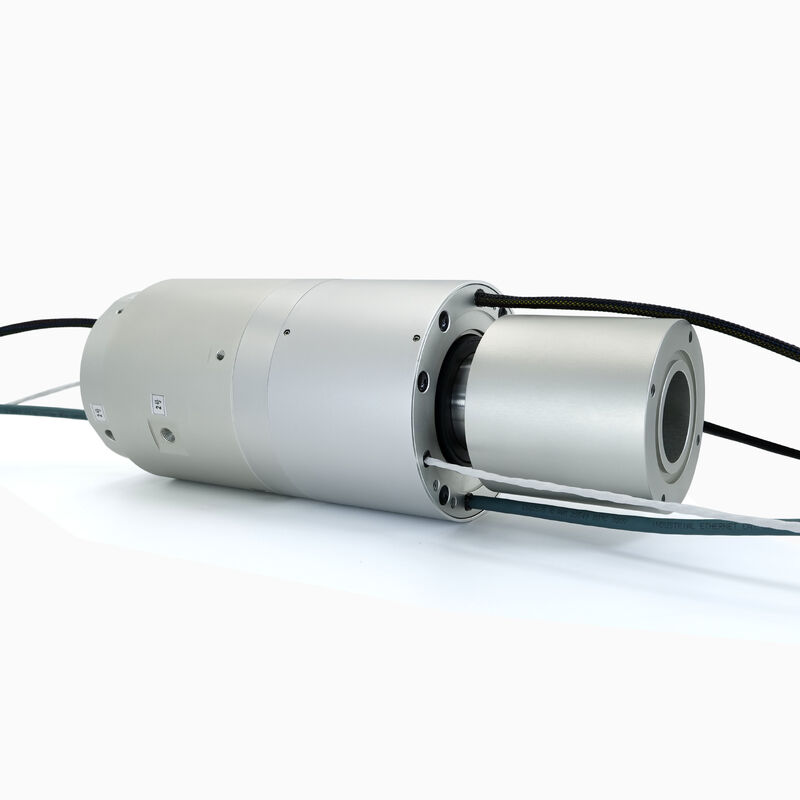

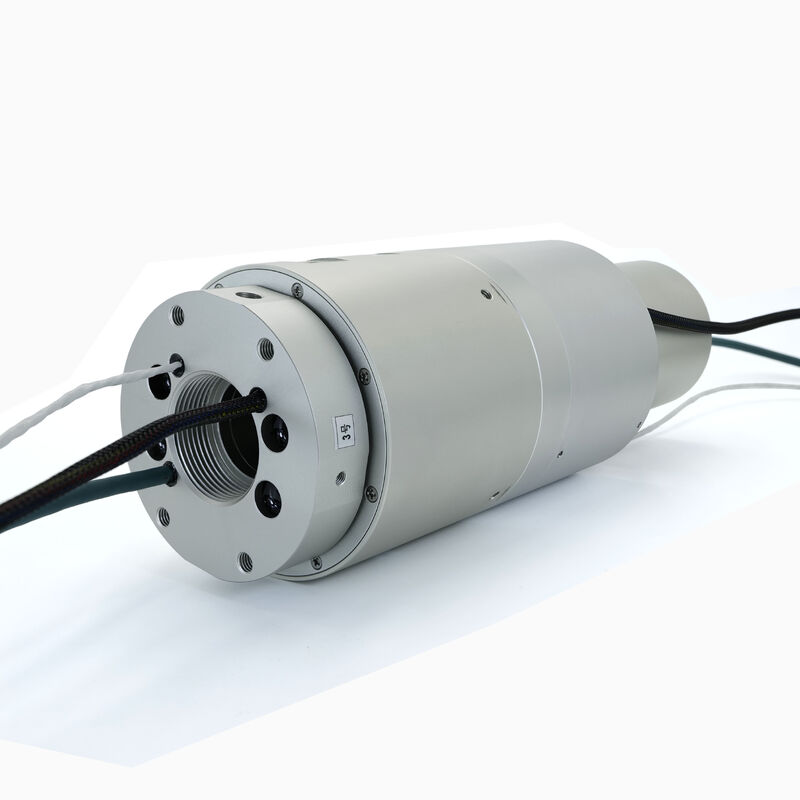

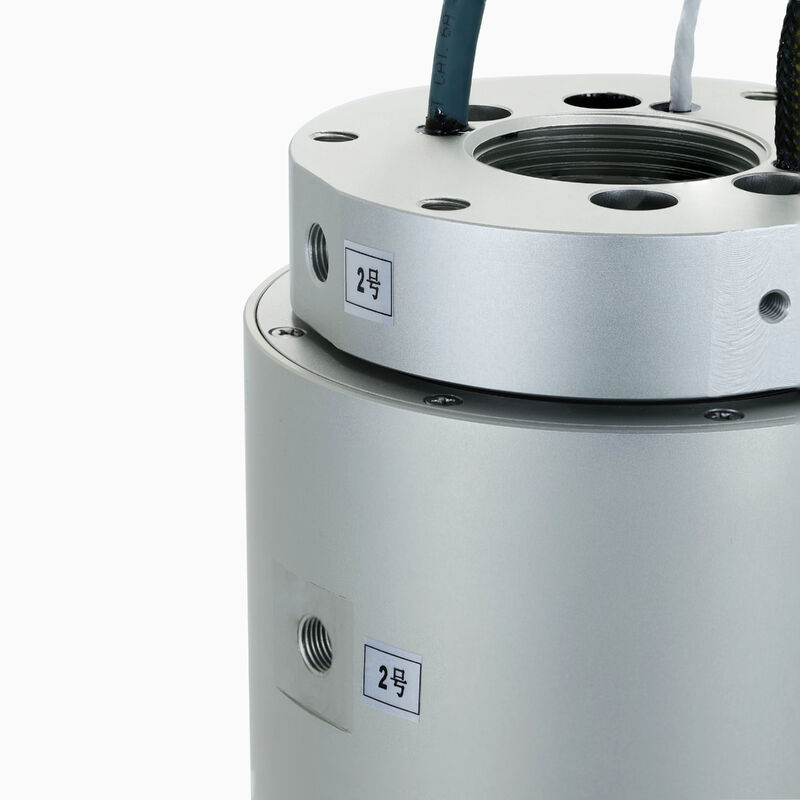

3-channel FORJ for Air, Nitrogen and Vacuum Transfer G1/8´´ and M5 with Ethernet Transmission
PSR-T50-5P5S-E
Dimensions in millimeters
Specification
| Circuits | 5 for Power Transmission, 4 for Signal Transmission, 1 for 100M Ethernet Transmission, 3 for Fluid Transmission |
| Fluid Rotary Union Specifications | |
| Max Pressure & Media | (1×) 145PSI (10bar) Air, (1×) 145PSI (10bar) Nitrogen, (1×) -10.15PSI (-0.7bar) Vacuum |
| Connector Size | G1/8´´(Air, Nitrogen), M5(Vacuum) |
| Housing Material | Aluminum Alloy |
| Operating Temperature | -22℉ to +176℉ (-30℃ to +80℃) |
| Electrical Specifications | |
| Voltage Rating | 24VDC/VAC |
| Current Rating | 1A, 10A |
| Insulation Resistance | Max 500MΩ @ 500VDC |
| Dielectric Noise | 500VAC @ 50Hz, 60s |
| Electric Noise | Max 40mΩ |
| Lead Cable | Teflon Wire, CAT6A |
| Mechanical Specifications | |
| Rotating Speed | 250rpm |
| Operating Temperature | -22℉ to +176℉ (-30℃ to +80℃) |
| Storage Temperature | -22℉ to +185℉ (-30℃ to +85℃) |
| Operating Humidity | 0~95%RH |
| Torque | 15.0 N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
