Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-F15-24&RC2

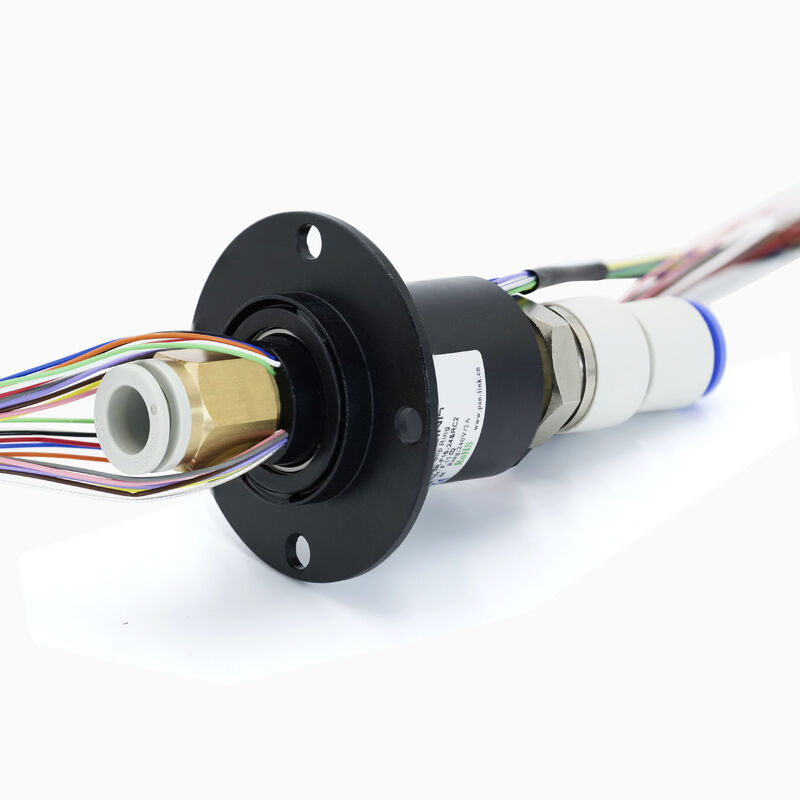

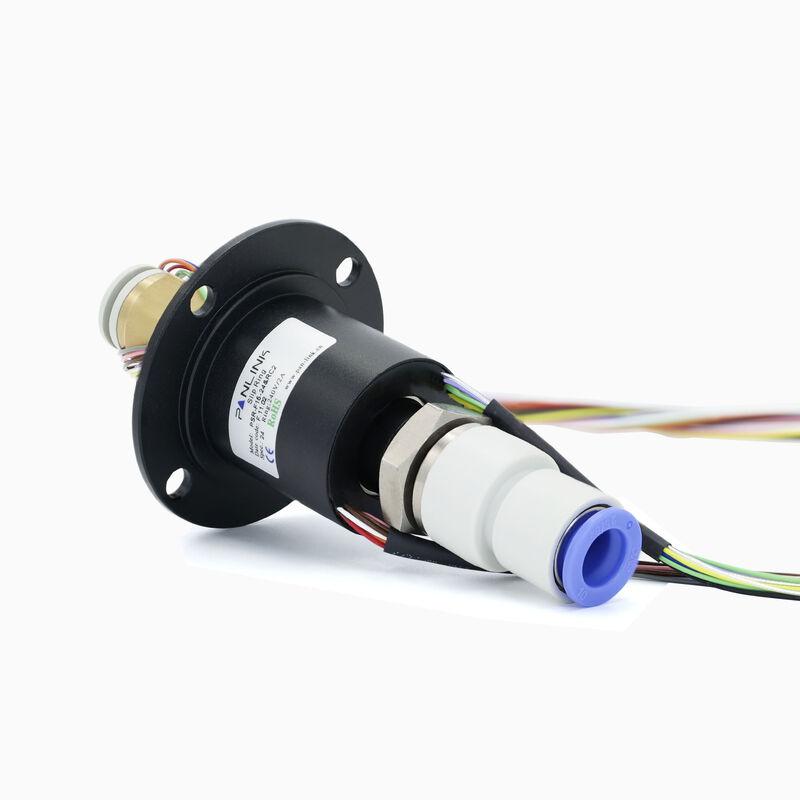

24 Circuits Slip Ring integrated with a threaded tube fitting for Electrical Signal and Fluid Transmission
Fluid + Electrical Solutions for High-Precision Instruments
| Feature | Application |
| • Media Types: Air | • Assembly Robot Wrist |
| • Operating Pressure Range: -100kpa to 1Mpa | • Dynamic Performance Simulation Test Bench |
| • Proof Pressure: 3MPa | • Packaging, Filling, and Medical Equipment |
| • Tube OD: 10mm | |
| • Circuits: 24 x Signal(2A) |
| Specification | |
| Model | PSR-F15-24&RC2 |
| Circuit | 24 x Signal(2A) |
| Voltage | 220vac |
| Insulation Resistance | 500MΩ@500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 100rpm |
| Torque | ≤0.4N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -20℃~+70℃ |
| Storage Temperature | -25℃~+80℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP54 |
| Lifetime | 50 million revolutions |
| Rotary Joint Specification | |
| Channel | 1 |
| Min Port Size | 7 |
| Operating Pressure Range | -100kpa to 1Mpa |
| Proof Pressure | 3MPa |
| Torque | 0.02N.M |
| Media | Air |
| Temperature | -25℃~+80℃ |
| Body | BPT |
