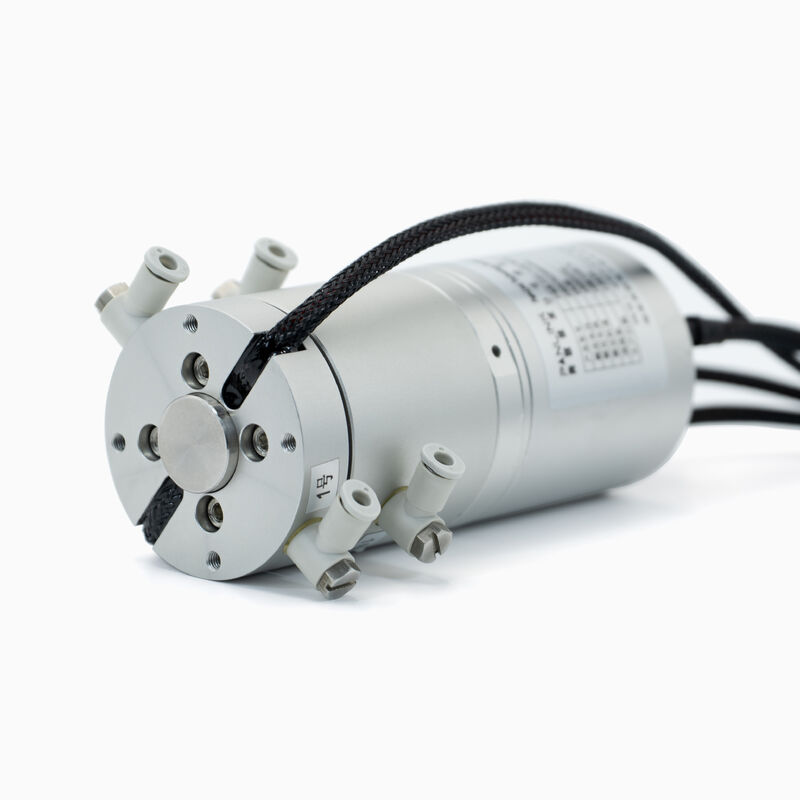

Pneumatic Rotary Joint
Available in single and multi-channel passage models, the Panlink air rotary joints are designed for air, gas and vacuum use and are ideal for a number of automation and robotic applications. These compact rotary joints feature independent flow passages capable of transferring different types of media simultaneously.
Need to combine fluid with electrical power, signal and/or data transfer? No problem. Panlink hybrid rotary joints are designed to integrate directly with our standard electrical slip rings.
| Features | Typical Applications |
| • Transmit Pneumatic, such as steam, compressed air.... | • Automation |
| • Can combine to transmit power and signals | • Medical technology |
| • Pneumatic passage can be customized | • Packaging industry |
| • Standard ports optional | • Machine tools |
| • Support various pipes of 4mm,6mm,8m,10mm,12mm,15mm,etc | • Food processing |
| • More specification can be customized: port size, gas passage no., electrical channel no., etc |
| Model | Passages | Port Size |
Pipe Size (mm) |
Overall Length (mm) |
Housing Diameter (mm) |
| PSR-T12S-8P1G-1RC | 1 | RC1/8′′ | 10 | 88.2 | 75 |
| PSR-T25S-3P1E-1RC | 1 | 8 | 82 | 105 | |
| PSR-F20-10S-RC2 | 2 | 4-M5 | 4 | 125.5 | 55 |
| PSR-C12-7-RC2 | 2 | 4-M5 | 4 | 87 | 75 |
| PSR-C36-6P2G-4Rc3 | 4 | RC3/8′′ | 147 | 86 | |
| PSR-C44-4RC1 | 4 | RC1/8′′ | 8 | 136 | 125 |
| PSR-T25-22P3G-4RC | 4 |
G1/2′′(1~2) G3/8′′(3~4) |
16(1~2) 12(3~4) |
408 | 135 |
| PRG-T0-16RC | 16 | 16-M5 | 6 | 161.5 | 64 |
| Specification | |
| Model | PSR-T12S-8P1G-1RC |
| Circuit | 17 |
| Voltage | 24VDC |
| Current |
Power: 8x5A 1Gbit Ethernet: 8x2A |
| Insulation Resistance | 500MΩ@500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | ≤0.5N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -20℃~+70℃ |
| Storage Temperature | -25℃~+75℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP51 |
| Rotary Joint Specification | |
| Channel | 1 |
| Pressure | 0.6Mpa |
| Torque | T≤0.5N.M |
| Media | Compressed Air |
| Temperature | -25℃~+80℃ |
| Material | Aluminum Alloy |
| Specification | |
| Model | PSR-T25S-3P1E-1RC |
| Circuit | 8 |
| Voltage | 220~240VAC |
| Current |
Power: 3x5A 100Mbit Ethernet: 4x2A |
| Insulation Resistance | 500MΩ@500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | ≤1.0N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -20℃~+70℃ |
| Storage Temperature | -25℃~+75℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP51 |
| Rotary Joint Specification | |
| Channel | 1 |
| Pressure | 0.8Mpa |
| Torque | T≤1.0N.M |
| Media | Compressed Air |
| Temperature | -20℃~+70℃ |
| Material | Aluminum Alloy |
| Specification | |
| Model | PSR-F20-10S-RC2 |
| Circuit | 10 |
| Voltage | 220VAC/24VDC |
| Current | 10x2A |
| Insulation Resistance | 200MΩ@500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | ≤1.0N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -20℃~+80℃ |
| Storage Temperature | -20℃~+85℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP51 |
| Rotary Joint Specification | |
| Channel | 2 |
| Pressure | 1.0Mpa |
| Torque | T≤1.0N.M |
| Media | Compressed Air |
| Temperature | -20℃~+80℃ |
| Specification | |
| Model | PSR-C12-7-RC2 |
| Circuit | 7 |
| Voltage | 24VDC |
| Current | 7x1A |
| Insulation Resistance | 200MΩ@500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 300VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | ≤1.0N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -20℃~+80℃ |
| Storage Temperature | -20℃~+85℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP51 |
| Rotary Joint Specification | |
| Channel | 2 |
| Pressure | 1.0Mpa |
| Torque | T≤1.0N.M |
| Media | Air |
| Temperature | -20℃~+80℃ |
| Specification | |
| Model | PSR-C36-6P2G-4Rc3 |
| Circuit | 24 |
| Voltage | 220VAC/24VDC |
| Current | 5 A/ Way |
| Insulation Resistance | 500MΩ@500VDC |
| Dynamic Resistance Variation Value | ≤10mΩ |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | ≤0.1N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -20℃~+80℃ |
| Storage Temperature | -25℃~+85℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP51 |
| Rotary Joint Specification | |
| Channel | 4 |
| Pressure | 1.0Mpa |
| Torque | T≤1.0N.M |
| Media | Air |
| Temperature | -20℃~+70℃ |
| Material | Aluminum Alloy |
| Specification | |
| Model | PSR-C44-4RC1 |
| Circuit | 44 |
| Voltage | 380VAC/24VDC |
| Current | 2 A/Way |
| Insulation Resistance | 200MΩ@500VDC |
| Electrical Noise | 20mΩ max |
| Dielectric Strength | 200VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | ≤1.0N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -20℃~+80℃ |
| Storage Temperature | -20℃~+85℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP51 |
| Rotary Joint Specification | |
| Channel | 4 |
| Pressure | 0.6Mpa |
| Torque | T≤1.0N.M |
| Media | Compressed Air |
| Temperature | -20℃~+80℃ |
| Specification | |
| Model | PSR-T25-22P3G-4RC |
| Circuit | 49 |
| Voltage | 380VAC |
| Current | 20 A/Way |
| Insulation Resistance | 500MΩ@1000VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | ≤1.0N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -30℃~+80℃ |
| Storage Temperature | -30℃~+85℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP51 |
| Rotary Joint Specification | |
| Channel | 4 |
| Pressure | 1.0Mpa |
| Torque | T≤1.0N.M |
| Media | Compressed Air |
| Temperature | -30℃~+80℃ |
| Rotary Joint Specification | |
| Model | PRG-T0-16RC |
| Channel | 16 |
| Pressure | -100KPa~<1MPa |
| Torque | 10N.M |
| Media | Air & Nitrogen & Vacuum |
| Temperature | -20℃~+80℃ |
| Speed | 100rpm |
| Working Temperature | -20℃~+80℃ |
| Lifetime | 5 million revolutions |
