Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C12-7-RC2

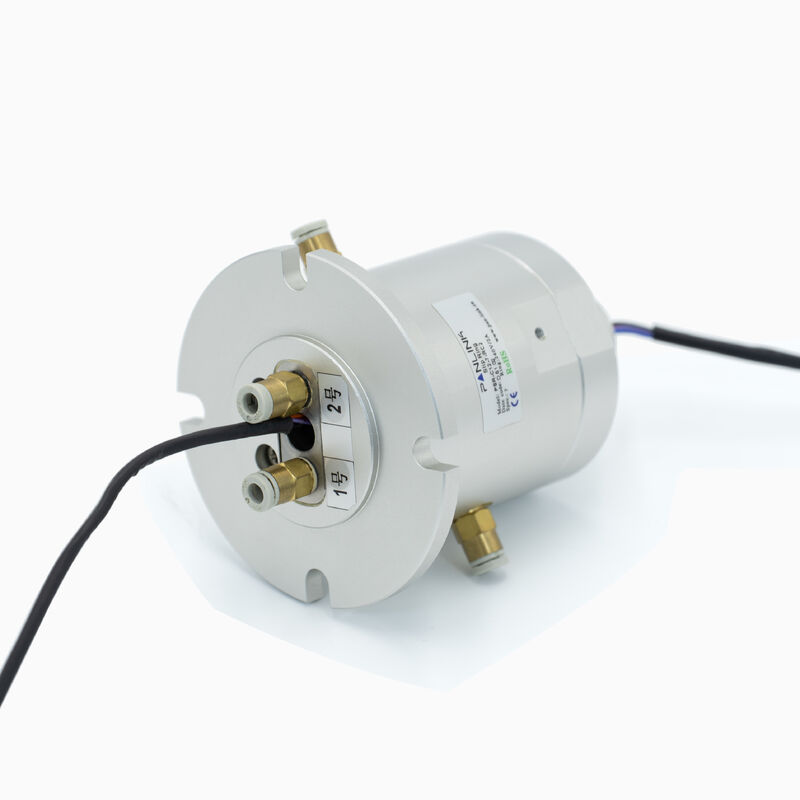

Synchronized rotary transmission of 7 power channels + 2 pneumatic channels within an extremely confined space
PSR-C12-7-RC2
Dimensions in millimeters
Specification
| Circuits | 7 for Power Transmission, 2 for Fluid Transmission |
|---|---|
| Fluid Rotary Union Specifications | |
| Max Pressure & Media | 145PSI (10bar), Air |
| Connector Size | M5 |
| Torque | 1N•m |
| Electrical Specifications | |
| Voltage Rating | 24VDC |
| Current Rating | 1A |
| Insulation Resistance | Max 200MΩ @ 500VDC |
| Dielectric Noise | 300VDC @ 50Hz, 60s |
| Electric Noise | Max 40mΩ |
| Lead Cable | AWG28 Teflon |
| Mechanical Specifications | |
| Rotating Speed | 300rpm |
| Operating Temperature | -4℉ to +176℉ (-20℃ to +80℃) |
| Storage Temperature | -4℉ to +185℉ (-20℃ to +85℃) |
| Operating Humidity | 0~95%RH |
| Torque | 1.0 N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
