Lugar de origen:
Porcelana
Nombre de la marca:
Panlink
Certificación:
ISO 9001: 2015, CE
Número de modelo:
PSR-T12S-10

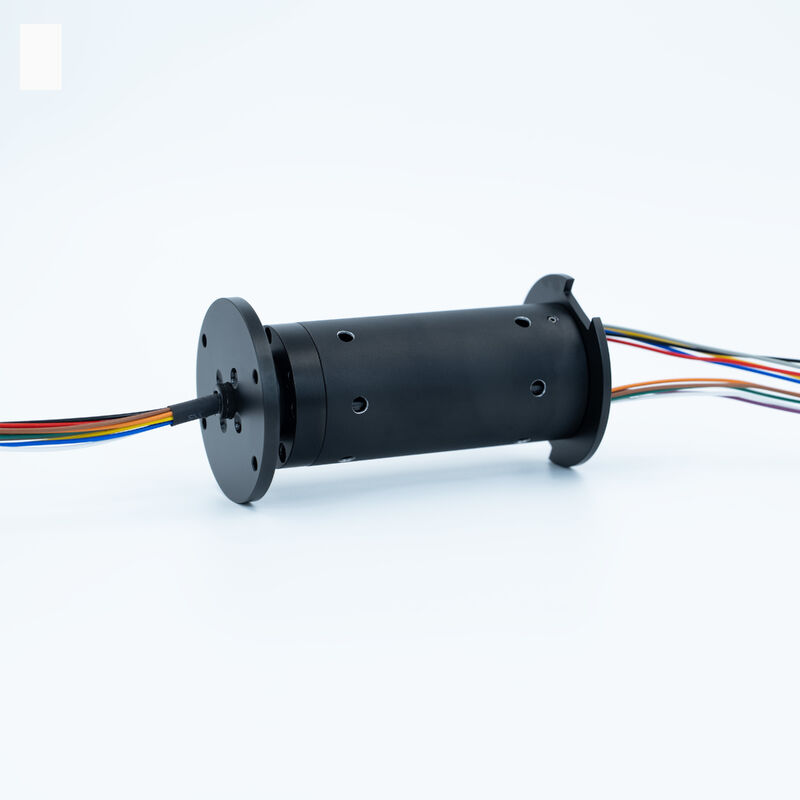

10-channel Power Slip Ring for downhole: 180°C, 100MPa, oil-immersed
PSR-T12S-10
Drawing (Dimension in Millimeters)
Specification
| Channels | 10 for Power Transmission |
|---|---|
| Electrical Specifications | |
| Voltage Rating | 300VAC/VDC |
| Current Rating | 3A |
| Insulation Resistance | Max 1000MΩ @ 1000VDC |
| Dielectric Noise | 800VAC @ 50Hz, 60s |
| Electric Noise | Max 10mΩ |
| Lead Cable | Teflon Wire |
| Mechanical Specifications | |
| Rotating Speed | 100rpm |
| Operating Temperature | -40℉ to +356℉ (-40℃ to +180℃) |
| Storage Temperature | -40℉ to +356℉ (-40℃ to +180℃) |
| Operating Humidity | 0~95%RH |
| Torque | 1.0N•m |
| Oil Immersion Test | Immersion in 100# Silicone Oil at 175 °C |
| Pressure | 100MPa |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP00(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
