Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-T25-3FIN
Document:

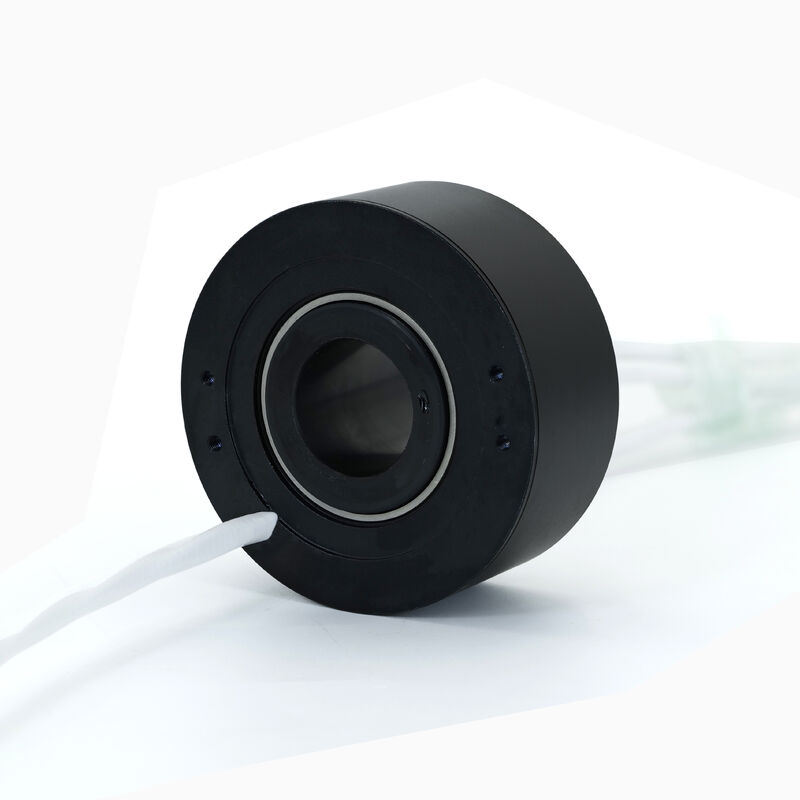

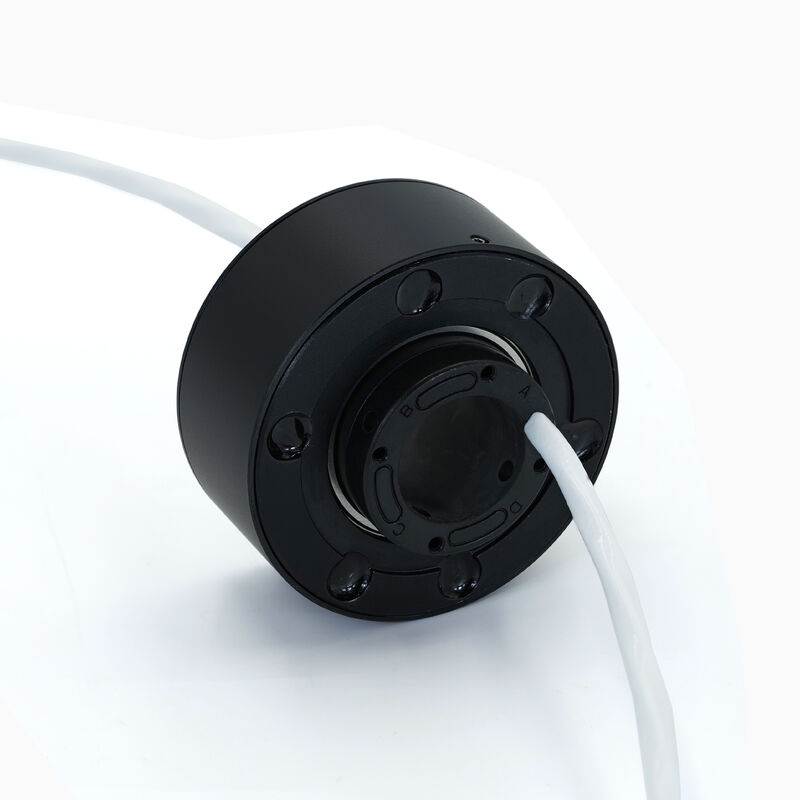

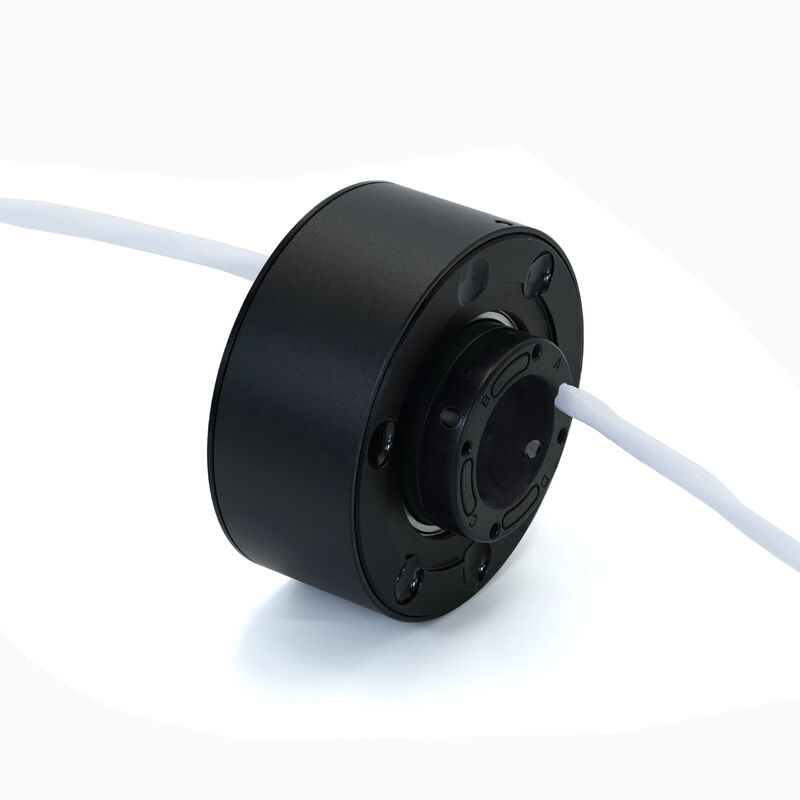

3-channel 10A Through Bore Slip Ring with AFPF Cable and ID 1inch
PSR-T25-3FIN
Dimensions in millimeters
| Channels | 3 for Power Transmission |
| Electrical Specifications | |
| Voltage Rating | 380VAC |
| Current Rating | 10A |
| Insulation Resistance | Max 500MΩ @ 500VDC |
| Dielectric Noise | 3000VAC @ 50Hz, 60s |
| Electric Noise | Max 40mΩ |
| Lead Cable | AFPF Cable |
| Mechanical Specifications | |
| Working Life | 30 million revolutions@10A, 25℃, 100rpm |
| Rotating Speed | 300rpm |
| Operating Temperature | -40℉ to +176℉ (-40℃ to +80℃) |
| Storage Temperature | -49℉ to +185℉ (-45℃ to +85℃) |
| Operating Humidity | 0~95%RH |
| Torque | 0.2N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP65(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
