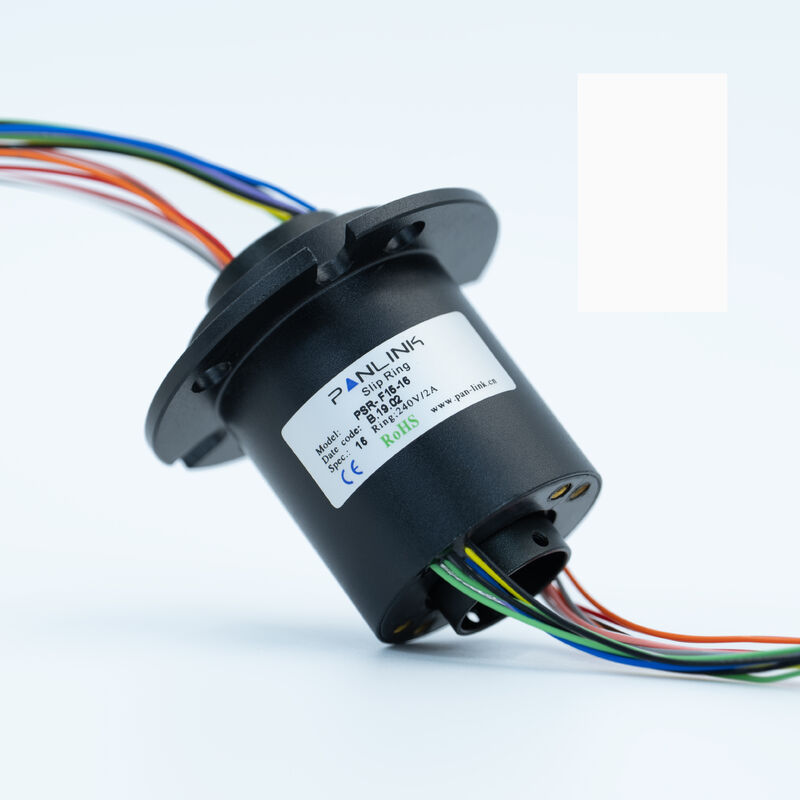

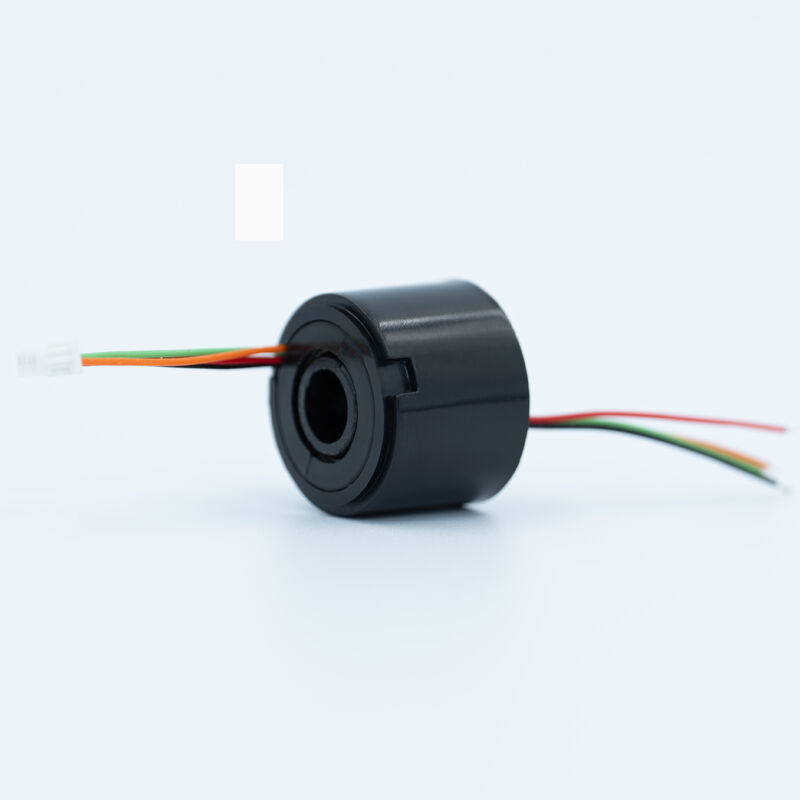

Miniature Through Bore Slip Ring
Through bore slip rings are slip rings with a hollow shaft in the center. This series offers a free inner space for either connecting the rotor to a rotating shaft of the customer machine or for leading through pipes or cables not affected from rotation. The central through-bore can be seamlessly integrated with a FORJ or coaxial rotary joint, offering a comprehensive system solution.
Panlink hollow shaft slip ring are available with inner diameters from 3mm up to 190mm. Larger diameter or higher protection solutions can be customized. The through bore slip rings use the most advanced fiber brush technology and precious metal multi-contacting, they offer low electrical noise, low contact pressure for long lifetime and they are maintenance free. We offer standardized & modularized design and fully customizable products according to the special requirements of customers in different applications.
|
Main Application |
Feature |
| • Military Devices | • 3mm to 190mm through bore optional |
| • Medical Equipment | • Up to 800 circuits |
| • Wind Turbines | • Compatible with various data protocols |
| • Robotics | • Capable of handling high current or high-power circuits |
| • Radar Antennas | • Flexible combination of power and signal transfer |
| • Packaging Machines | • Standard collar mounting or custom flange mounting optional |
| Model | Rings |
Current Rating (amps) |
Voltage Rating (VAC) |
Size (mm) |
Bore (mm) |
Speed (rpm) |
|||||
| 2 | 5 | 10 | 120 | 240 | 380 | OD | L | ID | |||
| PSR-F3-36-SDI | 36 | × | × | 22 | 70 | 9 | 300 | ||||
| PSR-F7-4 | 4 | × | × | 24.8 | 64 | 11.8 | 300 | ||||
| PSR-F7-6 | 6 | × | × | 24.8 | 19.3 | 7 | 300 | ||||
| PSR-F7-12 | 12 | × | × | 24.8 | 19.3 | 7 | 300 | ||||
| PSR-F12-6 | 6 | × | × | 32.8 | 41.7 | 15 | 300 | ||||
| PSR-F15-6D | 6 | × | × | 32.8 | 26.8 | 13 | 300 | ||||
| PSR-F15-12 | 12 | × | × | 32.8 | 41.7 | 15 | 300 | ||||
| PSR-F15-16 | 16 | × | × | 32.8 | 41.7 | 15 | 300 | ||||
| PSR-F15-24 | 24 | × | × | 32.8 | 41.7 | 15 | 300 | ||||
| Remark: More circuits, speed, higher current/ voltage and higher protection can be customized. | |||||||||||
| Specification | |
| Voltage Rating | 120VAC/ 240VAV |
| Current Rating | 2A/ 5A/ 10A/ 15A |
| Insulation Resistance | 500MΩ @ 500VDC |
| Electrical Noise | 40 mΩ max |
| Dielectric Strength | 500VAC @ 50Hz |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 0.05N.m @ room temperature |
| Life Time, Min | 50 million revolutions |
| Contact Material | Precious metal |
| Lead Wires | 12color #28 AWG Teflon Wires |
| Housing Material | Aluminum Alloy or Engineering Plastics |
| Working Temperature | -40℃ to +80℃ |
| Storage Temperature | -45℃ to +85℃ |
| Relative Humidity, Max | 95% |
| Protection Level | IP54 |
PSR-F3-36-SDI Dimensions
PSR-F7-4 Dimensions
PSR-F7-6/ PSR-F7-12 Dimensions
PSR-F15-6D Dimensions
PSR-F15-12 Dimensions
PSR-F15-24 Dimensions
