Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
LTTS105STY

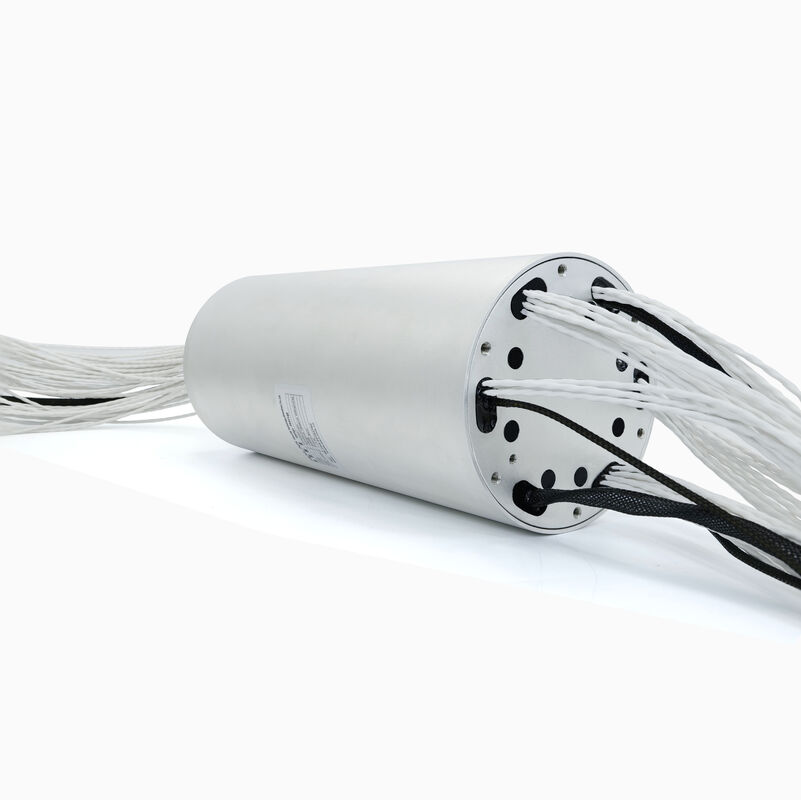

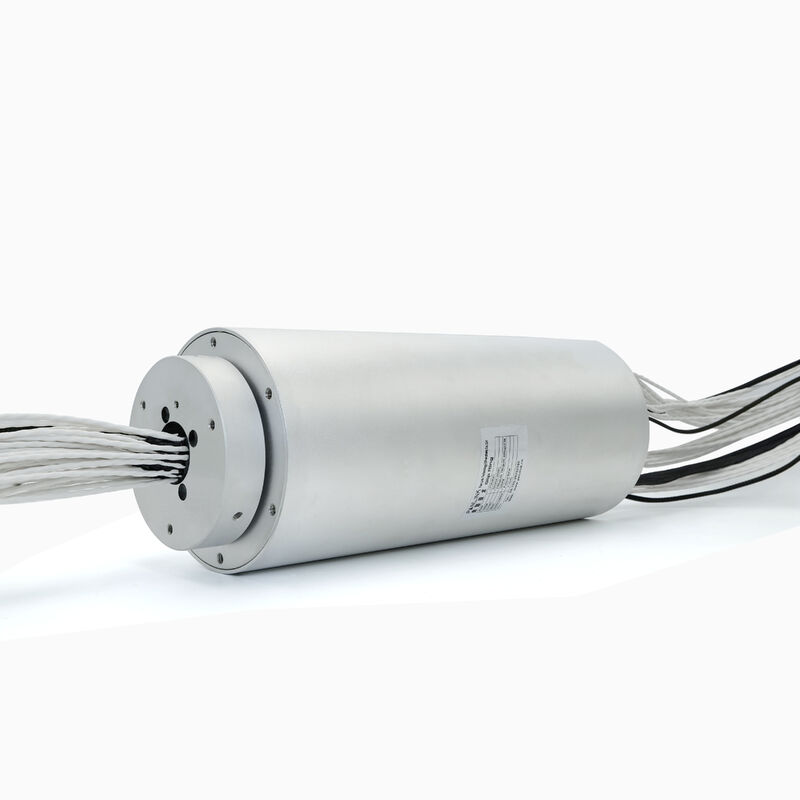

111-Circuit Hybrid Slip Ring (18xPower + 93xSignal, 4 A max) Engineered for High-Signal-Density Industrial, Military and High-End Automation Applications
| Features | Applications |
|
• High-Density Signaling: 93 channels for extensive data, control, |
• Radar antenna pedestal |
| and sensor transmission. |
• Turret system |
|
• Superior Signal Integrity: low contact resistance (40mΩ). |
• Port crane / marine crane |
| • Flexible Power Distribution: Dedicated circuits for components |
• Large rotary kiln / converter |
|
with varying power needs. |
• CMM |
|
• Rugged Design: Wide operating temperature range and IP54 protection. |
• Large-scale mine-clearance / EOD robot |
| Model |
Bore DIA inch(mm) |
Size: OD x L inch (mm) |
Circuits | Voltage |
Speed (rpm) |
|
| LTTS105STY | / |
5.12″ x 12.8″ (130 x 325) |
18×power 93×signal |
500VDC/50VDC | 30 | |
| Specifications | ||||||
| Circuits | 18×power; 93×signal | |||||
| Insulation Resistance | 100MΩ@500VDC | |||||
| Electrical Noise | Max. 40mΩ | |||||
| Dielectric Strength | 1000VAC@50Hz,60s | |||||
| Torque | Max. 2.0 N.M | |||||
| Working Temperature | -4℉~+131℉(-20℃~+55℃) | |||||
| Storage Temperature | -35℉~+167℉(-25℃~+75℃) | |||||
| Relative Humidity | 95±3%(30℃+5℃) | |||||
| Protection Level | IP54 | |||||
| Contact Material | Precious Metal | |||||
| Housing Material | Aluminum Alloy | |||||
