Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-PS Series

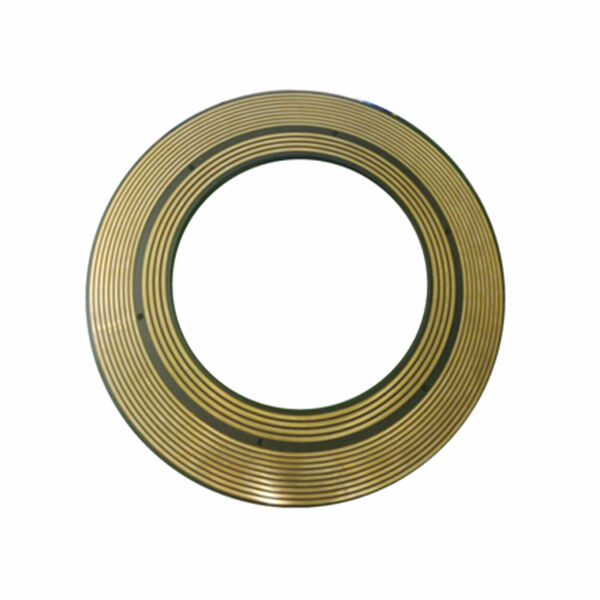

Solid Copper Type Pancake Slip Ring
Solid copper type pancake slip rings are vacuum molded from epoxy resin, offering a robust configuration. They are available in a wide range of sizes, from small to very large, and are commonly used in applications such as CT scanners, radar pedestals, and processing machinery.
In applications with extremely limited height, both sides of the ring part can be vacuum molded to provide double power and signal rings for the system. Additionally, multiple platter slip rings can be used in the same system to meet diverse requirements.
| Feature | |
| • Gold plated PCB type ring & fiber brushes | • Outer diameter 20~300mm |
| • 0~48 ways | • Voltage 240VAC |
| • Max speed 200RPM | • Transfer both signal and power |
| • Max 10A per way | • Double-sided rings design available for thinner thickness |
| • Inner diameter 0~250mm |
| Model | ID(mm) | OD(mm) | Thickness(mm) | Ways |
| PSR-PS20-4 | 20 | 84 | 14 | 4 |
| PSR-PS30-4 | 30 | 94 | 14 | 4 |
| PSR-PS50-6 | 50 | 156 | 14 | 6 |
| PSR-PS70-12 | 70 | 182 | 14 | 12 |
| PSR-PS82-14 | 82 | 204 | 14 | 14 |
| PSR-PSAB-CD |
AB (customized) |
ID+40+way*6 | 14 |
CD (customized) |
| Specification | |
| Voltage Rating | 20VDC~380VAC |
| High Pot | 1000VAC |
| Current Rating | 2A |
| Insulation Resistance | 1000MΩ @ 500VDC |
| Electric Noise | 20mΩ |
| Dielectric Strength | 500VAC @ 50Hz |
| Contact Material | Gold-Gold |
| Operating Speed | 200rpm |
| Working Temperature | -40℃~+80℃ |
| Torque | ＜5 g.cm/ way |
| Rotar/ Stator Connection | Customized(leads or connector) |
| Protection Level | IP54 (IP65 Optional) |
Dimensions
