Customizable PCB Type Pancake Slip Rings Supporting Multi-Channel Hybrid Transmission

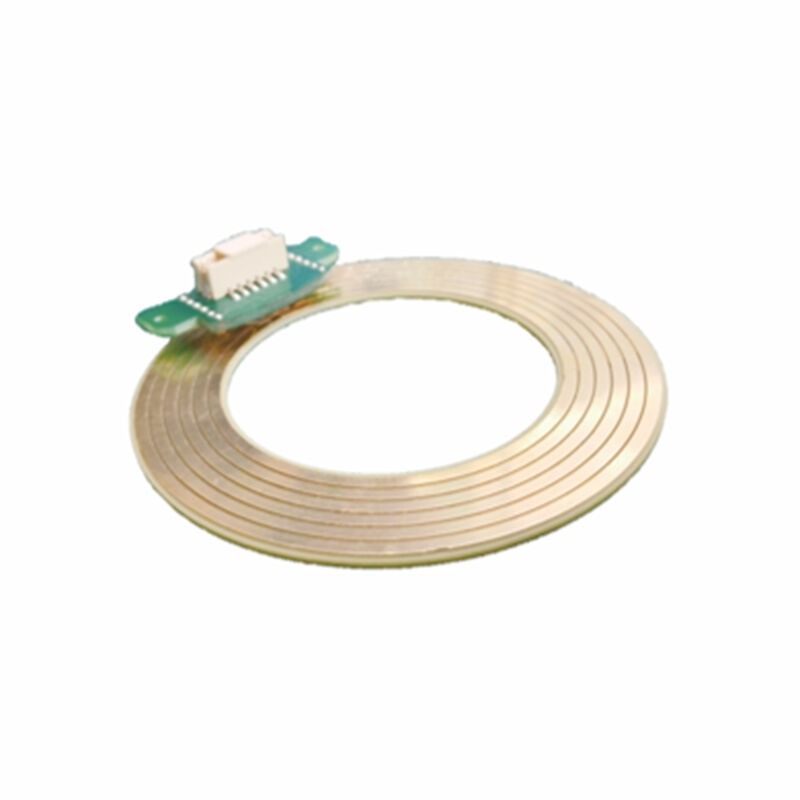

PCB Type Pancake Slip Ring
PCB type pancake slip rings are constructed with a PCB-based ring and a matching brush block. They utilize the existing bearing system to achieve minimal installation height and offer a significant cost advantage in mass production.
These slip rings are ideal for power and signal transmission in mechanical systems with limited thickness requirements, such as rotating tables and seat positions. Panlink offers two standard series of PCB type units:
• PCB Type Pancake Slip Rings for Signal Transmission: Each ring is rated at 2A max, specifically designed for signal transfer or low-current applications. These units provide a smaller outer diameter and installation height.
• PCB Type Pancake Slip Rings for Power Transmission: Each ring is rated at 10A max and can transfer both power and signal. Rings can be designed on either the single side or double-sided of the PCB to achieve a thinner profile.
|
• PCB Type Pancake Slip Rings for Signal Transmission
|
|
| • Gold plated PCB type ring |  |
| • 0~48 ways | |
| • Max speed 300RPM | |
| • Max 2A per way | |
| • Inner diameter 0~250mm | |
| • Outer diameter 20~300mm | |
| • Voltage 60VDC | |
| Model | ID(mm) | OD(mm) | Height(mm) | Ways |
| PSR-PP20-4 | 20 | 41 | 5.5 | 4 |
| PSR-PP30-4 | 30 | 51 | 5.5 | 4 |
| PSR-PP50-6 | 50 | 80 | 5.5 | 6 |
| PSR-PP70-12 | 70 | 127 | 5.5 | 12 |
| PSR-PP100-12 | 100 | 157 | 5.5 | 12 |
| PSR-PPAB-CD |
AB (customized) |
ID+3+way*4.5 | 5.5 |
CD (customized) |
| Specification | |
| Voltage Rating | 60VDC |
| Current Rating | 2A |
| Insulation Resistance | 20MΩ @ 500VDC |
| Electric Noise | 20mΩ |
| Dielectric Strength | 500VAC @ 50Hz |
| Contact Material | Gold-Gold |
| Operating Speed | 200rpm |
| Working Temperature | -30℃~+80℃ |
| Torque | ＜2 g.cm/ way |
| Rotar/ Stator Connection | Customized(leads or connector) |
| Protection Level | IP00 |
Dimensions
|
• PCB Type Pancake Slip Rings for Power Transmission
|
|
| • 0~48 ways | |
| • Max speed 200RPM | |
| • Max 10A per way | |
| • Inner diameter 0~250mm | |
| • Outer diameter 20~300mm | |
| • Voltage 240VAC | |
| • Transfer both signal and power | |
| • Double-sided rings design available for thinner thickness |
|
| Model | ID(mm) | OD(mm) | Height(mm) | Ways | Option |
| PSR-PP20-4-S | 20 | 82 | 9.2 | 4 | Single side |
| PSR-PP20-4-D | 66 | 15.2 | Double side | ||
| PSR-PP30-4-S | 30 | 92 | 9.2 | 4 | Single side |
| PSR-PP30-4-D | 76 | 15.2 | Double side | ||
| PSR-PP50-6-S | 50 | 128 | 9.2 | 6 | Single side |
| PSR-PP50-6-D | 104 | 15.2 | Double side | ||
| PSR-PP70-12-S | 70 | 196 | 9.2 | 12 | Single side |
| PSR-PP70-12-D | 148 | 15.2 | Double side | ||
| PSR-PP100-12-S | 100 | 226 | 9.2 | 12 | Single side |
| PSR-PP100-12-D | 178 | 15.2 | Double side | ||
| PSR-PPAB-CD-S | customized | ID+30+ways*8 | 9.2 | customized | Single side |
| PSR-PPAB-CD-D | ID+30+ways*4 | 15.2 | Double side |
| Specification | |
| Voltage Rating | 240VDC |
| Current Rating | 10A |
| Insulation Resistance | 1000MΩ @ 500VDC |
| Electric Noise | 20mΩ |
| Dielectric Strength | 500VAC @ 50Hz |
| Contact Material | Gold-Gold |
| Operating Speed | 200rpm |
| Working Temperature | -30℃~+80℃ |
| Torque | ＜2 g.cm/ way |
| Rotar/ Stator Connection | Customized(leads or connector) |
| Protection Level | IP00 |

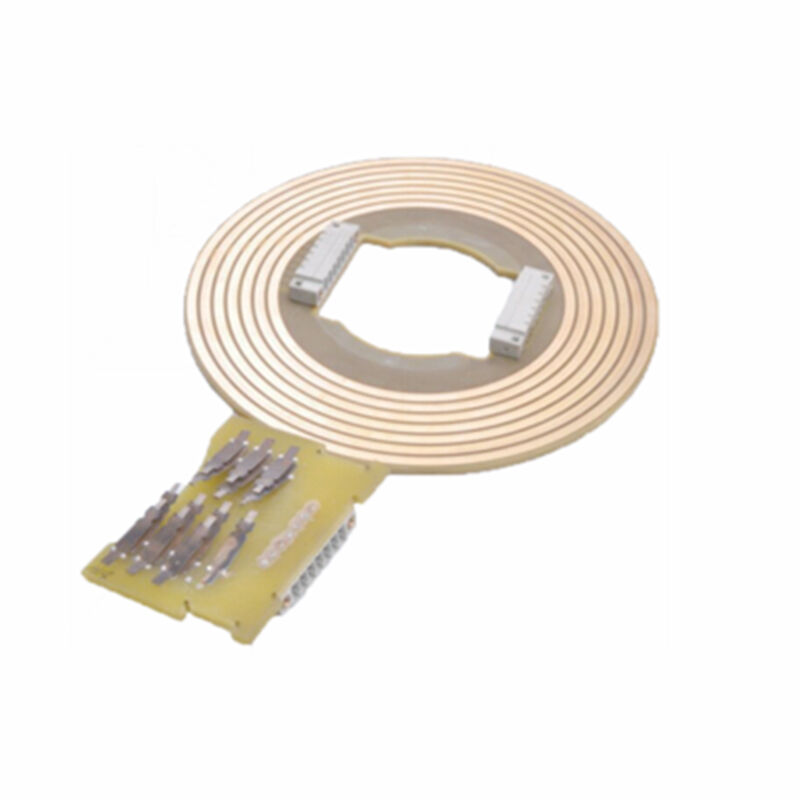

Single Side Contact
Double Side Contact
