Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-T30-8
Document:

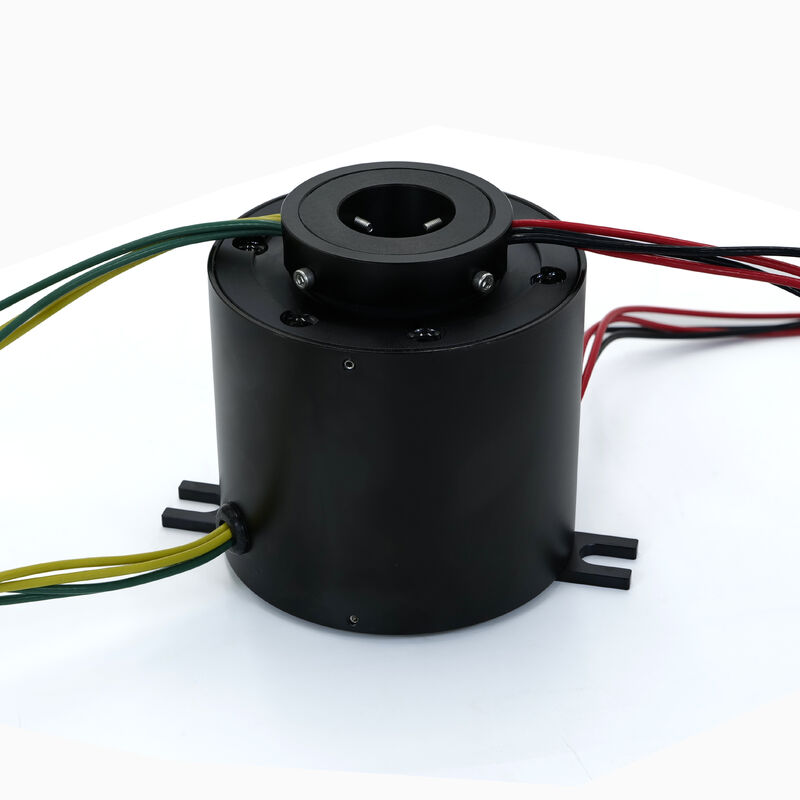

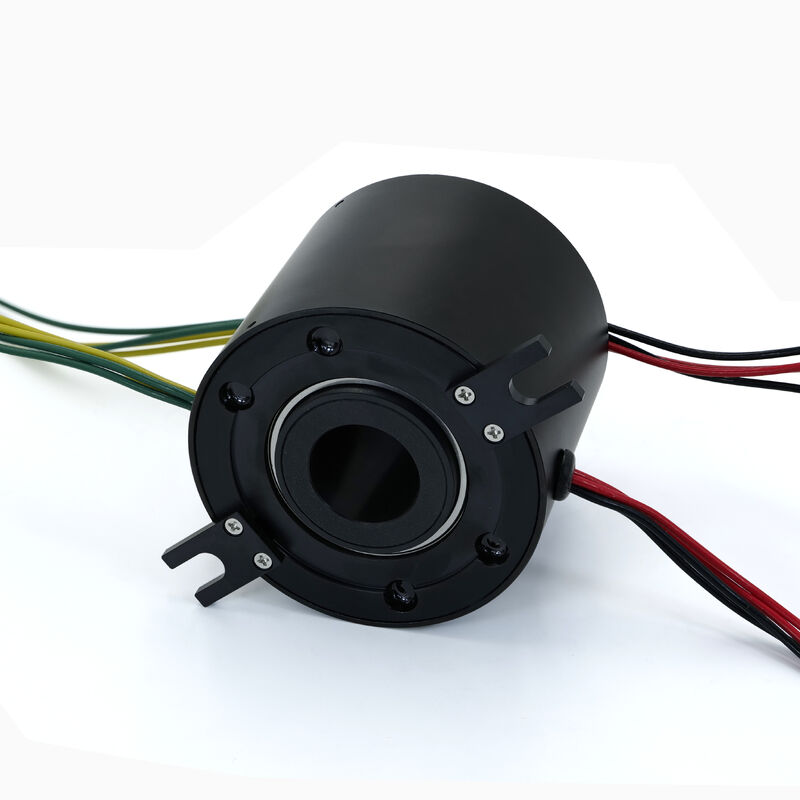

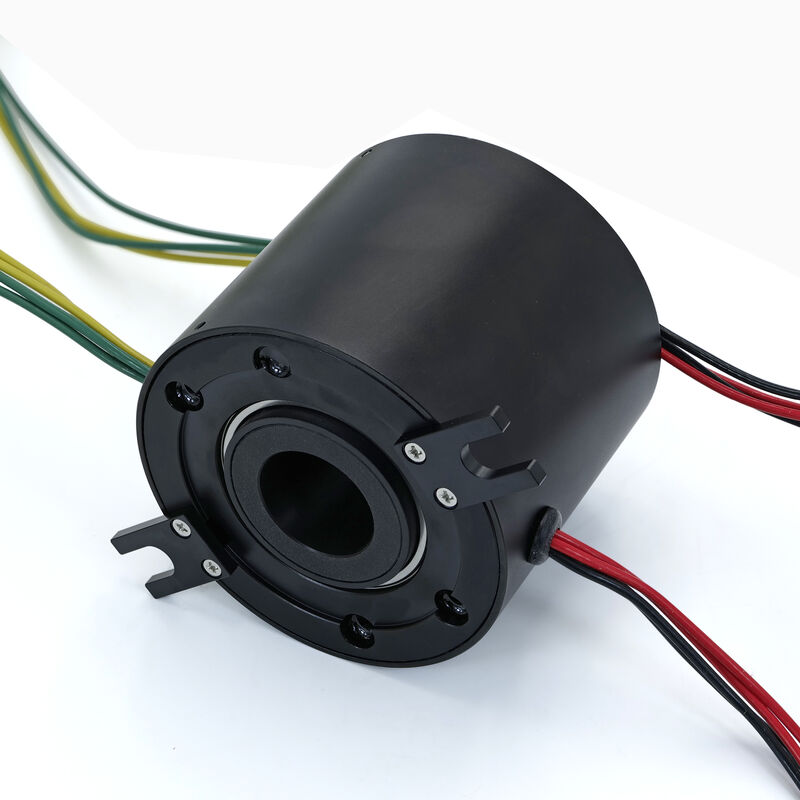

8 Channel Through Bore Slip Ring ID 1.18inch 20A
PSR-T30-8
Dimensions in millimeters
Specifications:
| Channels | 8 for Power Transmission |
|---|---|
| Electrical Specifications | |
| Voltage Rating | 440VAC/VDC |
| Current Rating | 20A |
| Insulation Resistance | Max 500MΩ @ 600VDC |
| Dielectric Noise | 1000VAC @ 50Hz, 60s |
| Electric Noise | Max 10mΩ |
| Lead Cable | Teflon Wire |
| Mechanical Specifications | |
| Rotating Speed | 250rpm |
| Operating Temperature | -22℉ to +176℉ (-30℃ to +80℃) |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
