Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:

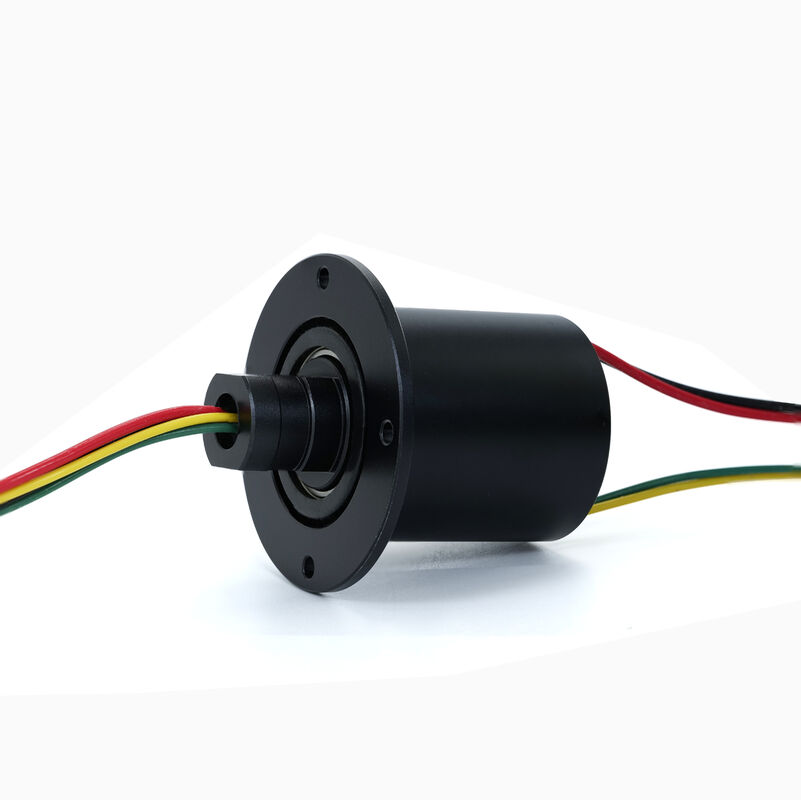

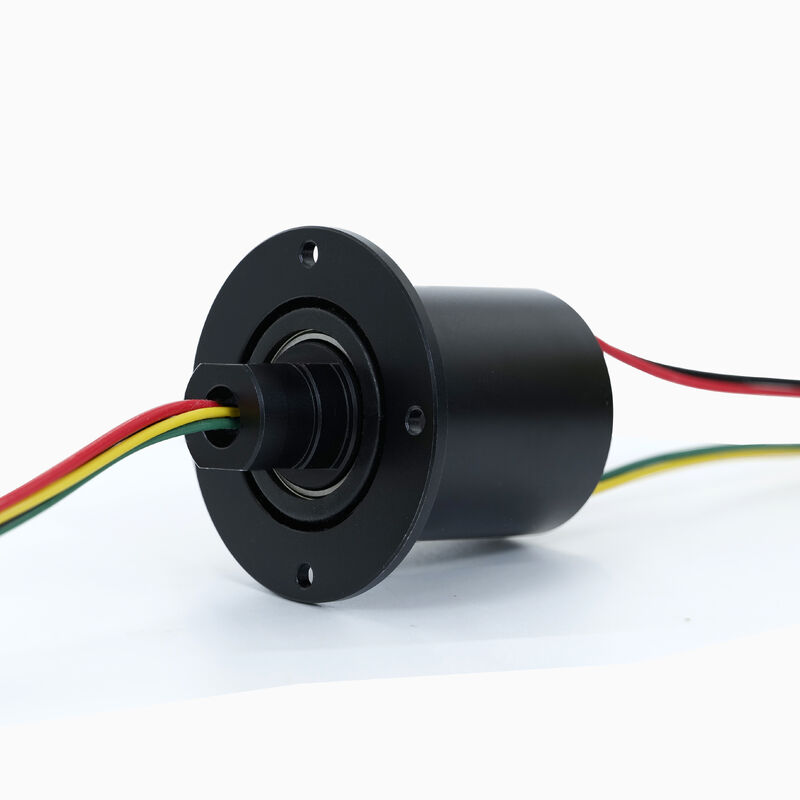

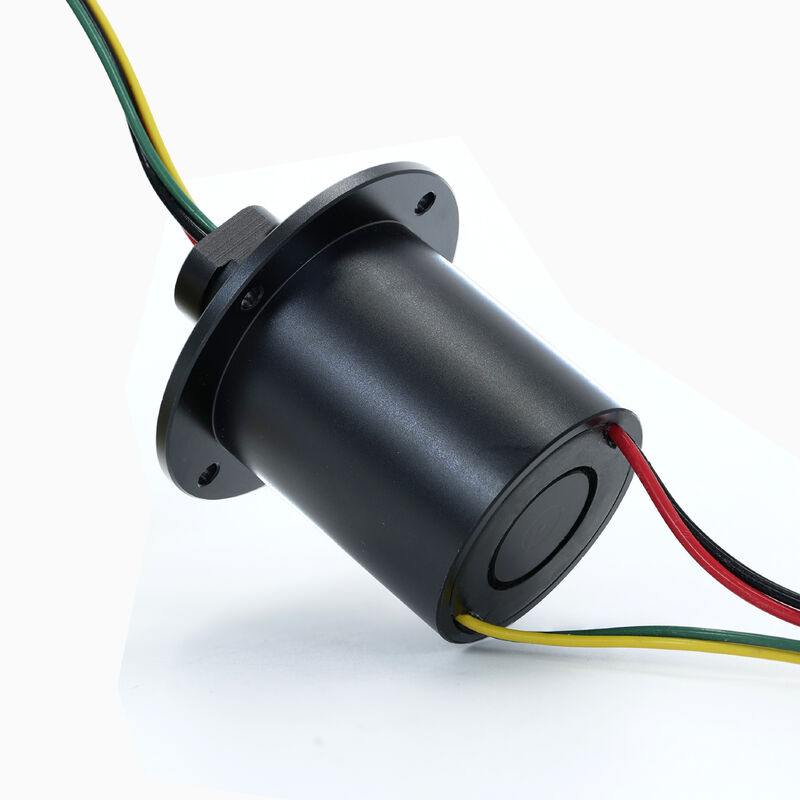

PSR-F15-2P2S
Dimensions in millimeters
| Channels | 2 for Signal Transmission, 2 for Power Transmission |
| Electrical Specifications | |
| Voltage Rating | 220VAC |
| Current Rating | Power: 10A, Signal: 5A |
| Insulation Resistance | Max 500MΩ @ 500VDC |
| Dielectric Noise | 500VAC @ 50Hz, 60s |
| Electric Noise | Max 20mΩ |
| Lead Cable | Power: AWG16 Teflon, Signal: AWG20 Teflon |
| Mechanical Specifications | |
| Working Life | 100 million revolutions |
| Rotating Speed | 300rpm |
| Operating Temperature | -4℉ to +176℉ (-20℃ to +80℃) |
| Storage Temperature | -13℉ to +185℉ (-25℃ to +85℃) |
| Operating Humidity | 0~95%RH |
| Torque | 0.1N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP54(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
