Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-TS-2P2S

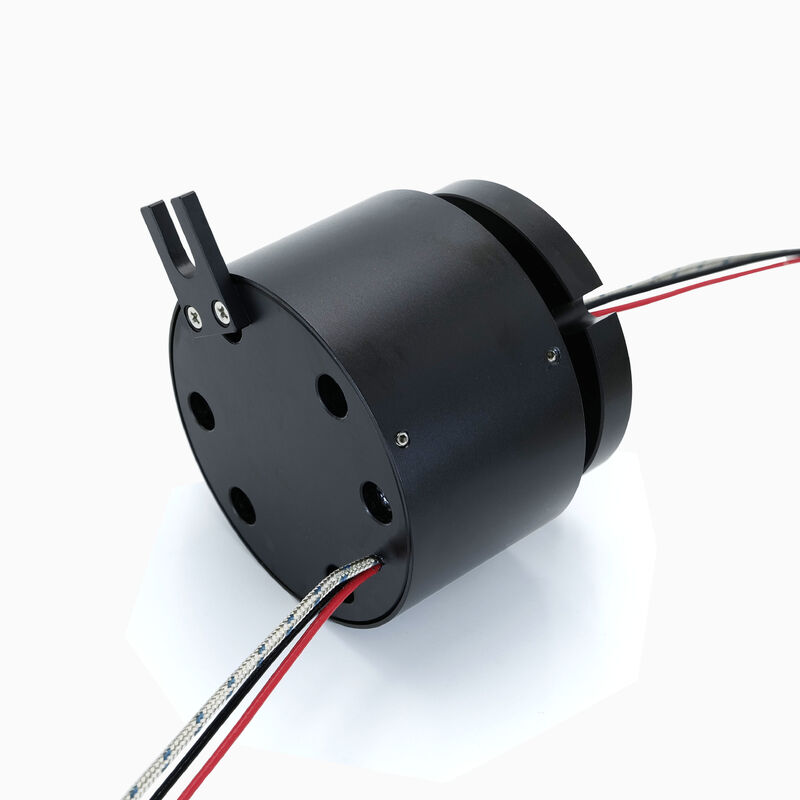

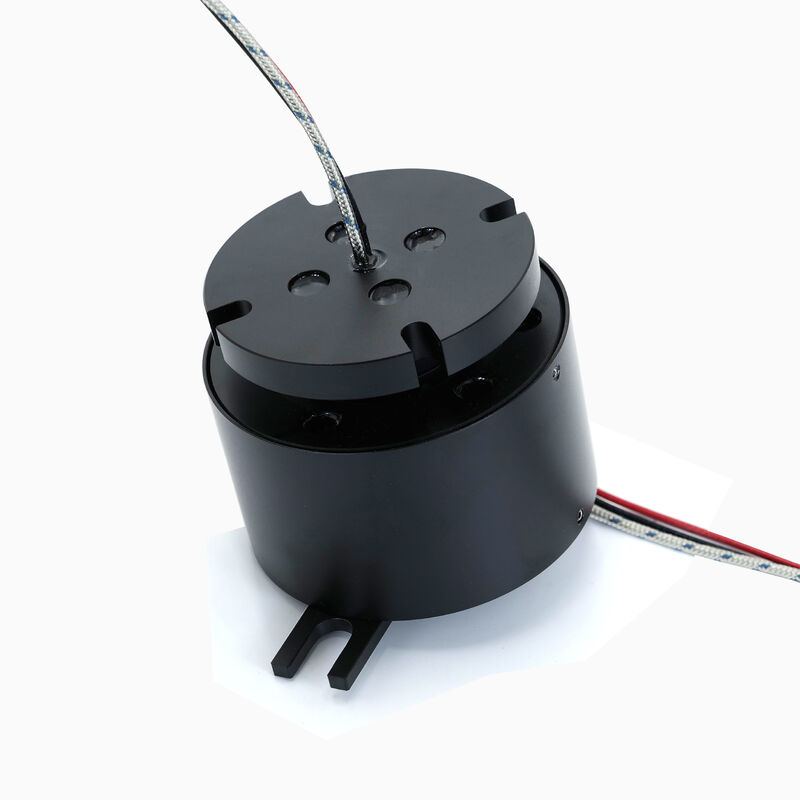

Compact 85mm OD, Solid-Shaft Slip Ring with 2 x K-type Thermocouple Signals, Engineered for Heaters and Heating Drums
85mm OD Slip Ring with Dual K-Type Thermocouple Channels
| Features | Applications |
|
• OD x L: 3.35″ x 2.76″/ 85mm x 70mm |
• Heating Rollers |
|
• Signals: 2 x Thermocouple Signals |
• Intelligent Electromagnetic Ovens |
|
• Voltage: 220VAC |
• Plastic Film Production Equipment |
|
• Lead wire: K-Type thermocouple channels |
• Cigarette Machine Cutting Drum |
|
• Working temperature: -4℉~+302°F (-20℃~+150℃) |
• Electromagnetic Baking Equipment Drums |
| Model |
Bore DIA inch(mm) |
Size: OD x L inch (mm) |
Circuits | Voltage |
Speed (rpm) |
Total Rings |
| PSR-TS-2P2S | / |
3.35″ x 2.76″ (85 x 70) |
2A, 10A | 220VAC | 300 | 4 |
| Specifications | |
| Circuits | 2×power(10A); 2×signal(2A) |
| Insulation Resistance | 100MΩ@500VDC |
| Electrical Noise | Max. 40mΩ |
| Dielectric Strength | 500VAC@50Hz,60s |
| Torque | Max. 1.0 N.M |
| Working Temperature | -4℉~+302°F (-20℃~+150℃) |
| Storage Temperature | -35℉~+302°F (-25℃~+150℃) |
| Relative Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP54 |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Lead Wire | K-Type thermocouple channels |
