Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-HTA Series

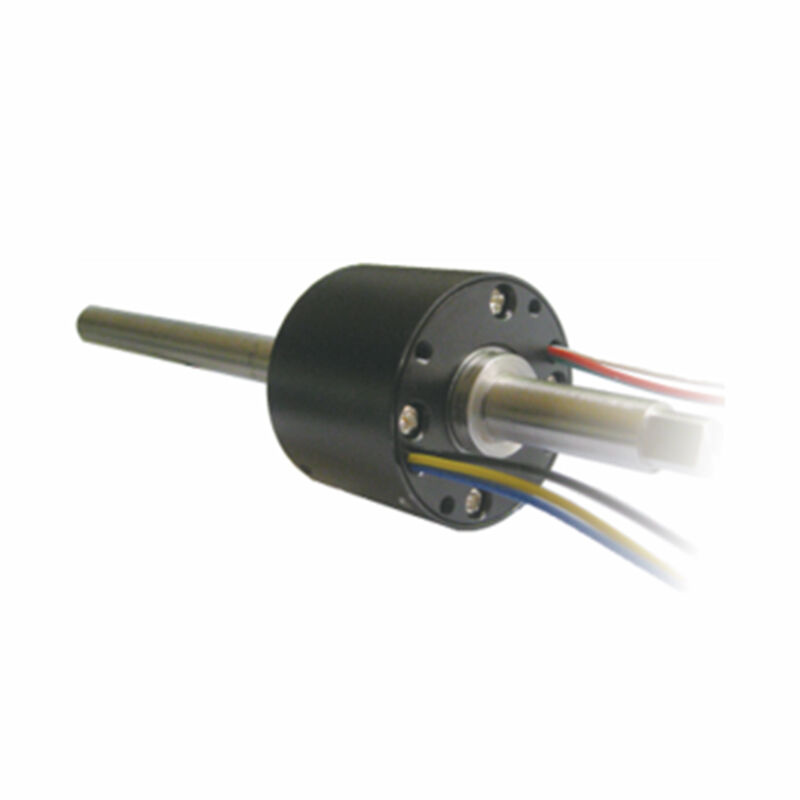

High Temperature Slip Ring
Panlink provides standard and custom slip ring designs to operate in high temperature environment. These designs are available in compact capsule, miniature through hole, large bore or cylindrical shapes to meet various applications’ technical and mounting need. Higher voltage, speed or pressure are possible. Unique design, critical material selection and high standard tests ensure these high temperature slip ring units’ high quality and reliability.
| Feature | Main Application |
| • Speeds up to 20,000rpm | • High speed testing |
| • Speeds up to 12,0000rpm without the need of cooling | • Aerospace & navigation testing |
| • Compatible with various signals and communication protocols | • Tire testing |
| • High performance under adverse operating conditions | • Centrifuges |
| • A variety of configurations and mounting optional | • Thermocouple and strain gauge instruments |
| • Stainless steel housing and higher protection optional | • Robotics |
| Model | Rings |
Current Rating (amps) |
Voltage Rating (VAC) |
Size (mm) |
Through Bore | Working Temperature | ||||
| 2 | 5 | 10 | 15 | OD | L | mm | ||||
| PSR-HTA-12-6 | 1~6 | 6 | 380 | 55 | 33.8 | 12.7 | +80℃ ~ +400℃ | |||
| PSR-HTA-C12 | 12 | 12 | 380 | 22 | L | / | +80℃ ~ +400℃ | |||
| PSR-HTA-C15 | 15 | 15 | 380 | 22 | 29.5 | / | +80℃ ~ +400℃ | |||
| PSR-HTA-C32 | 32 | 32 | 380 | 22 | 57.6 | / | +80℃ ~ +400℃ | |||
| PSR-HTA-12-4P3S | 7 | 3 | 4 | 380 | 47 | 51 | / | +80℃ ~ +400℃ | ||
| Remark: Other standard capsule and through bore type slip rings can provide high temperature version. | ||||||||||
| Specification | |
| Insulation Resistance | 500mΩ @ 500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 600VAC/ 50Hz/ 60s |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 0.01N*M @ room temperature |
| Life Time, Min | 50 million revolutions |
| Contact Material | Gold-Gold |
| Lead Wires | 300mm AWG#28 Teflon Wires |
| Working Temperature | +80℃~+400℃ |
| Shock | MIL-STD-810G |
| Vibration | MIL-STD-810G |
| Humidity | 95% |
| Protection Level | IP54 |
PSR-HTA-C12 Dimensions
PSR-HTA-C15 Dimensions
PSR-HTA-C32 Dimensions
PSR-HTA-12-4P3S Dimensions
