Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-HS Series

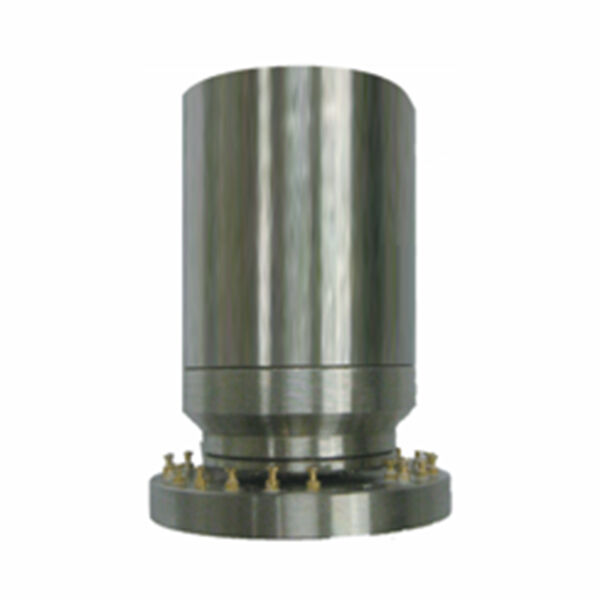

High Speed Slip Ring
High speed slip rings are required in high-speed operating systems to transfer power and signal from a stationary to a rotating part. Panlink provides slip rings with speeds up to 20,000RPM. These high-speed units maintain reliable and superior electrical transfer capabilities under high-speed operation, high vibration and high shock environments. High precision processing enables fiber brushes to feature low contact force and low contact wear rates. Brush blocks are easily replaceable, extending the procedure’s life.
| Main Application | Advantage |
| • High speed testing | • Low drive torque and low electrical noise |
| • Aerospace & navigation testing | • Easy to replace brush block for extended life |
| • Tire testing | • Maintenance-free operation ( no lubrication required) |
| • Centrifuges | • High quality and reliability |
| • Thermocouple and strain gauge instruments | |
| • Robotics |
| Feature |
| • Speeds up to 20,000rpm |
| • Speeds up to 12,0000rpm without the need of cooling |
| • Compatible with various signals and communication protocols |
| • High performance under adverse operating conditions |
| • A variety of configurations and mounting optional |
| • Stainless steel housing and higher protection optional |
| Model | Rings |
Current Rating (amps) |
Voltage Rating (VAC) |
Size (mm) |
Through bore (mm) |
Speed (rpm) |
||
| OD | L | |||||||
| 2 | 10 | |||||||
| PSR-T20H | 1~100 | × | × | 380 | 37 | 57 | 3~100 | 1~12,000 |
| PSR-T25H-6 | 1~6 | × | × | 380 | 78 | 48 | 25.4 | 1~10,000 |
| PSR-HSA-10 | 10 | × | 380 |
28 (square) |
/ | 1~12,000 | ||
| PSR-HSA-12 | 12 | × | 380 |
39.1 (square) |
/ | 1~12,000 | ||
| PSR-HSB-10 | 9~10 | × | 380 | 31.2 | 42 | / | 1~12,000 | |
| Remark: Lifetime can be extended by replacing brush blocks. | ||||||||
| Specification | |
| Rings | 10 or 12 |
| Voltage Rating | 380VAC |
| Insulation Resistance | 500MΩ @ 500VDC |
| Electrical Noise | 20mΩ |
| Dielectric Strength | 600VDC/ 50Hz/ 60s |
| Rotating Speed, Max | 12,000rpm |
| Torque During Rotation, Max | 0.01N.m |
| Life Time, Min | 100 million revolutions |
| Contact Material | Gold-Gold |
| Lead Wires | Terminal |
| Housing Material | Stainless steel |
| Working Temperature | -40℃ to +120℃ |
| Storage Temperature | -45℃ to +85℃ |
| Shock | MIL-STD-810G |
| Protection Level | IP54 or IP65 |
PSR-T20H Dimensions
PSR- HSA-10 Dimensions
PSR- HSA-12 Dimensions
PSR-HSB-10 Dimensions
