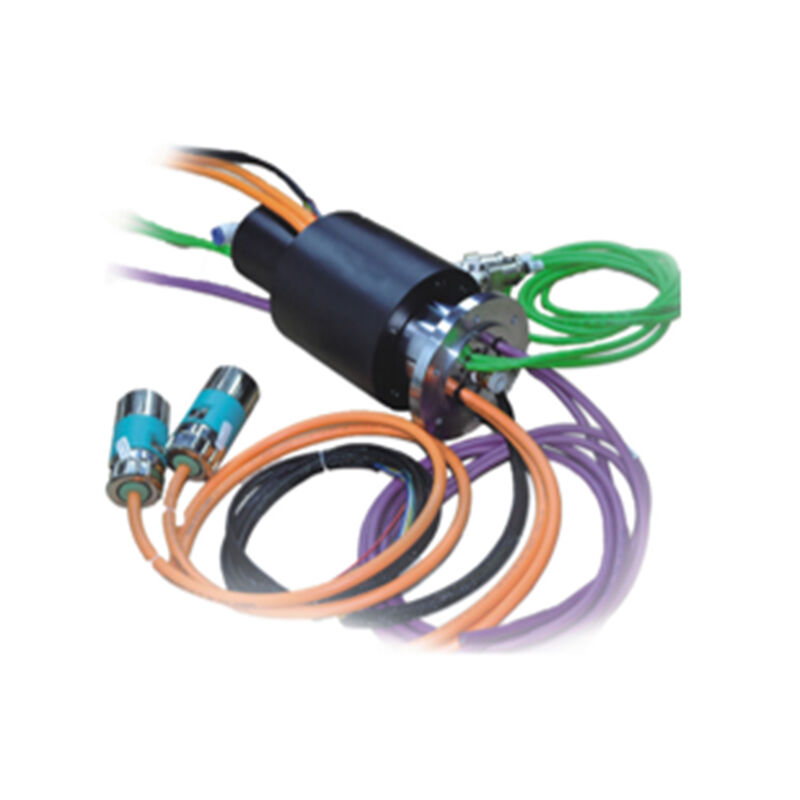

Servo System Slip Rings With Integrated Pneumatic-Electric Transmission, Full-Brand Servo Drive Compatibility, And Ultra-Long Service Life
Servo System Slip Ring
Servo drive systems are a critical component of modern motion control, widely used in automated equipment such as industrial robots and rotary tables. These systems require reliable transmission of power, signals, and data between the fixed and rotating platforms, typically achieved through slip rings. However, common electrical slip rings are susceptible to encoder signal interference, which can cause errors and system shutdowns.
Panlink servo system slip rings address these challenges by employing fiber brush technology and an innovative multiple independent modular design. This ensures stable transmission, extended service life, and maintenance-free operation. The slip rings provide connections for pneumatic channels, power, high-speed data, I/O interfaces, encoder signals, control signals, and more. They have been extensively tested and proven compatible with leading motor drives, including those from SIEMENS, Schneider, YASKAWA, Panasonic, Mitsubishi, DELTA, OMRON, Keba, and Fagor.
| Feature | Main Application |
|
• Suitable for SIEMENS, Schneider, YASKAWA, Panasonic, Mitsubishi etc. servo drive systems |
• Packaging systems |
| • Industrial robots | |
| • Compatible with various communication protocols | • Rotary tables |
| • Provide power, signal and pneumatic channels together | • Lithium battery machinery |
| • 8mm, 10mm, 12mm air channel size optional | • Laser processing equipment |
| • Higher sealing protect optional | |
| • Stainless steel housing available |
| Model | Channels |
Current Rating (amps) |
Voltage Rating (VAC) |
Size (mm) |
Bore (mm) |
Speed (rpm) |
||||
| Electrical | Air | 2 | 5 | 10 | OD | L | ||||
| PSR-T25F-6&12mm | 6 | 1 | × | × | 240 | 78 | 77.8 | / | 300 | |
| PSR-T25F-3P6S1E&8mm | 14 | 1 | × | × | 240 | 78 | 88 | / | 300 | |
| PSR-F12-24&RC2 | 24 | 1 | × | 240 | 32.8 | 96.7 | / | 300 | ||
| PSR-T25-24P1E | 33 | 0 | × | × | 380 | 78 | 142 | 25.4 | 300 | |
| PSR-T25S-36&10mm | 36 | 1 | × | 240 | 78 | 169.6 | / | 300 | ||
| PSR-TS50-42 | 42 | 1 | × | × | 380 | 127.2 | 290 | / | 300 | |
| PSR-T25F-12P48S&8mm | 60 | 1 | × | × | × | 380 | 85 | 180 | / | 300 |
| PSR-T25F-12P48S&10mm | 90 | 1 | × | × | 380 | 99 | 316.8 | / | 300 | |
| PSR-T25S-90&10mm | 90 | 1 | × | 240 | 78 | 315.6 | / | 300 | ||
| Remark: Pneumatic channel size is optional. | ||||||||||
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| Type | Modular Code | PSR-T12 Series | PSR-T25 Series | PSR-T38 Series | PSR-T50 Series | PSR-T70 Series | PSR-T80 Series | PSR-T100 Series | |
| Power | 5A | PA | 2.3/ring | 2/ring | 2/ring | 2/ring | 3/ring | 2.8/ring | 4.65/ring |
| 10A | PB | 3.3/ring | 4/ring | 4/ring | 4/ring | 5/ring | 4.1/ring | 4.65/ring | |
| 15A | PC | √ | 5/ring | 5/ring | 5/ring | 5/ring | 4.1/ring | 4.65/ring | |
| 20A | PD | √ | √ | 6/ring | 6/ring | 5/ring | 4.1/ring | 4.65/ring | |
| USB | SU | 11.5/Modular | 15/ Modular | 14/Modular | 23.25/Modular | ||||
| 100M Ethernet | SE | 11.5/Modular | 15/Modular | 14/Modular | 23.25/Modular | ||||
| G bit Ethernet | SA | 20.7/Modular | 27/Modular | 25.2/Modular | 41.85/Modular | ||||
| Coaxial | SC | 6.9/Modular | 9/Modular | 8.4/Modular | 13.95/Modular | ||||
| Can-open | SB | 6.9/Modular | 9/Modular | 8.4/Modular | 13.95/Modular | ||||
| Rs485/422 | SD | 6.9/Modular | 9/Modular | 8.4/Modular | 13.95/Modular | ||||
| Encoder Signal | SF | 2.3/Ways | 3/Ways | 2.8/Ways | 4.65/Ways | ||||
| EtherCAD | SG | 20.7/Modular | 27/Modular | 25.2/Modular | 41.85/Modular | ||||
| Device Net | SH | 11.5/Modular | 15/Modular | 14/Modular | 23.25/Modular | ||||
| Profibus | SJ | 6.9/Modular | 9/Modular | 8.4/Modular | 13.9/Modular | ||||
| CC-Link | SK | 6.9/Modular | 9/Modular | 8.4/Modular | 13.9/Modular | ||||
| Other Signal | SM | 2.3/Way | 3/Way | 2.8/Way | 4.65/Way | ||||
| Specification | |
| Voltage Rating | 120VAC/ 240VAC/ 380VAC |
| Current Rating | 2~60A |
| Circuits | 6~180 |
| Insulation Resistance | 500MΩ @ 500VDC |
| Electrical Noise | 20mΩ max |
| Dielectric Strength | 500VAC/ 50Hz/ 60s |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 2~10 N*M @ room temperature |
| Life Time, Min | 50 million revolutions |
| Contact Material | Precious Metal |
| Lead Wires | Teflon Wires |
| Housing Material | Aluminum Alloy |
| Air Tube | 4~12mm |
| Air Pressure | 0.1~3MPa |
| Working Temperature | -40℃ to +80℃(-40℉ to +176℉) |
| Storage Temperature | -45℃ to +85℃(-49℉ to +185℉) |
| Humidity | 95% |
| Protection Level | IP54 |
PSR-T25F-6&12mm Dimensions
PSR-T25F-3P6S1E&8mm Dimensions
PSR-T25-24P1E Dimensions
PSR-T25S-36&10mm Dimensions
PSR-TS50-42 Dimensions
PSR-T25F-12P48S&8mm Dimensions
PSR-T25S-90&10mm Dimensions
