Marine Slip Ring
Slip rings have been essential in the global maritime industry, providing unrestricted power and signal connections between stationary and rotating devices for various marine applications, such as ROVs, cranes, winches, wireline/logging, and FPSO swivel stacks. With slip rings, systems can rotate freely in both directions without damaging cables.
As technology rapidly advances worldwide, the slip rings used in marine applications need to offer more advanced performance, robust configurations, and complex solution combinations. Panlink has been designing and manufacturing high-performance electrical slip ring assemblies for decades in the marine industry. These marine slip rings are engineered to operate reliably in extreme marine environments.
Marine slip rings are designed to accommodate a wide range of sizes, powers, and channels, offering uninterrupted power supply from signal levels to 10,000V and current ratings up to 500A. Gold-plated fiber brushes are used for signal circuits, while silver graphite brushes on precious metal-plated rings serve high current circuits. These electrical slip rings can be integrated with fiber optic rotary joints and fluid rotary joints to provide a comprehensive rotating interface solution for both surface and subsea applications.

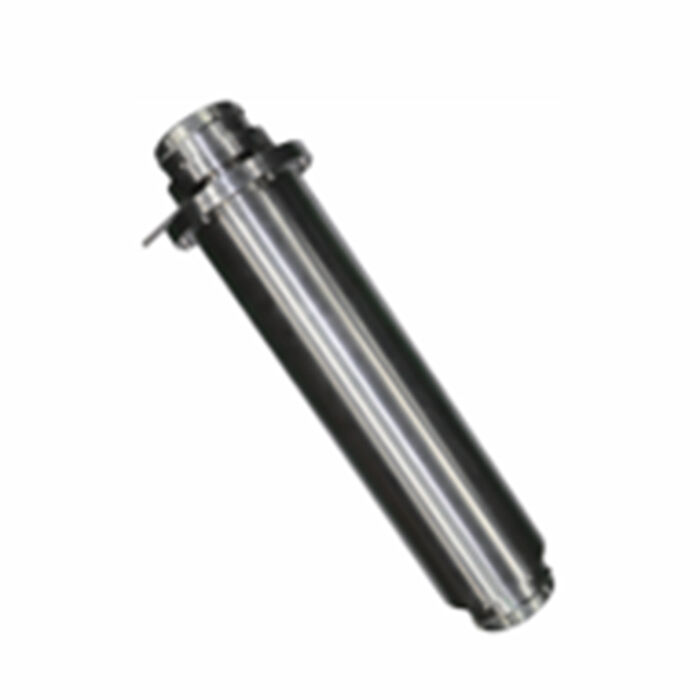

Model 180
 |
• Maximum 1000VAC |
| • Maximum 10A per ring, up to 100A total current | |
| • 72.4mm diameter | |
| • IP67 sealed, stainless steel enclosure | |
| • Supports various power and signal combinations | |
| • Perfect for small winch systems | |
| • Compact and rugged design for harsh environments | |
| • Stable performance under shock and vibration |
| Specification | |
| Voltage Rating | 100VAC |
| Current Rating | Max 10A per ring Max 100A total current |
| Insulation Resistance | 500MΩ @ 1000VDC |
| Electrical Noise | 20mΩ max |
| Dielectric Strength | Typical 2x voltage @ 50Hz |
| Signal Types |
Analog Video, Canbus, Profibus, Device Net, Ethernet, SHDSL, RS485 |
| Rotating Speed, Max | 100rpm |
| Torque During Rotation, Max | 2.5N.m |
| Life | 50 million revolutions |
| Working Temperature | -40℃ to +70℃(-40℉ to +158℉) |
| Storage Temperature | -45℃ to +80℃(-49℉ to +176℉) |
| Contact Material | Precious metal |
| Housing Material | Stainless Steel 304(316 optional) |
| Cables |
Standard 3m loose wire pigtails, tinned copper braid and heat shrink installed over loose wire pigtails |
| Relative Humidity | 95% |
| Vibration |
10~30 Hz frequency, double amplitude 0.8mm;30~200Hz frequency, acceleration 2g; two circulation last 30min |
| Rush |
40g, 11ms, half sine wave, vertical direction 3 times, level 3 times |
| Protection Level | IP67(IP68 optional) |
Dimension L is determined by the number of rings and is detailed on our quotation.
Model 176
|
• Maximum 7200VAC |
| • Maximum 20A per ring, up to 720A total current | |
| • 140mm diameter | |
| • IP67 sealed, stainless steel enclosure | |
| • Supports diverse power and signal combinations | |
| • Meets the highest standards in design, manufacturing, and testing | |
| • Reliable operation in shock, vibration, and harsh environments | |
| • Commonly used in ROVs, surface/subsea winches, and cranes |
| Specification | |
| Voltage Rating | 7200VAC |
| Current Rating | Max 720A per ring Max 100A total current |
| Insulation Resistance | 500MΩ @ 1000VDC |
| Electrical Noise | 20mΩ max |
| Dielectric Strength | Typical 2x voltage @ 50Hz |
| Signal Types |
Analog Video, Canbus, Profibus, Device Net, Ethernet, SHDSL, RS485 |
| Rotating Speed, Max | 50rpm |
| Torque During Rotation, Max | 2.5N.m |
| Life | 50 million revolutions |
| Working Temperature | -40℃ to +70℃(-40℉ to +158℉) |
| Storage Temperature | -45℃ to +80℃(-49℉ to +176℉) |
| Contact Material | Precious metal |
| Housing Material | Stainless Steel 304(316 optional) |
| Cables |
Standard 3m loose wire pigtails, tinned copper braid and heat shrink installed over loose wire pigtails |
| Relative Humidity | 95% |
| Vibration |
10~30 Hz frequency, double amplitude 0.8mm;30~200Hz frequency, acceleration 2g; two circulation last 30min |
| Rush |
40g, 11ms, half sine wave, vertical direction 3 times, level 3 times |
| Protection Level | IP67(IP68 optional) |
Dimension L is determined by the number of rings and is detailed on our quotation.
Customized Marine Slip Rings for Surface Option
|
SLIP RING-PSR-12J Up to 12 x 2A rings 100mm OD x 225.7mm L Stainless Steel 304 Housing |
1000VAC Voltage Sealed to IP65 |
|
|
SLIP RING-PSR-S176B-17P Up to 15 x 100A rings + 2 x 10A rings 100mm OD x 225.7mm L Stainless Steel 304 Housing |
3000VAC Voltage Sealed to IP65 |
|
|
SLIP RING-PSR-180-5S Up to 55 x 2A rings 72mm OD x 420mm L Stainless Steel 304 Housing |
1000VAC Voltage Sealed to IP65 |
|
|
SLIP RING-PSR-12J Up to 12 x 2A rings 190mm ID x 538mm OD x 1159mm L Stainless Steel 304 Housing |
1000VAC Voltage Sealed to IP65 |
|
IP68 Protection Slip Rings for Subsea Option
|
SLIP RING-PSR-12J 7 x 5A rings 65mm OD x 78mm L Sealed to IP68 @ underwater 60m |
220VAC Voltage PG7 waterproof connector |
|
|
SLIP RING-PSR-T25-6P13S 6 x 5A rings + 10 x 2A rings + 1 coax 89mm OD x 187.2mm L Sealed to IP68 @ underwater 400m |
1000VAC Voltage Stainless Steel 316L Housing |
|
|
SLIP RING-PSR-T38S-18-FORJ 13 x 10A rings + 5 x 5A rings + 1 FORJ integrated 380VAC Voltage Sealed to IP68 @ 0.3Mpa |
110mm OD x 243mm L |
|
|
SLIP RING-PSR-T38S-18-FORJ 10 x 20A rings + 3 x 5A rings + 3 FORJ integrated 5000VAC Voltage Sealed to IP68 @ underwater 4000m |
140mm OD x 921mm L |
|
