Lugar de origen:
Porcelana
Nombre de la marca:
Panlink
Certificación:
ISO 9001: 2015, CE
Número de modelo:
PSR-TS-13P-1RC

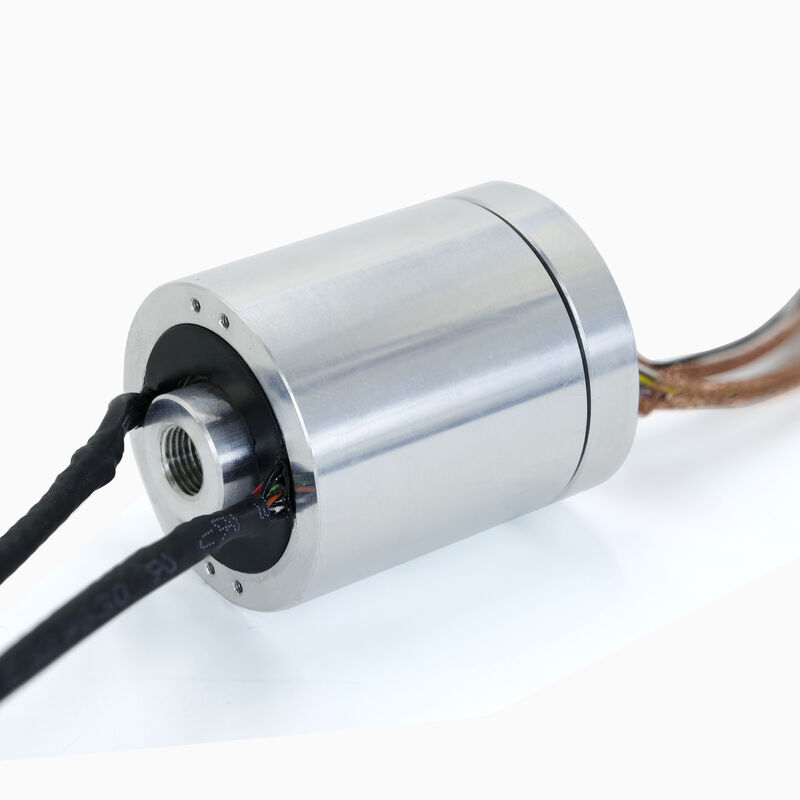

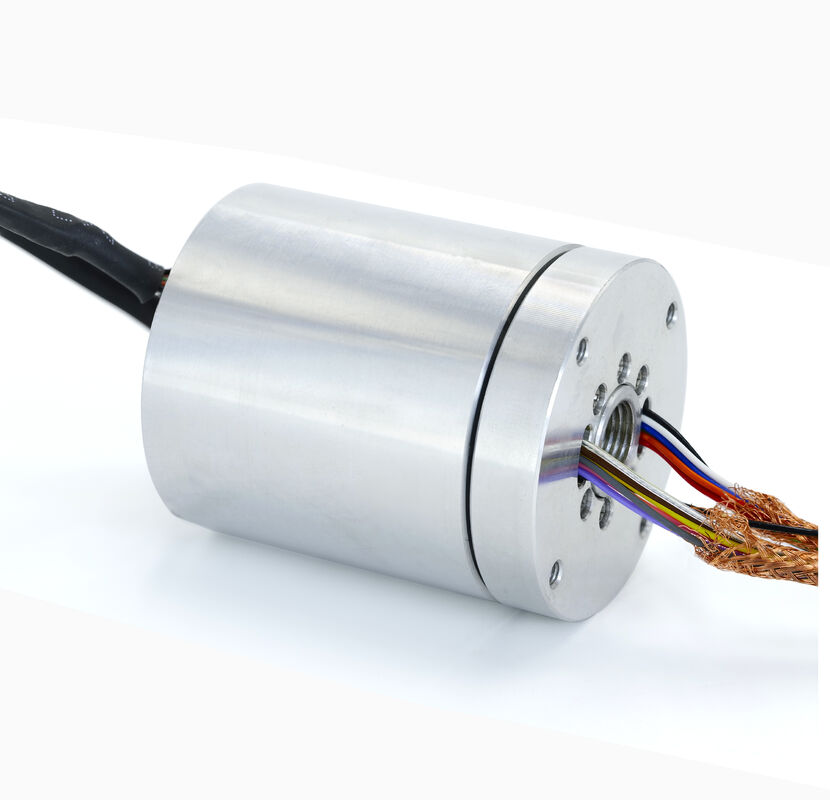

1-Channel 8 bar Air Rotary Union RC1/8´´ with12 Power Transfer
PSR-TS-13P-1RC
Drawing (Dimensions in Millimeters)
Specification:
| Circuits | 12 for Power Transmission, 1 for Fluid Transmission |
| Fluid Rotary Union Specifications | |
| Max Pressure & Media | 11.6PSI (8bar) Air |
| Connector Size | RC1/8´´ |
| Torque | 1.0N•m |
| Housing Material | Aluminum Alloy |
| Operating Temperature | -4℉ to +176℉ (-20℃ to +80℃) |
| Electrical Specifications | |
| Voltage Rating | 220-240VAC |
| Current Rating | 1A |
| Insulation Resistance | Max 500MΩ @ 500VDC |
| Dielectric Noise | 500VAC @ 50Hz, 60s |
| Electric Noise | Max 40mΩ |
| Lead Cable | Teflon28 Wire |
| Mechanical Specifications | |
| Rotating Speed | 300rpm |
| Operating Temperature | -4℉ to +158℉ (-20℃ to +70℃) |
| Storage Temperature | -13℉ to +167℉ (-25℃ to +75℃) |
| Operating Humidity | 0~95%RH |
| Torque | 1.0N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
