Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-M18-6P4S-2SDI
Document:

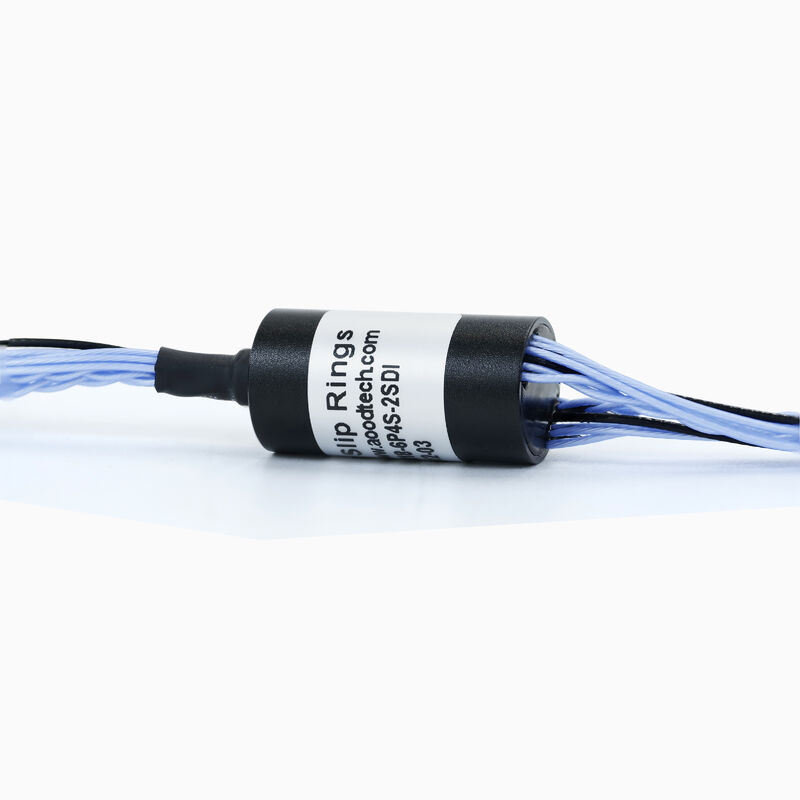

2-Channel HD-SDI Slip Ring with 0.94inch Length
PSR-M18-6P4S-2SDI
Drawings (Dimensions in Millimeters)
Specifications
|
Circuits |
2 Channel for HD-SDI Transmission, 4 Channel for Signal Transmission, 6 Channel for Power Transmission |
|
Electrical Specifications |
|
|
Frequency Rate |
3GHz HD-SDI |
|
Voltage Rating |
40VDC |
|
Current Rating |
1A |
|
Insulation Resistance |
Max 100MΩ @ 300VDC |
|
Dielectric Noise |
200VAC @ 50Hz, 60s |
|
Electric Noise |
Max 10mΩ |
|
Lead Cable |
Signal: AWG26 Teflon, HD-SDI Channel: RF0.81 |
|
Mechanical Specifications |
|
|
Working Life |
5 million revolutions |
|
Rotating Speed |
300rpm |
|
Operating Temperature |
-40℉ to +176℉ (-40℃ to +80℃) |
|
Storage Temperature |
-40℉ to +176℉ (-40℃ to +80℃) |
|
Operating Humidity |
0~95%RH |
|
Torque |
25 gf.cm |
|
Contact Material |
Precious Metal |
|
Housing Material |
Aluminum Alloy |
|
Protection Degree |
IP51(higher or lower on request) |
|
Shock |
GB/T 2423.5 (IEC 60068-2-27) |
|
Vibration |
GB/T 2423.10 (IEC 60068-2-6) |
