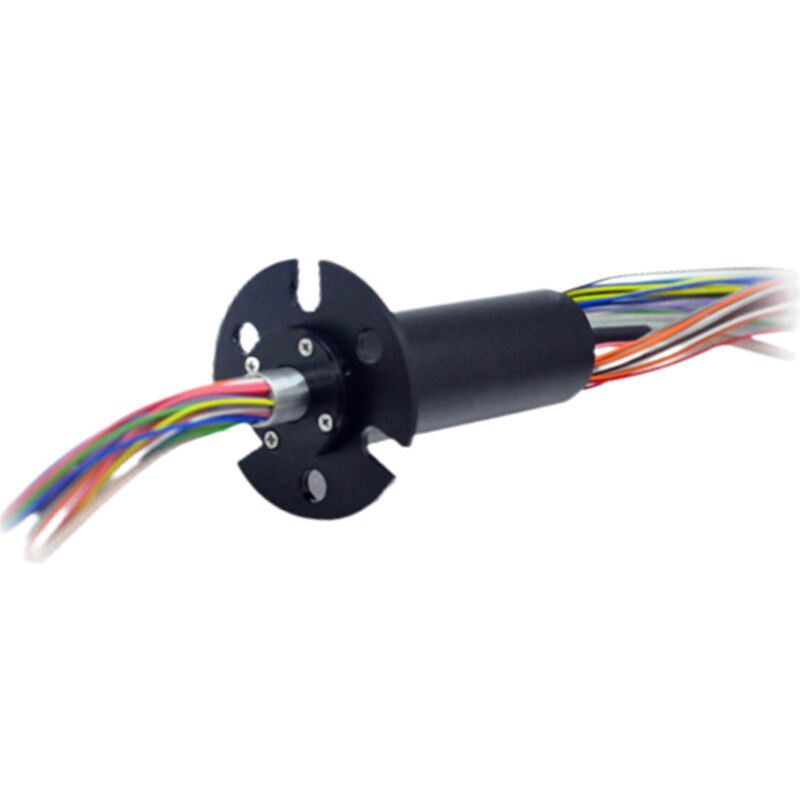

High Definition Slip Ring With Zero-Latency, Distortion-Free HD Signal Transmission And Suitable For Surveillance, Broadcasting And Film/Video Equipment
High Definition Slip Ring with Zero-latency, Distortion-free HD Signal Transmission and Suitable for Surveillance, Broadcasting and Film/Video Equipment
Panlink high-definition video slip rings are to provide HD-SDI video communication in combination with power and data connections from a stationary part to a rotating part, they provide a 360° free interface solution for television, broPSR-Cast, surveillance and VR systems etc.
Utilizing RF and gold on gold fiber brush contact technology, PANLINK HD-SDI slip rings feature very stable HD-SDI and 3G-SDI video transmission capability, superior electrical performance, compact and robust configuration. The coax cable is easily to terminate with a BNC/SMA connector for installation. 50/75ohm coax is available. Our existing units include 1 and 2 channels HD-SDI slip rings, electrical wires up to 56, a combination of one or two Ethernet channels is available.
 |
|
Main Application |
| • Motion control |
| • Rotating high definition video displays |
| • High definition video security |
| • Pan / tilt systems |
| • Camera jibs |
|
Feature |
|
• Compatible with: -SMPTE 259 M (SD-SDI, 270Mbps) -SMPTE 292 M (HD-SDI, 1.485Gbps) -SMPTE 424 M (3G-SDI, 2.97Gbps) |
|
• Available with various combinations of Ethernet, 5 amp and 10ampconnections |
|
• Sealing to dust and light fluid splash available |
|
• Gold on gold contact |
|
• Low electrical noise, low drive torque |
|
• Long lifetime and maintenance-free |
| Model | Channels | Current Rating |
Voltage Rating (VAC) |
Size (mm) |
Speed (rpm) |
|||||
| Electrical | HD-SDI | 100M Ethernet | Gbit Ethernet | 2A | 5A | OD | L | |||
| PSR-C12-SDI | 12 | 1 | × | 120 | 24.8 | 29.6 | 300 | |||
| PSR-C18-SDI | 18 | 1 | × | 120 | 22 | 28.8 | 300 | |||
| PSR-C24-SDI | 24 | 1 | × | 120 | 32.8 | 46.7 | 300 | |||
| PSR-C36-SDI | 36 | 1 | × | 120 | 22 | 70 | 300 | |||
| PSR-C56-SDI | 56 | 1 | × | 120 | 25.4 | 115 | 300 | |||
| PSR-C14-SDI-E | 14 | 1 | 1 | × | 120 | 22 | 28.8 | 300 | ||
| PSR-C10-SDI-G | 10 | 1 | 1 | × | 120 | 22 | 28.8 | 300 | ||
| PSR-C32-SDI-E | 32 | 1 | 1 | × | 120 | 22 | 70 | 300 | ||
| PSR-C28-SDI-G | 28 | 1 | 1 | × | 120 | 22 | 70 | 300 | ||
| PSR-C56-2SDI | 56 | 2 | × | 120 | 25.4 | 115 | 300 | |||
| PSR-C48-2SDI-E | 48 | 2 | 1 | × | 120 | 25.4 | 115 | 300 | ||
| PSR-C44-2SDI-G | 44 | 2 | 1 | × | 120 | 25.4 | 115 | 300 | ||
| Remark: 5A or 10A current is optional, compatible with various communication protocols. | ||||||||||
| Specification | |
| Voltage Rating | 240VAC/ VCD |
| Current Rating | 2A per circuit |
| Insulation Resistance | 500MΩ @ 500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 500VAC/ 50Hz/ 60s |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 50 g.cm @ room temperature |
| Life Time, Min | 10 million revolutions |
| Contact Material | Gold-Gold |
| Lead Wires | 300mm AWG#28 Teflon Wires |
| Housing Material | Aluminum Alloy |
| Working Temperature | -40℃ to +80℃(-40℉ to +176℉) |
| Storage Temperature | -45℃ to +85℃(-49℉ to +185℉) |
| Shock | MIL-STD-810H |
| Protection Level | IP51 (IP66 optional) |
PSR-C24-SDI Dimensions
PSR-C36-SDI Dimensions
PSR-C56-SDI Dimensions
