Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-M0-7S-SDI-1G
Document:

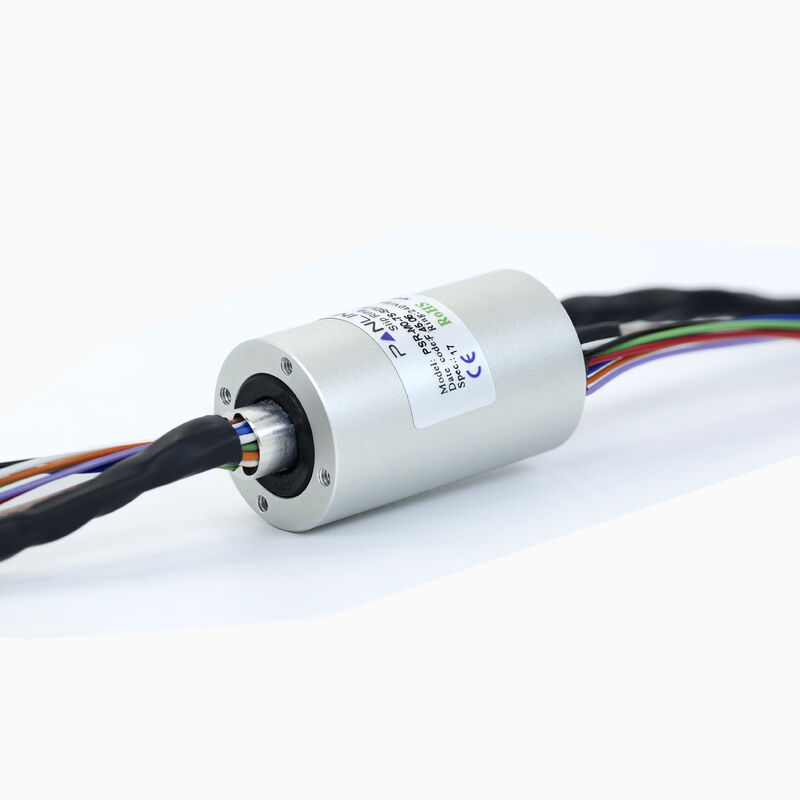

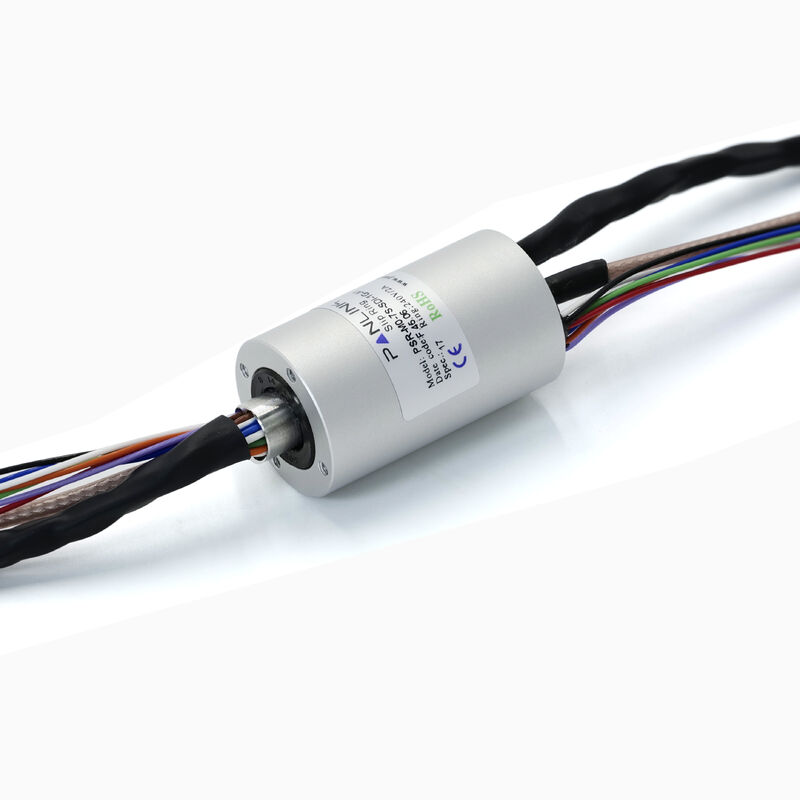

HD-SDI Slip Ring with extreme 1.46inch Length and 1 Gigabit Ethernet Transfer
PSR-M0-7S-SDI-1G
Drawings (Dimension in millimeters)
Specifications
| Circuits | 1 Channel for HD-SDI Transmission, 1 Channel for 1000M Ethernet, 7 for Signal Transmission |
| Electrical Specifications | |
| Frequency Rate | 3GHz HD-SDI |
| Voltage Rating | 48VDC |
| Current Rating | 2A |
| Insulation Resistance | Max 20MΩ @ 500VDC |
| Dielectric Noise | 200VAC @ 50Hz, 60s |
| Electric Noise | Max 20mΩ |
| Lead Cable | WG28 Teflon, RG179, CAT6 |
| Mechanical Specifications | |
| Working Life | 10 million revolutions |
| Rotating Speed | 300rpm |
| Operating Temperature | -67℉ to +160℉ (-55℃ to +71℃) |
| Storage Temperature | -67℉ to +176℉ (-55℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 50 gf.cm |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP67(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
