Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-K24-16S1E-2SDI

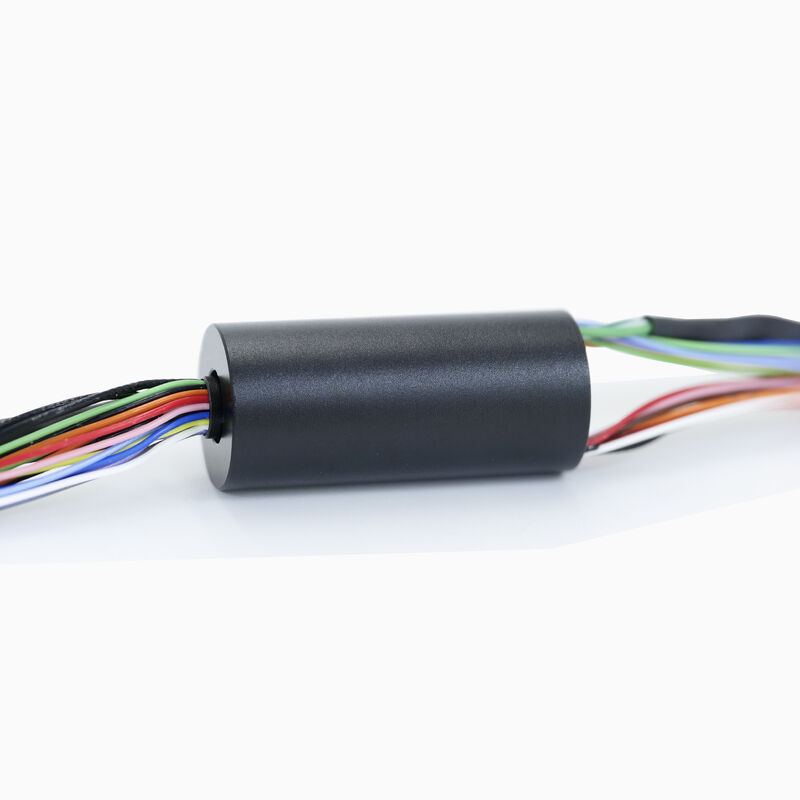

100M Ethernet And High Definition Video Slip Ring with 16 Power Transfer
PSR-K24-16S1E-2SDI
Dimensions in millimeters
Specification
| Channels | 16 for Power Transmission, 1 for 100BaseT Ethernet Transmission, 2 for HD-SDI Transmission |
| Electrical Specifications | |
| Voltage Rating | 48VDC |
| Current Rating | 2A |
| Insulation Resistance | Max 50MΩ @ 500VDC |
| Dielectric Noise | 200VAC @ 50Hz, 60s |
| Electric Noise | Max 50mΩ |
| Lead Cable | AWG30 Teflon, CAT5 |
| Mechanical Specifications | |
| Working Life | 5 million revolutions |
| Rotating Speed | 300rpm |
| Operating Temperature | -40℉ to +176℉ (-40℃ to +80℃) |
| Storage Temperature | -40℉ to +176℉ (-40℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 40gf.cm |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
