Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-JC60-77S-2SDI

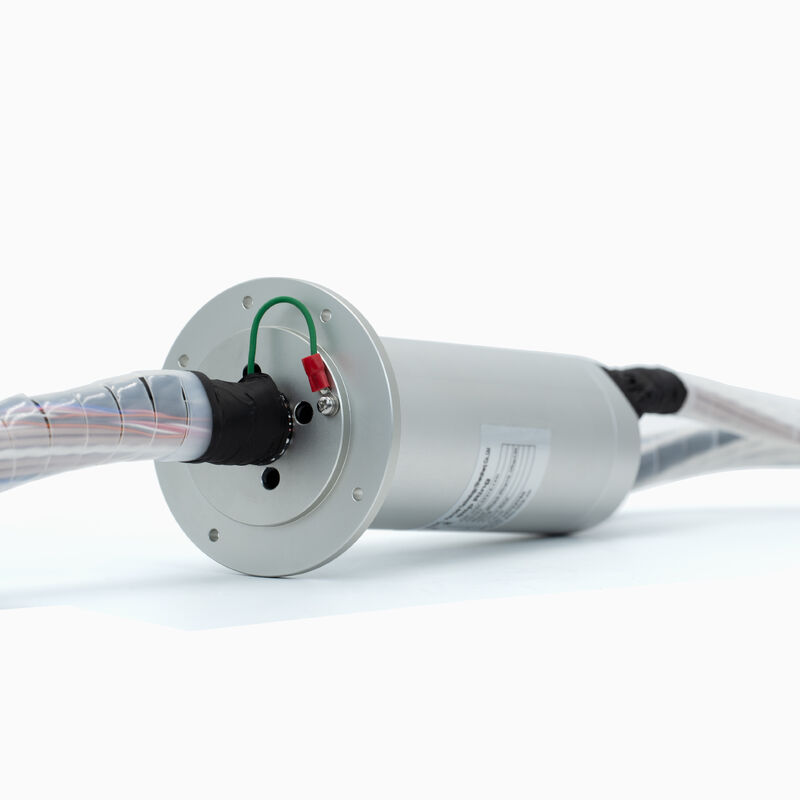

2 HD-SDI High Definition Slip Ring, with 77 Signal Transfer and RoHS-compliant painting
PSR-JC60-77S-2SDI
Dimensions in millimeters
Specification
| Circuits | 2 Channel for HD-SDI Transmission, 77 for Signal Transmission |
| Electrical Specifications | |
| Frequency Rate | 1.5GHz HD-SDI |
| Voltage Rating | 115VDC |
| Current Rating | 2A |
| Insulation Resistance | Max 200MΩ @ 500VDC |
| Dielectric Noise | 200VAC @ 50Hz, 60s |
| Electric Noise | Max 10mΩ |
| Lead Cable | Teflon Wires, HD-SDI Channel: RG179 |
| Mechanical Specifications | |
| Working Life | 10 million revolutions |
| Rotating Speed | 40rpm |
| Operating Temperature | -49℉ to +176℉ (-45℃ to +80℃) |
| Storage Temperature | -49℉ to +176℉ (-45℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 1 N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy(Passivation: SAF-PO35 (RoHS) Paint: RAL 9010 Pure White) |
| Protection Degree | IP53(higher or lower on request) |
| Weight | 1kg |
