Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-JC60-5P97S-4SDI

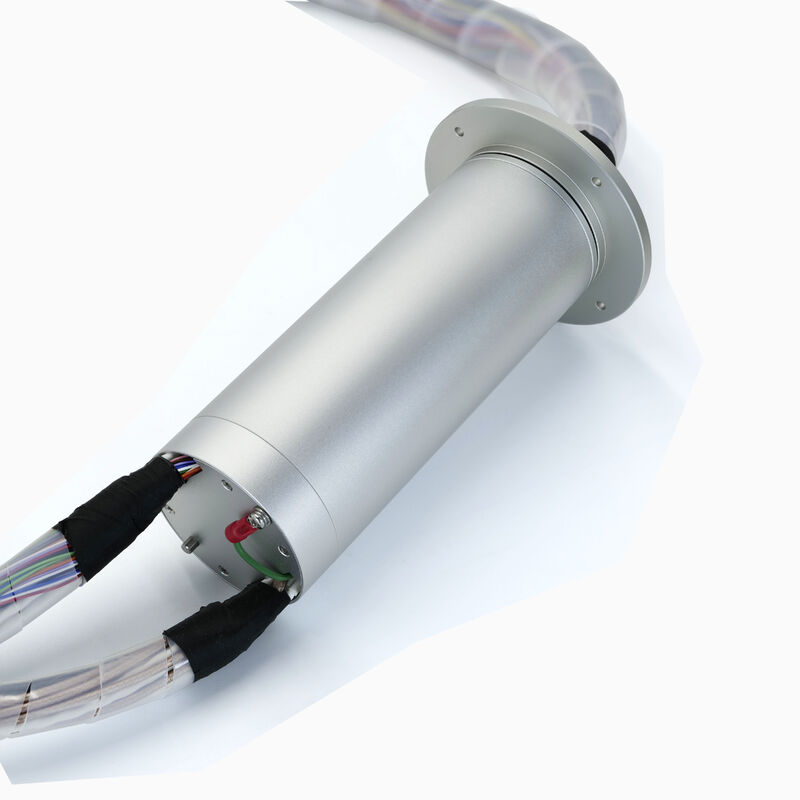

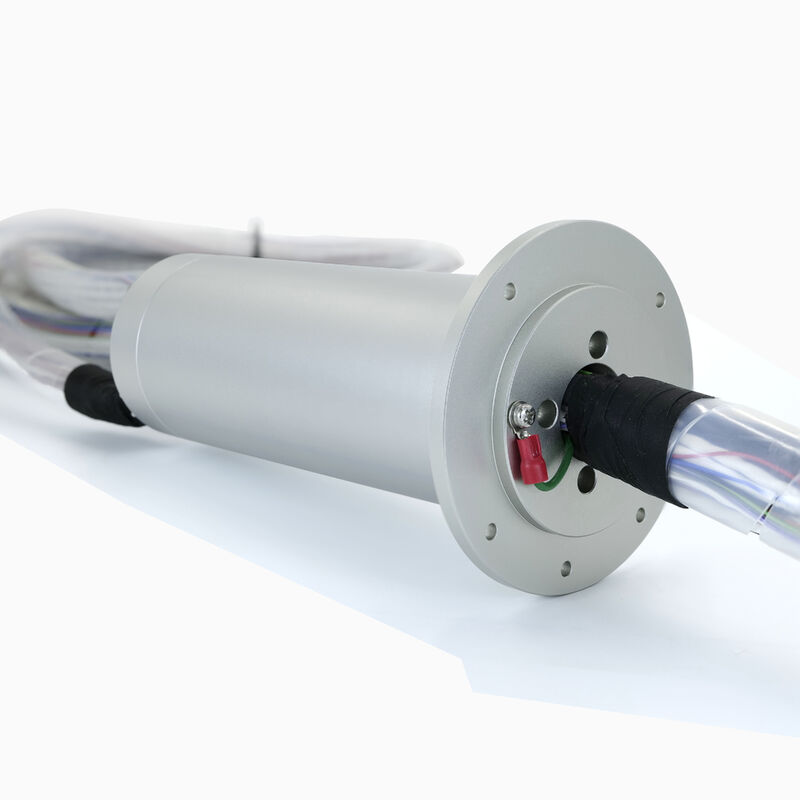

8A Power and 4 HD-SDI Transfer High Definition Slip Ring with 2.36in OD
PSR-JC60-5P97S-4SDI
Dimensions in millimeters
Specification
| Circuits | 4 Channel for HD-SDI Transmission, 5 for Power Transmission, 97 for Signal Transmission |
| Electrical Specifications | |
| Frequency Rate | 1.5GHz HD-SDI |
| Voltage Rating | 325VDC |
| Current Rating | Power: 8A, Signal: 2A |
| Insulation Resistance | Max 200MΩ @ 500VDC |
| Dielectric Noise | 200VAC @ 50Hz, 60s |
| Electric Noise | Max 10mΩ |
| Lead Cable | Teflon Wires, HD-SDI Channel: RG178 |
| Mechanical Specifications | |
| Working Life | 10 million revolutions |
| Rotating Speed | 40rpm |
| Operating Temperature | -49℉ to +176℉ (-45℃ to +80℃) |
| Storage Temperature | -49℉ to +176℉ (-45℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 1 N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP53(higher or lower on request) |
| Weight | 1kg |
