Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:

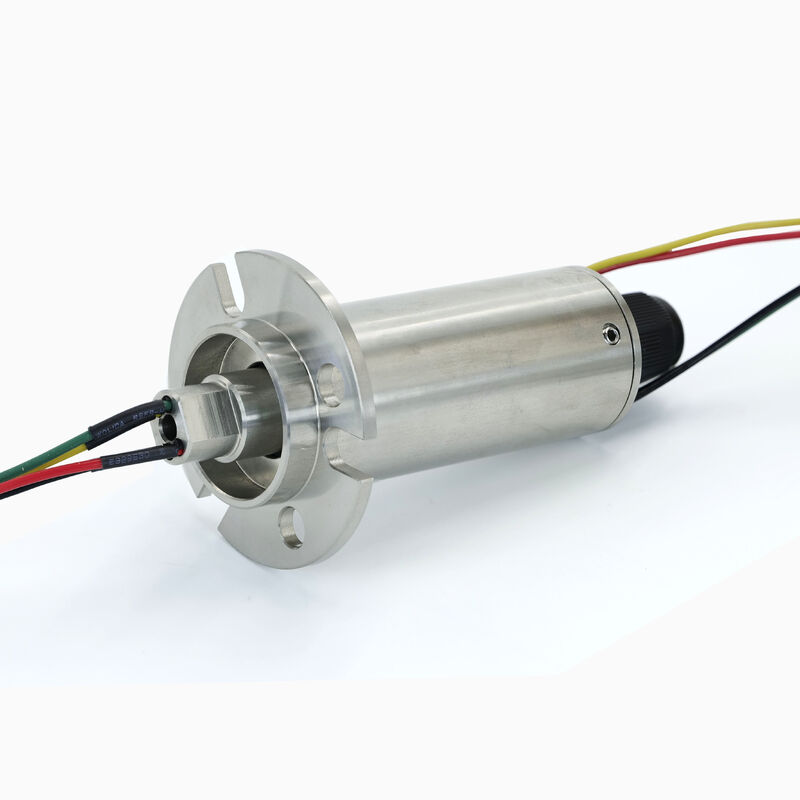

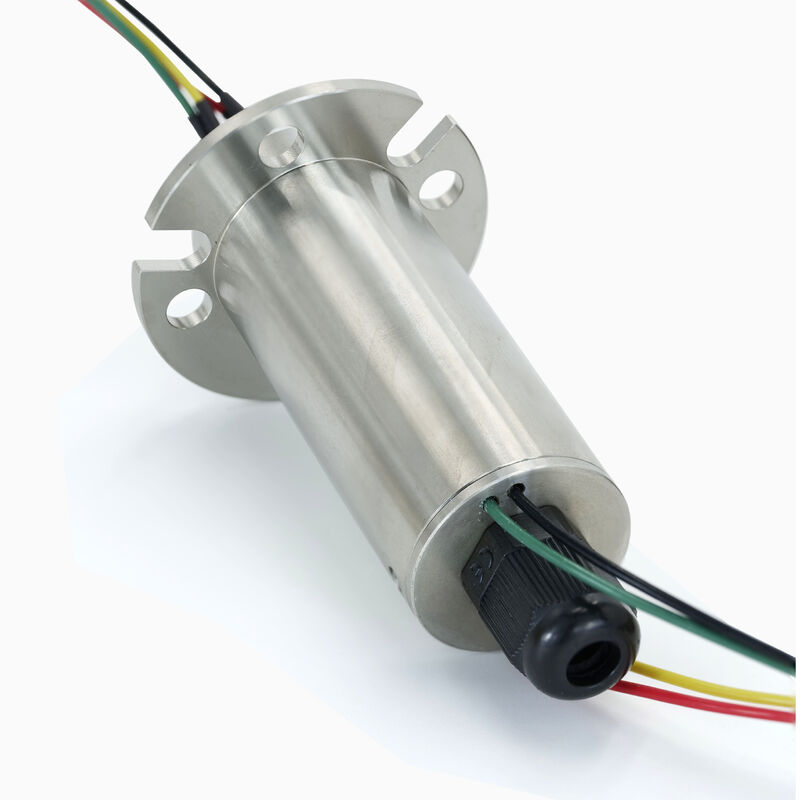

PSR-F7-4-FORJ
Dimensions in millimeters
|
Circuits |
4 for Power Transmission, 1 for FORJ |
|
Fiber Optic Specifications |
|
|---|---|
|
Fiber Type |
SM/MM 9/125μm Fiber |
|
Wavelength nm |
650-1650 |
|
Connector Types |
FC/SC/ST/SMA/LC |
|
Insertion Loss Max.(dB) |
2 |
|
Insertion Loss Ripple(dB) |
0.25 |
|
Return Loss(dB) |
40 |
|
Electrical Specifications |
|
|
Current Rating |
5A |
|
Voltage Rating |
380VAC |
|
Insulation Resistance |
Max 1000MΩ @ 500VDC |
|
Electrical Noise |
Max 40mΩ |
|
Dielectric Noise |
600VDC @ 50Hz, 60s |
|
Lead Cable |
Teflon Wire |
|
Mechanical Specifications |
|
|
Rotating Speed |
300rpm |
|
Contact Material |
Precious Metal |
|
Housing Material |
Stainless Steel |
|
Protection Degree |
IP65(higher or lower on request) |
