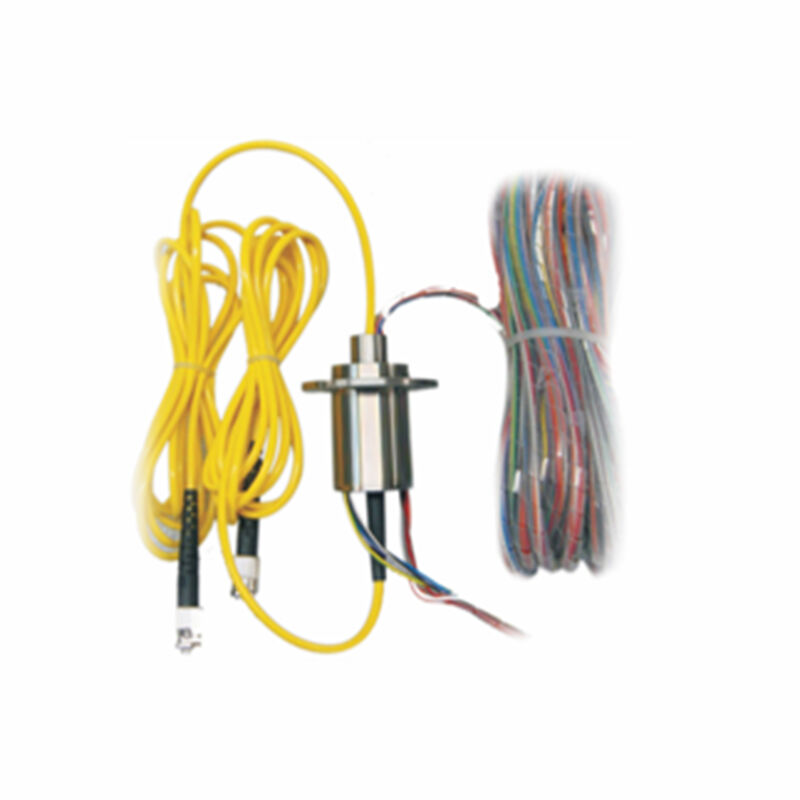

High-speed and Long-lasting Fiber Optic Hybrid Roatry Joint Compatible with Multiple Protocols
Fiber optic rotary joints combine electrical slip rings with fiber optic rotary joints, providing a multifunctional rotating interface for electrical and optical connections. These hybrid units enable the unlimited transmission of power, signals, and large amounts of data between stationary and rotating platforms, optimizing system configurations and reducing costs. Panlink offers a wide range of electrical and optical combinations to meet various application needs. A highly compact miniature slip ring can be integrated with a single-channel fiber optic rotary joint for low current, signal, and high-speed data transfer in HD camera systems. Conversely, a rugged high-power electrical slip ring can be combined with multi-channel fiber optic rotary joints for use in ROVs.
When harsh environment operation is required, options such as stainless steel housing, fully sealed enclosures, and fluid-filled pressure compensation are available. Additionally, hybrid optical-electrical units can be combined with fluid rotary unions to provide a complete solution for electrical, optical, and fluid rotating interfaces.
| Main Application |  |
| • Mobile aerial camera systems | |
| • Surveillance systems | |
| • Robotics | |
| • Automated machinery | |
| • Winch and TMS applications | |
| • Unmanned vehicles |
| Feature |
| • Combined electrical slip ring with fiber optical rotary joint |
| • Flexible transmission of power, signal and high bandwidth data through a single rotational joint |
| • Wide range of electrical and optical options |
| • Multi high power circuits optional |
| • Compatible with data bus protocol |
| • Can be combined with fluid rotary unions |
| Model | Channels |
Current Rating (amps) |
Voltage Rating (VAC) |
Size(mm) | rpm | ||||||
| Electrical | RF | 2 | 5 | 10 | 15 | 120 | 220 | OD | L | ||
| PSR-F3-24-FORJ | 24 | 1 | 24 | × | 22 | 51.5 | 300 | ||||
| PSR-F3-36-FORJ | 36 | 1 | 36 | × | 22 | 70 | 300 | ||||
|
PSR-F3-36-FORJ -IP68 |
36 | 1 | 36 | × | × | 22 | 75 | 300 | |||
|
PSR-F3-4P16S -FORJ |
20 | 1 | 16 | × | 4 | × | × | 27 | 60.8 | 300 | |
|
PSR-F3-4P38S -FORJ |
42 | 1 | 38 | 4 | × | 38 | 100 | 300 | |||
| PSR-F7-12-FORJ | 12 | 1 | 12 | × | 24.8 | 38.7 | 300 | ||||
|
Remark: The models listed above are standard units. Custom combinations of electrical and optical components are available upon request. |
|||||||||||
| Specification | |
| Voltage Rating | 220VAC |
| Current Rating | 12/ 24/ 36 x 2amps |
| Insulation Resistance | 200MΩ @ 500VDC |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 0.01N.m |
| Life Time, Min | 10 million revolutions |
| Lead Wires | 300mm AWG#30 Teflon Wires |
| Housing Material | Aluminum Alloy |
| Working Temperature | -40℃ to +80℃(-40℉ to +176℉) |
| Storage Temperature | -45℃ to +85℃(-49℉ to +185℉) |
| Relative Humidity | 95% |
| Protection Level | IP54 |
| Fiber Type | SM or MM |
| Channels | 1 |
| Wavelength Range | 650~1650nm |
| Insertion Loss, Max | 2dB (typical 0.5dB) |
| Insertion Loss Ripple | ＜+/-0.25dB(typical:+/-0.15dB) |
| Return Loss(SM), Min | 40dB(typical:45dB, 23C) |
| Speed, Max | 2000rpm |
| Pulling Strength | 10N |
| Optical Power Handling | 5mW/standard |
| Package Style | Pigtails on both ends |
| Connector Types | FC, SC, ST, SMA or LC |
PSR-F7-12-FORJ Dimensions
PSR-F3-24-FORJ Dimensions
PSR-F3-36-FORJ Dimensions
