Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-T38S-5P(100A)1E
Document:

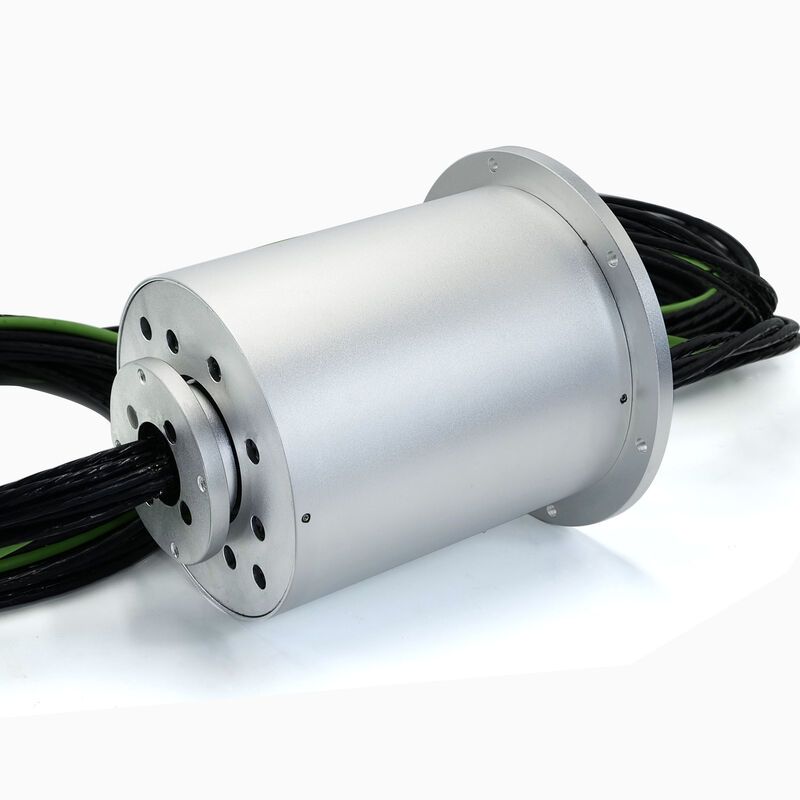

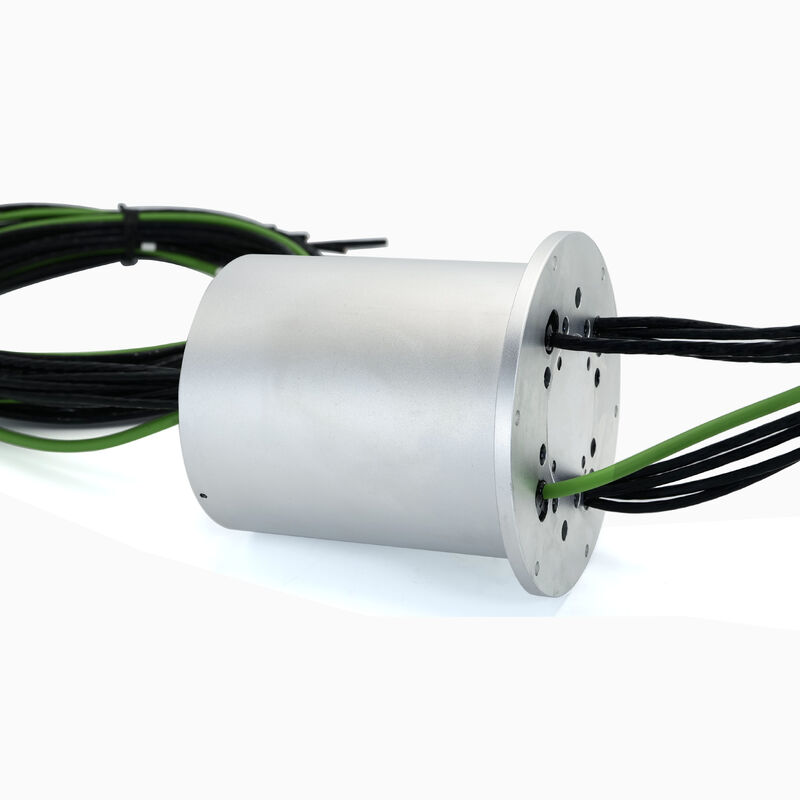

Heavy-duty Slip Ring for Simultaneous 100A Power and PROFINET Transmission, Engineered for Harsh Industrial Environments
High Current + Profinet
| Features | Applications |
| • Industrial Bus: 4 x Profinet | • Heavy-Duty Material Handling and Port Machinery |
| • Circuits: 5 x 100A | • Large-Scale Processing & Manufacturing Equipment and |
| • Voltage: 600VAC | Automated Production Lines |
| • Contact Material: Precious Metal |
• Professional Testing and Simulation Equipment |
| • Housing Material: Aluminium Alloy |
• Renewable Energy and Special-Purpose Vehicles |
| • Protection Level: IP54 |
| Model | Current | Voltage | D x L(mm) | Industrial Bus |
| PSR-T38S-5P(100A)1E | 5 x 100A | 600VAC | 168 x 168 | 4 x Profinet |
| Specification | |
| Total Rings | 10 |
| Circuit | 5 x Power(100A); 4 x Profinet |
| Voltage | 600VAC |
| Insulation Resistance | 100MΩ@500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 1000VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | ≤1.0N.m |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -20℃~+70℃ |
| Storage Temperature | -25℃~+75℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP54 |
