Model Number:
PSR-T25S-12P60S&MJX
Document:

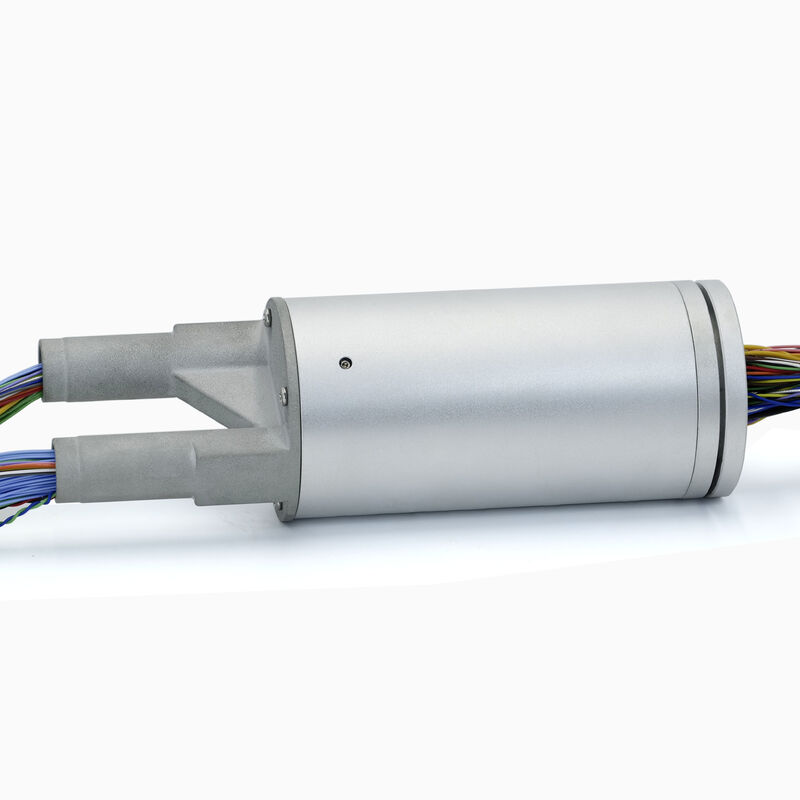

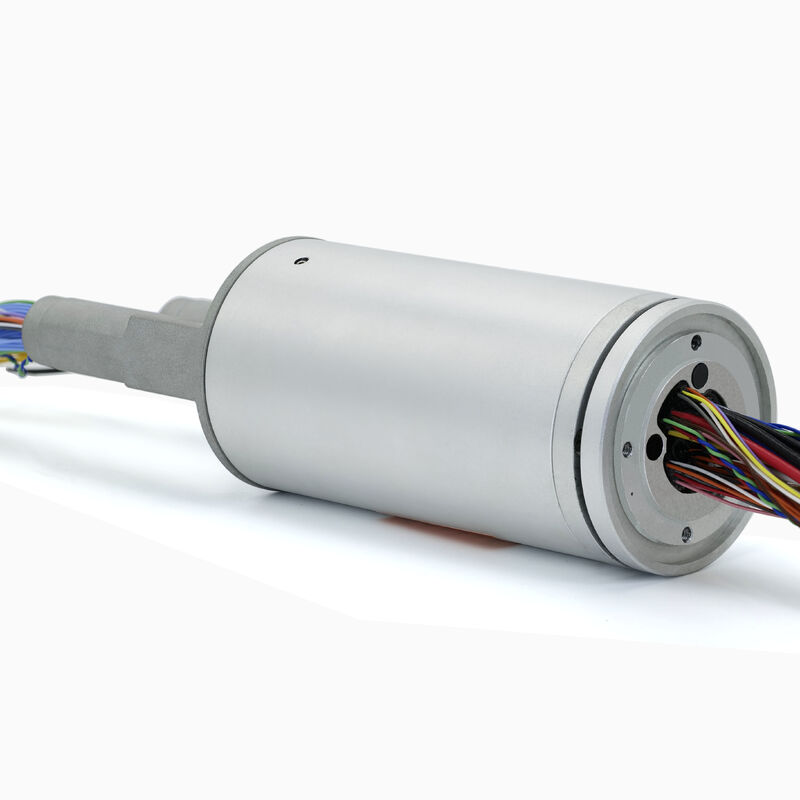

Single Channel SM Fiber Optic and Electrical Slip Ring Supporting High-Performance Power, Signal and Media Transmission
72 Electrical + 1 FORJ Integration
| Features | Applications |
| • Fiber Optic: 1 x SM | • Satellite Communication Systems |
| • Electrical: 2 x Power(20A)+ 10 x Power(8A) + 60 x Signal | • Medical Treatment Equipment |
| • Wavelength Range: 1310-1550nm | • Radar Antennas |
| • Protection Level: IP54 | • Military Systems |
| • Lifetime: 50 million revolutions | • HD Network Monitoring Systems |
| • Connector: | • Air Traffic Control |
| • Camera Technology |
| Model | PSR-T25S-12P60S&MJX |
| Circuits | 72 + 1 FORJ |
| Current | 2 x Power(20A)+ 10 x Power(8A) + 60 x Signal |
| Voltage | 48VDC |
| Insulation Resistance | 200MΩ@500VDC |
| Dielectric Strength | 500VAC@50Hz |
| Rotating Speed | 300rpm |
| Torque | Max 0.2N.M |
| Lifetime | 50 million revolutions |
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 95±3% |
| Vibration | 10~30 Frequency Double Amplitude 0.8mm 30~200HZ Frequency, acceleration 2g two circulationtotal 30 mi |
| Rush |
40g, 11mss, half sine wave, Vertical direction 3 times, Level 3 times |
| Protection Level | IP54 |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Leadwire | Teflon |
| Fiber Optic Specification | |
| Wavelength Range | 1310-1550nm |
| Inserlation Loss | ＜2dB(Typical: ＋/- 0.15dB |
| Returen Loss | ＞40dB(Typical:45dB, 23℃) |
| Maximum Speed | 2,000rpm |
| Pressure Compensation | 10,000psi |
| Torque | ＜0.1N.M |
| Pulling Strength | 10N |
| Fiber Type | Single Mode w/3 mm jacke |
| Weight | 50g |
| Housing Material | Stainless Steel |
| Working Temperature | -40℃~+65℃ |
| Lifetime | 200-400 million revolutions |
