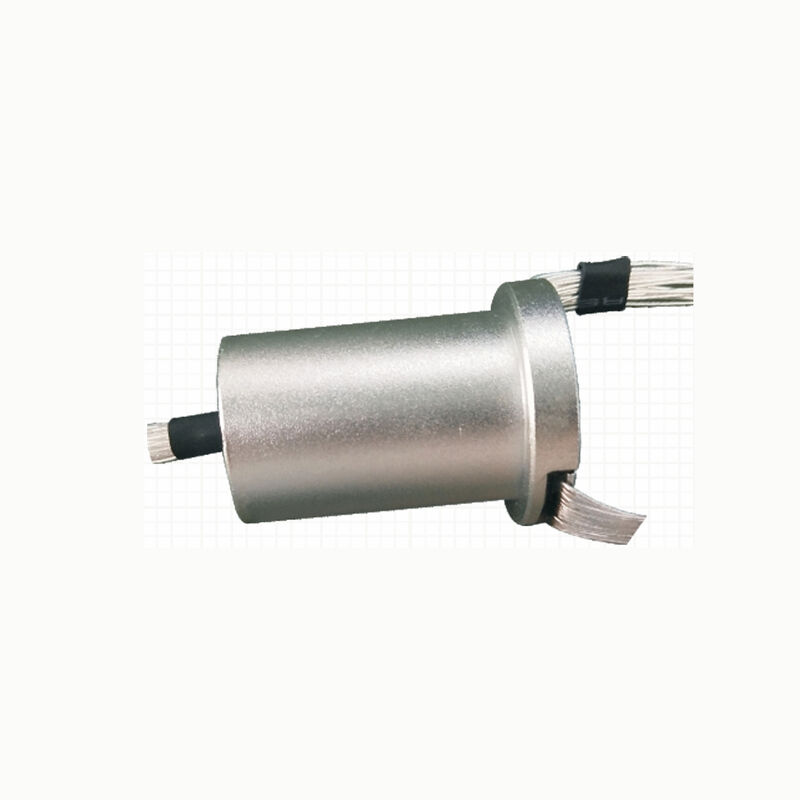

PSR-JC-44 Defense Miniature Slip Ring Capsule
Panlink aerospace and defense miniature slip ring capsules are specially developed for inertial navigation systems,unmanned aerial vehicles(UAV) and other high end precision systems. These slip rings adopt unique manufacturing technology to achieve multiple channels transmission in miniature space while with the advantages of small friction, low torque, low noise and light weight.
Existing 36, 38, 44, 60, 78 and 168 ways aerospace and defense miniature slip rings capsules available. Each slip ring assembly has been passed temperature, vibration and shock environment testing to provide high reliability performance for aerospace and defense operating systems.
| Features | |
| ■ 44 rings packaged in a self-contained envelope 22mm barrel diameter and 54.5mm long | |
| ■ Superior signal handling performance: compatible with with 1553B, Gigabit Ethernet, RS422, analog | |
| video and various communication and control signals | |
| ■ Gold on gold sliding contact technology ensure high reliable | Typical Applications |
| transmission | ■ Inertial navigation systems |
| ■ Operating speed up to 200rpm | ■ Unmanned aerial vehicles(UAV) |
| ■ Electrical noise < 20mΩ per circuit pair | ■ Weapon Systems |
| ■ Up to 10 million revolutions long service life | ■ High precision systems |
| Specification | |
| Voltage | 48VDC(Higher Optional0 |
| Current | 1A (2A or Higher Optional) |
| Insulation Resistance | 200MΩ@500VDC |
| Eletric Noise | 20mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 200rpm |
| Torque | <0.01N*M |
| Life Time | 10 million revolutions |
| Contact Material | Gold-Gold |
| Lead Wires | 300mm AWG#30 irradiation crosslinking wires |
| Housing Material | Aluminium Alloy |
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -45℃~+85℃ |
| Relative Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP54 |
| Vibration | MIL-STD-810G |
| Shock | MIL-STD-810G |
PSR-JC-44 Dimensions
