Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Military Capsule Slip Ring
To address the demands for multi-circuit and small-size slip rings in aerospace and military applications, Panlink has developed the “Small Size, High Power” Military Capsule Slip Ring. These units are constructed using military-grade custom materials and are manufactured to meet stringent military standards for machining accuracy and concentricity. They can accommodate up to 165 wires in a compact configuration, while maintaining a lightweight design. Each unit is housed in a robust, self-contained enclosure, offering exceptional signal handling capabilities.
| Main Application | Advantage |
| • Extremely precise and compact configuration | |
| • Missiles and airborne camera platforms | • Light weight |
| • Unmanned Aerial Vehicles(UAV) camera systems | • High reliability suitable for military operation conditions |
| • Armed command vehicles | • Long lifetime and maintenance-free |
| • Radar systems | • Standard units and fast delivery |
| Feature |
| • Multi-circuits and small size |
| • All lead wires are Irradiation crosslinking wires |
| • Up to 168 circuits |
|
• Compatible with 1553B, 100M Ethernet, Gigabit Ethernet, RS422, RS485, RS232, analog video and various communication and control signals. |
| • Max 200rpm operating speed |
| • Gold on gold sliding contact |
| Model | Rings | Current(amps) | Voltage(VAC) | Size(mm) | Speed | Page | |||
| 1 | 2 | 48 | 120 | OD | Length | ||||
| PSR-JC-80 | 80 | × | × | 18 | 54.8 | 200 | |||
| PSR-JS-78 | 78 | × | × | 18.4 | 54.6 | 200 | |||
| PSR-JC-38 | 38 | × | 22 | 37 | 200 | ||||
| PSR-JC-44 | 44 | × | × | 22 | 54.5 | 200 | P | ||

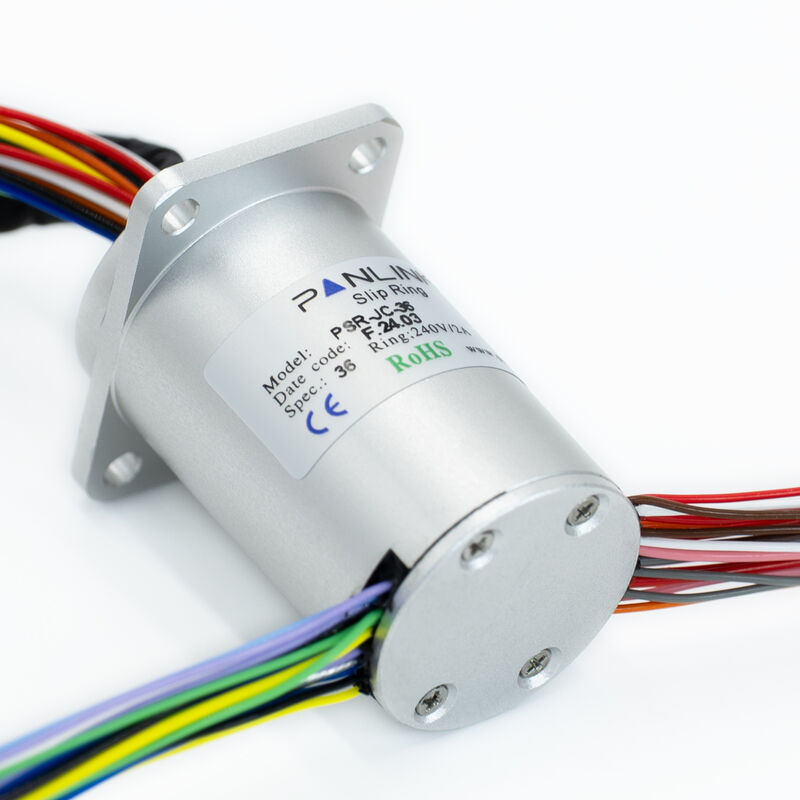

| PSR-JC-36 | 36 | × | × | 22 | 57.3 | 200 | |||
| PSR-JC-60 | 60 | × | × | 22 | 91.7 | 200 | P | ||
| PSR-JS-60 | 60 | × | × | 25 | 91.7 | 200 | |||
| PSR-JM-78 | 78 | × | × | 28 | 54.5 | 200 | P | ||
| PSR-JC-165 | 1651 | × | × | 52 | 115 | 200 | P | ||
| Remark: This slip ring is compatible with MIL-STD-1553B, 100M Ethernet, Gigabit Ethernet, RS422, RS485, RS232, analog video, and various communication and control signals. | |||||||||
| Specification | |
| Voltage Rating | 240VAC |
| Current Rating | 1A per circuit |
| Insulation Resistance | 1000MΩ @ 2000VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 600VDC/ 50Hz/ 60s |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 0.01N.m |
| Life Time, Min | 1 million revolutions |
| Contact Material | Gold-Gold |
| Lead Wires | 12color AWG#28 Teflon Wires |
| Housing Material | Aluminum Alloy or Engineer Plastic |
| Working Temperature | -40℃ to +80℃(-40℉ to +176℉) |
| Storage Temperature | -45℃ to +85℃(-49℉ to +185℉) |
| Shock | MIL-STD-810E |
| Protection Level | IP54 |
PSR-JC-38 Dimensions
PSR-JC-44 Dimensions
PSR-JC-36 Dimensions
