Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-WS Series

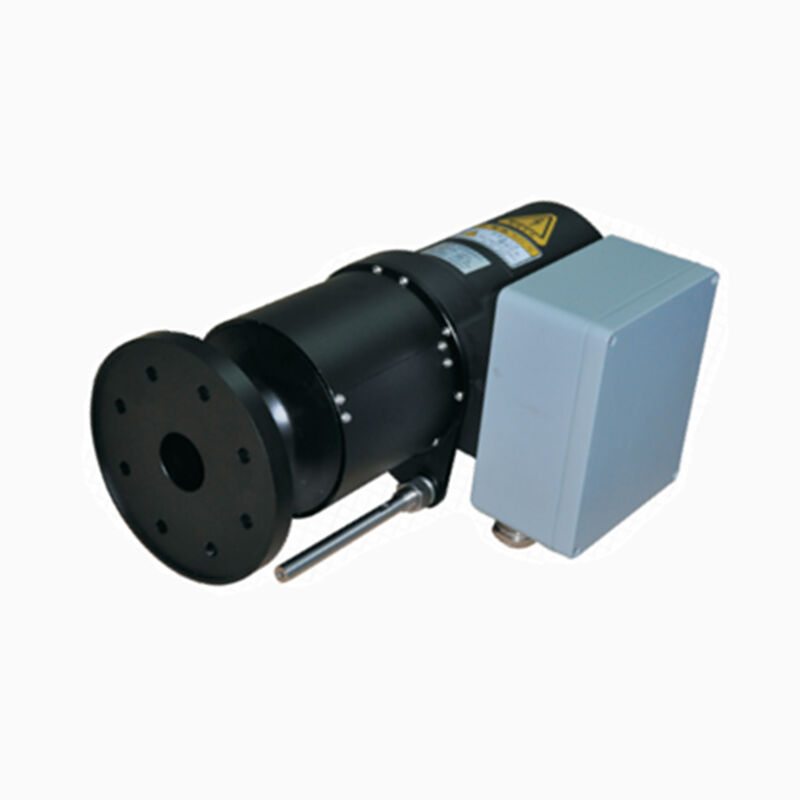

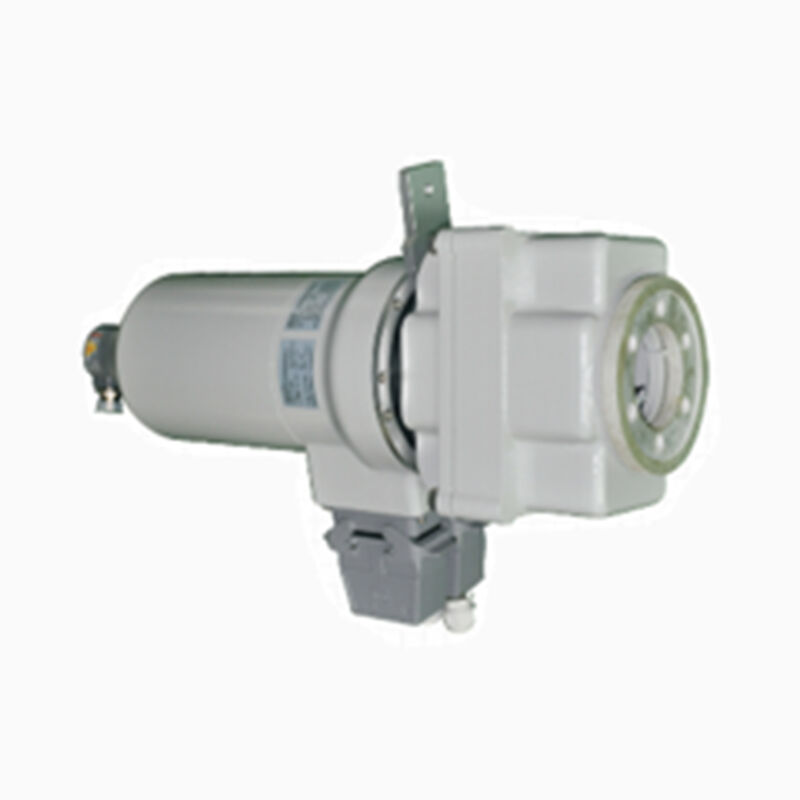

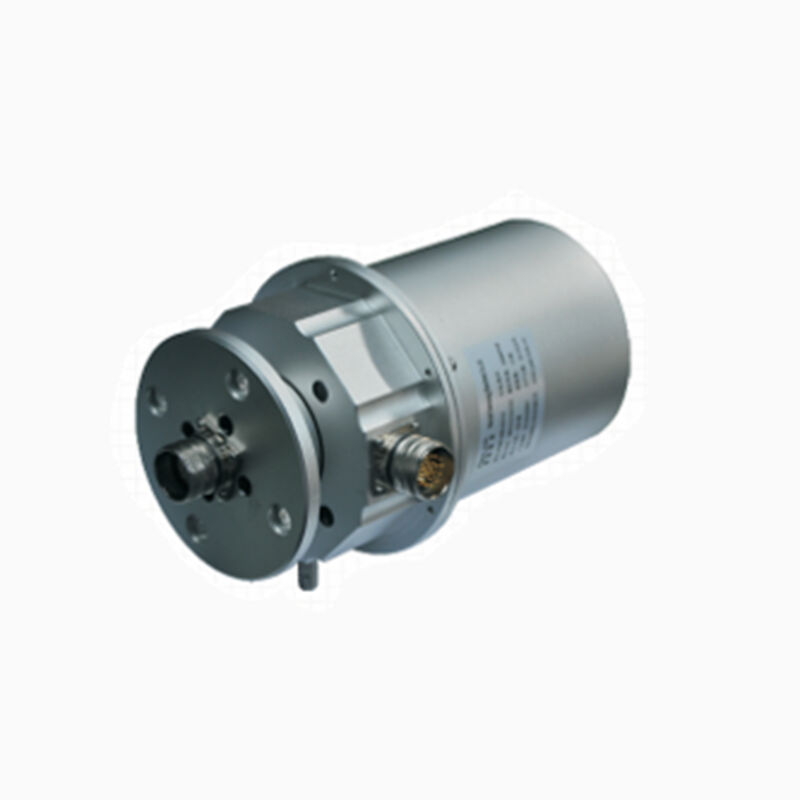

Wind Turbine Slip Ring with Standard Flanges Installed without Altering any Fan Equipment and Communication Signals and Protocols
Modern wind turbines rely on slip rings to transmit power and control signals from the hub to the blades, facilitating the operation and control of the wind turbine blades. These slip rings must maintain reliable transmission performance even in harsh environments, such as remote locations, low temperatures, and exposure to oil and seawater corrosion. The high reliability of the slip ring is crucial to ensure the normal operation of the wind turbine, which is one of the most critical components for stable performance.
As the pioneer in the development and mass production of wind turbine slip rings in China, Panlink has accumulated extensive experience through years of field operations. Our technology has continuously evolved, incorporating advanced precious metal fiber brushes and military-grade gold-plated ring contacts for multi-point connections. This ensures greater safety and reliability, enabling our slip rings to withstand extreme conditions such as high and low temperatures, vibrations, and swings while maintaining stable signal transmission. Our product range now extends from 250KW to 5MW fan impeller slip rings, meeting the diverse needs of the wind energy industry.
| Feature |
| • No External Lubrication: Maintains a maintenance cycle of at least 3 years. |
| • Low Friction & Loss: Ensures low electrical noise and extended service life. |
| • Wide Temperature Range: Operates from -40 °C to +80 °C. |
| • Unique & Reliable Design: Offers enhanced stability. |
| • Supports High Voltage & Current: Handles control signals effectively. |
| • Advanced Multi-Point Contacts: Utilizes the latest precious metal technology. |
| • C5 Anticorrosive Grade: Adaptable to harsh environments. |
| Model |
Current Rating (amps) |
Voltage Rating (VAC) |
ID (mm) |
Speed (rpm) |
| PSR-WS-20 | 20 | 400 | 20 | 50 |
| PSR-WS-17 | 30 | 690 | 17 | 50 |
| PSR-WS-11 | 100 | 1200 | 11 | 50 |
| PSR-WS-15 | 50~70 | 400 | 15 | 50 |
| PSR-WS-8 | 40~80 | 400 | 8 | 20 |
| PSR-WS-25 | 40 | 550 | 25 | 30 |
| PSR-WS-20 | 80 | 400 | 20 | 20 |
| PSR-WS-22 | 40~60 | 400 | 22 | 50 |
| PSR-WS-31 | 60 | 400 | 31 | 50 |
| PSR-WS-21B | 60 | 400 | 21 | 50 |
| PSR-WS-12 | 20 | 400 | 12 | 50 |
| PSR-WS-R4 | — | — | 4 | 50 |
| Remark: Customization is available for current, voltage, speed, power and data combinations. | ||||
|
PSR-WS-20 |
 |
|
Suitable for Macon 600-900KW and Vestas 850KW |
|
| Specification | |
| • Main power supply: 2 channels, 20A per channel, 400V. | |
| • Auxiliary power supply: 6 channels, 10A per channel, 230V. | |
| • Signal: 2 channels, 5A per channel, 24V. | |
| • Seal class: IP65. | |
| Feature | |
| • Compatible with Macon 600-900kW and Vestas 850KW turbines. | |
| • Easy installation and disassembly. | |
| • Gold contact material ensures low pressure, minimal wear and tear, and a long lifespan. | |
| • Multi-point contact design enhances reliability. | |
| • Integrated power, signal, and data transmission with anti-interference design. | |
| • Incorporates arc protection design. | |
| • Equipped with high-quality German-imported quick connectors. | |
| • Provides cost-effective solutions. | |
| PSR-WS-20 | |
|
Suitable for Macon 600-900KW and Vestas 850KW |
|
| Specification | |
| • Main power supply: 7 channels, 30A per channel, 400V. | |
| • Signal: 11 channels, 5A per channel, 24V. | |
| • Seal class: IP65. | |
| Feature | |
| • Suitable for turbines ranging from 850 KW to 1.25 MW. | |
| • Easy to install and disassemble. | |
|
• Optional flange mounting available for customer convenience. |
|
|
• Gold contact material ensures low pressure, minimal wear and tear, and a long service life. |
|
| • Multi-point contact design enhances reliability. | |
|
• Integrated power, signal, and data transmission with anti interference design. |
|
| • Incorporates arc protection design. | |
| PSR-WS-11 | |
|
Suitable for 900KW-3.6MW Electric Excitation Direct Drive Fan |
|
| Specification | |
| • 2-way excitation: 70-100A per ring, 1200V. | |
| • Main power supply: 40-80A per ring, 400V AC. | |
| • Control signal: 7 channels, 24V DC. | |
|
• Communication signal: 3-8 channels supporting RS485, CANopen, PROFIBUS, and other protocols. |
|
| • Seal class: IP65. | |
| Feature | |
| • Designed for 900kW-3.6MW direct-drive fans. | |
| • Optional incremental or absolute encoders available. | |
| • Incorporates arc protection design. | |
| • Lightweight construction for ease of handling. | |
| • Customer-optional flange installation for versatile mounting options. | |
|
• Gold-gold multi-point contact system ensures low resistance, low pressure, minimal wear and tear, and extended service life. |
|
|
• Integrated power, signal, and data transmission with robust anti- interference design. |
|
|
• Equipped with a low temperature compensation system for stable operation up to 40°C. |
|
| • External encoder installation allows for easy replacement. | |
|
PSR-WS-15 |
|
|
Suitable for 1.5-2.5MW Direct-Drive Fan (Hub Installation) |
|
| Specification | |
| • Standard German HARTING connectors. | |
| • Standard flanges installed without altering any fan equipment. | |
| • Main power supply: 5 channels, 50-70A per channel, 400V. | |
| • Control signal: 7 channels, 5A, 24V. | |
|
• Communication signal: 4-8 channels compatible with RS485, CANopen, PROFIBUS, and other protocols. |
|
| • Seal class: IP65. | |
| Feature | |
|
• Gold-gold multi-point contacts ensure low pressure, minimal wear and tear, and extended lifespan, enhancing reliability. |
|
| • Available with absolute or incremental encoders. | |
| • Equipped with a low-temperature heating controller. | |
| • Components undergo anodizing treatment for enhanced durability. | |
| • Suitable for coastal and low-temperature environments. | |
|
• Integrated power, signal, and data transmission with anti- interference design. |
|
| • Incorporates arc protection design. | |
|
• Lightweight construction for ease and speed of installation and removal. |
|
| PSR-WS-25 | |
|
Suitable for 1.5MW Doubly-Fed (Hub Installation) |
|
| Specification |
|
|
• Utilizes a standard German HARTING connector for easy installation and removal. |
|
| • Features standard flange mounting. | |
|
• Provides 25 channels with a working voltage of 550VDC and a main current of 40A per channel. |
|
|
• Includes an internally integrated encoder with a standard electrical interface. |
|
|
• Equipped with an internal surge protector to effectively safeguard the fan system. |
|
| • Seal class: IP65. | |
| Feature | |
| • Designed for compatibility with 1.5MW doubly-fed units. | |
|
• Combines power, signal, and data transmission with anti-interference design. |
|
|
• Employs multi-point contact with gold-precious metals for enhanced reliability. |
|
| • Incorporates arc protection design. | |
| • Offers optional installation of absolute or incremental encoders. | |
| • Includes a heating controller for low-temperature environments. | |
|
• Components are treated with anodizing and industrial baking paint for durability. |
|
| PSR-WS-20 | |
|
Suitable for 1.5MW Doubly-Fed Unit |
|
|
Specification |
|
| • Main power supply: 4 channels, 80A per channel, 400V. | |
|
• Auxiliary power supply: 3 channels at 300V, 5A per channel; 2 channels at 220V, 16A per channel; 2 channels at 230V, 5A per channel. |
|
| • Control signals: 56 channels, 24V DC. | |
|
• Communication signals: 4 channels, supporting RS485, CANopen, and other protocols. |
|
| • Seal class: IP65. | |
|
Feature |
|
| • Optional incremental or absolute encoders. | |
| • Lightweight design with a total weight of less than 12Kg. | |
|
• Unique insert sealing flange and dynamic sealing design to prevent oil or water from entering the slip ring. |
|
|
• Gold-gold multi-point contact system for low pressure, low wear and tear, and extended lifespan. |
|
|
• Integrated power, signal, and data transmission with anti- interference design. |
|
| • Arc protection design. |
| PSR-WS-22 | |
|
Suitable for 1.25-1.5MW Doubly-Fed Units (Used in Susland S64 and S82 Fans) |
|
| Specification | |
| • Main power supply: 4 channels, 40-60A per channel, 400V. | |
| • Auxiliary power supply: 5 channels, 12A per channel, 230V. | |
| • Signal: 7 channels, 2A per channel, 24V. | |
| • Data signal: 4 channels, 100MBit/s. | |
|
Extended Specification |
|
| • Main power supply: 5 channels, 60A per channel, 400V. | |
| • Auxiliary power supply: 4 channels, 16A per channel, 230V. | |
| • Signal: 11 channels, 5A per channel, 24V. | |
| • Data signal: 8 channels, 100MBit/s dual redundant use. | |
| Feature | |
| • Standard mounting flanges and electrical interfaces for easy integration. | |
|
• Gold-gold contact material ensures low pressure, minimal wear and tear, and extended service life. |
|
| • Multi-point contact design enhances reliability. | |
| • Integrated power, signal, and data transmission with anti-interference design. | |
| • Incorporates arc protection design. | |
| • Optional quick plug and pull structure for ease of installation and removal. | |
| |
|
| PSR-WS-31 | |
|
Suitable for 1.5-2MW doubly-fed units (gear box installation) |
|
|
(Used in Dongqi 1.5MW, Repower 2MW, Mingyang 1.5MW & 2MW) |
|
| Specification | |
|
• Power supply: 5-way power supply 60A per circuit, 400V; 4-way 16A per circuit, 230V. |
|
| • Control signal: 11 channels 5A per channel, 24VDC. | |
|
• Communication signal: 11 channels, RS485/CANopen/PROFIBUS and other communication protocols. |
|
|
• Standard installation flange and German HARTING connector; easy to install and remove. |
|
| • Seal class: IP65, main bearing dynamic seal. | |
| Feature | |
|
• Gold-gold multi-point contact for enhanced reliability, low resistance, low pressure, minimal wear and tear, and extended lifespan. |
|
|
• Multi-section contact technology and anti-arc design to withstand higher current surges. |
|
|
• Integrated power, signal, and data transmission with anti- interference design. |
|
| • Arc protection design. | |
| • Rotor inlet sealing. | |
| • Customer-optional mounting flange. | |
| • Absolute or incremental encoders. | |
| • Heating controller for low-temperature environments. | |
| PSR-WS-21B | |
|
Suitable for 1.5-2.5MW external rotor direct drive fan |
|
|
(hub installation method) |
|
| Specification | |
|
• Power supply: 5-channel power supply 60A per channel, 400VAC. |
|
|
• Auxiliary power supply: 3-way power supply 16A per circuit, 230VAC. |
|
| • Control signal: 10 channels, 5A per channel, 24VDC. | |
|
• Communication signal: 8 channels, compatible with communication protocols: RS485/CANopen/PROFIBUS and other protocols. |
|
| • Seal class: IP65. | |
| Feature | |
|
• Utilizes a German HARTING plug for both stator and rotor, facilitating easy installation and removal. |
|
| • Integrates incremental or absolute encoders. | |
|
• Gold-gold multi-point contacts ensure low pressure, minimal wear and tear, and an extended lifespan, enhancing reliability. |
|
| • Arc protection design effectively prevents current shock damage to the circuit. | |
| • Combines power, signal, and data transmission with an anti-interference design. | |
| • Lightweight design for quick and easy construction. | |
| • Shell anodizing and industrial baking paint treatment for durability. | |
| • Suitable for use in coastal and low-temperature environments. | |
| PSR-WS-12 | |
|
Suitable for Beihong 1.5MW and Vestas hydraulic impeller fan |
|
|
Specification |
|
| • Power supply: 5 channels, 20A per channel, 400VAC. | |
| • Control signal: 3 channels, 5A per channel, 24VDC. | |
|
• Communication signals: compatible with RS485, CANopen, PROFIBUS, and other protocols. |
|
|
• Standard flange installation and circular connector for easy installation and removal. |
|
|
• Seal class: IP65, with tight dynamic and static seals to prevent hydraulic oil from entering the slip ring. |
|
| Feature | |
|
• Gold-gold multi-point contacts for increased reliability, low pressure, minimal wear and tear, and extended lifespan. |
|
|
• Ring multi-surface contact technology and anti-arc design to withstand higher current surges. |
|
|
• Integrated power, signal, and data transmission with anti- interference design. |
|
| • Arc protection design. | |
| • Customer-optional mounting flange. | |
| • Heating controller for low-temperature environments. | |
| • Compatible with hydraulic rotary joints. | |
