Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-JC23-68

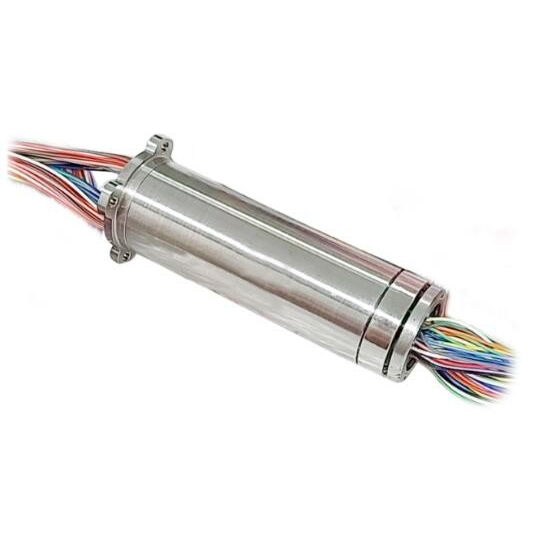

PSR-JC23-68 Minuture Capsule Slip Ring
A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC23-68 provides highly compact packaging to 68 circuits in very small 23 mm diameter housing with 74 mm overall length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and high reliability allows it to well suit for demanding operating environments.
Features
• 68 circuits packaged in a self-contained envelope 23 mm diameter and 74 mm length
• Up to 300 rpm operation
• Max 10mΩ electrical noise
• Up to 10 Million revolutions lifetime
• Outstanding signal handling capability to transfer the most demanding communication protocols
• Unique plating techniques and superior materials for high performance and reliability
• Precise, tight packaging capabilities for meeting stringent design criteria
• High reliability, meets military shock and vibration requirements
Typical Applications
• Gimballed pitch, roll and yaw axes of inertial navigation systems
• Airborne camera platforms
• Unmanned aerial vehicles (UAV)
Specification
| Electrical | |
| Circuits | 68 |
| Rating Voltage | 48 VAC / VDC |
| Rating Current | 2A per circuit |
| Insulation Resistance | 200 MΩ @500 VDC |
| Dielectric Strength | 200 VAC @ 50Hz |
| Electric Noise | Max 10mΩ |
| Mechanical | |
| Operating Speed | Max 300 rpm |
| Torque | Max 20 g.cm |
| Lifetime | 10 million revolutions |
| Material | |
| Contact Material | Gold-gold |
| Housing Material | Aluminum Alloy |
| Lead Wire | 450mm AWG#28 Teflon wires |
| Environmental | |
| Working Temperature | -40℃~ +80℃ |
| Storage Temperature | -45℃~ +85℃ |
| Working Humidity | 95±3%(30℃+5℃) |
| Vibration | MIL-STD-810H |
| Shock | MIL-STD-810H |
| Protection | IP51 |
PSR-JC23-68 Dimensions
| Model No | Rings | Power(1A)/Signal | Power(5A) | Gbits Ethernet | 3G-SDI | OD | Length | |
| 1 | PSR-JC23--40 | 40 | 40 | 23 | 49 | |||
| 2 | PSR-JC23--68 | 68 | 60 | 74 | ||||
| 3 | PSR-JC23--60S1G | 60 | 1 | |||||
| 4 | PSR-JC23--65S-SDI | 65 | 1 | |||||
| 5 | PSR-JC23--57S1G-SDI | 57 | 1 | 1 | ||||
| 6 | PSR-JC23--54S1G-2SDI | 54 | 1 | 2 | ||||
| 7 | PSR-JC23--2P62S | 62 | 2 | |||||
| 8 | PSR-JC23--2P51S1G-SDI | 51 | 2 | 1 | 1 |
