Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-JC22-95

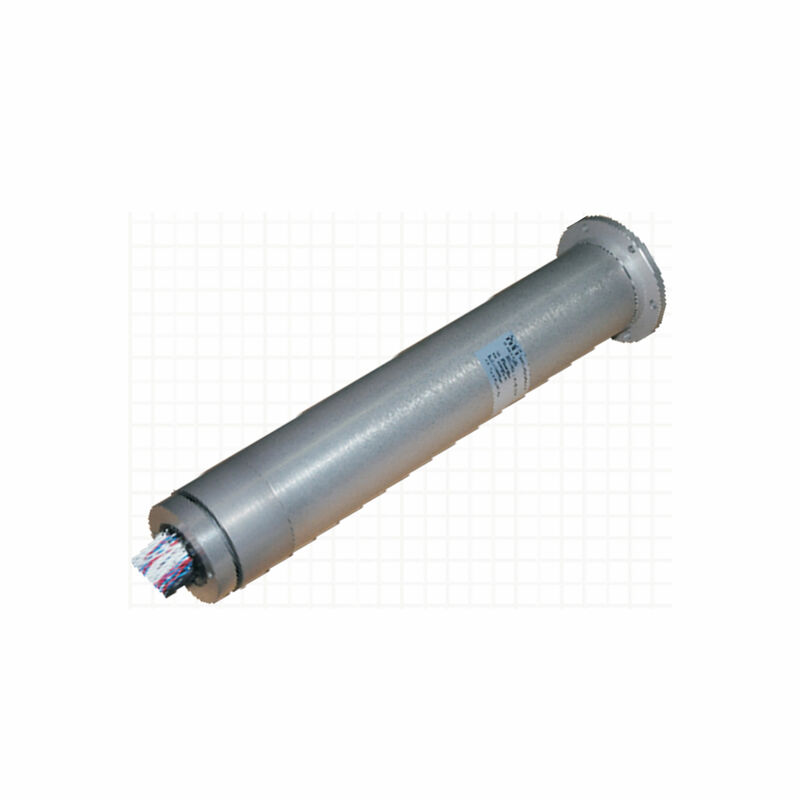

PSR-JC22-95 Miniature Capsule Slip Ring Ideal For Demanding Space Applications
PSR-JC22-95
A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC22-95 provides highly compact packaging to 95 circuits in very small 22.35 mm diameter housing with 84 mm overall length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and stainless steel body allow it to well suit for demanding operating environments.
Features
• 95 circuits packaged in a self-contained envelope 22.35 mm diameter and 84 mm length
• Up to 60 rpm operation
• Max 10mΩ electrical noise
• Up to 10 Million revolutions lifetime
• Outstanding signal handling capability to transfer the most demanding communication protocols
• Unique plating techniques and superior materials for high performance and reliability
• Precise, tight packaging capabilities for meeting stringent design criteria
• Ideal for demanding space applications
• Other configurations are available from 16 to 80 circuits
Typical Applications
• Gimballed pitch, roll and yaw axes of inertial navigation systems
• Airborne camera platforms
• Unmanned aerial vehicles (UAV)
• Satellite de-spin assemblies
• Deep earth drilling projects
| Specification | |
| Circuits | 95 |
| Rating Voltage | 48 VAC / VDC |
| Rating Current | 1A per circuit |
| Insulation Resistance | 200 MΩ @500 VDC |
| Dielectric Strength | 200 VAC @ 50Hz |
| Electric Noise | Max 10mΩ |
| Operating Speed | Max 60 rpm |
| Torque | Max 20 g.cm |
| Lifetime | 10 million revolutions |
| Contact Material | Gold-Gold |
| Housing Material | Aluminum Alloy |
| Lead Wire | 450mm AWG#30 Teflon wires |
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -45℃~+85℃ |
| Working Humidity | 95±3%(30℃+5℃) |
| Vibration | MIL-STD-810H |
| Shock | MIL-STD-810H |
| Protection Level | IP51 |
PSR-JC22-95 Dimensions
| No | Model No | Rings No | Power(1A)/Signal | Power(5A) | G bits Ethernet | 3G-SDI | OD | Length |
| 1 | PSR-JC22--60 | 60 | 60 | 22.35 | 63 | |||
| 2 | PSR-JC22--95 | 95 | 95 | 84 | ||||
| 3 | PSR-JC22--87S1G | 87 | 1 | |||||
| 4 | PSR-JC22--92S-SDI | 92 | 1 | |||||
| 5 | PSR-JC22--84S1G-SDI | 84 | 1 | 1 | ||||
| 6 | PSR-JC22--81S1G-2SDI | 81 | 1 | 2 | ||||
| 7 | PSR-JC22--2P89S | 89 | 2 | |||||
| 8 | PSR-JC22--2P78S1G-SDI | 78 | 2 | 1 | 1 |
