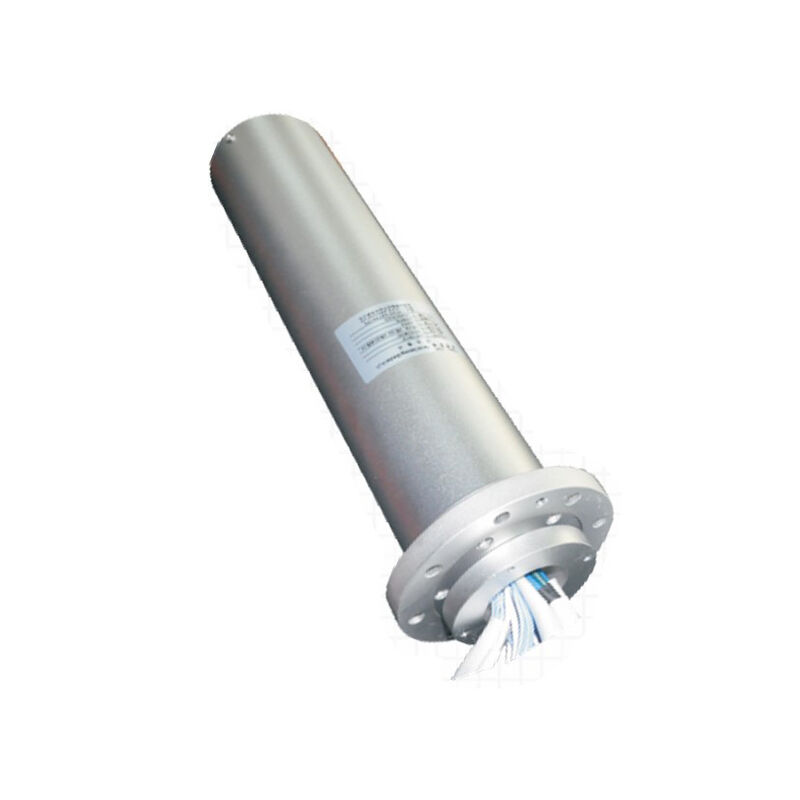

A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC22-44 provides highly compact packaging to 44 circuits in very small 21.9 mm diameter housing with 54.5 mm overall length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and stainless steel body allow it to well suit for demanding operating environments.
Features
• 44 circuits packaged in a self-contained envelope 21.9 mm diameter and 54.5 mm length
• Rugged stainless steel body for demanding environments
• Up to 250 rpm operation
• Max 10mΩ electrical noise
• Up to 10 Million revolutions lifetime
• Outstanding signal handling capability to transfer the most demanding communication protocols
• Unique plating techniques and superior materials for high performance and reliability
• Precise, tight packaging capabilities for meeting stringent design criteria
• Ideal for demanding space applications
Typical Applications
• Gimballed pitch, roll and yaw axes of inertial navigation systems
• Airborne camera platforms
• Unmanned aerial vehicles (UAV)
• Laboratory equipment
| Specification | |
| Circuits | 44 |
| Rating Voltage | 48 VAC / VDC |
| Rating Current | 2A per circuit |
| Insulation Resistance | 200 MΩ @500 VDC |
| Dielectric Strength | 200 VAC @ 50Hz |
| Electric Noise | Max 10mΩ |
| Operating Speed | Max 250 rpm |
| Torque | Max 80 g.cm |
| Lifetime | 10 million revolutions |
| Contact Material | Gold-Gold |
| Housing Material | Aluminum Alloy |
| Lead Wire | 450mm AWG#28 PFA Wires |
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -45℃~+85℃ |
| Working Humidity | 95±3%(30℃+5℃) |
| Vibration | MIL-STD-810H |
| Shock | MIL-STD-810H |
| Shock | IP51 |
HOW TO ORDER
| No | Model No | Rings No | Power(1A)/Signal | Power(5A) | G bits Ethernet | 3G-SDI | OD | Length |
| 1 | PSR-JB22--44 | 44 | 44 | 22 | 54.5 | |||
| 2 | PSR-JB22--36S1G | 36 | 1 | |||||
| 3 | PSR-JB22--41S-SDI | 41 | 1 | |||||
| 4 | PSR-JB22--33S1G-SDI | 33 | 1 | 1 | ||||
| 5 | PSR-JB22--30S1G-2SDI | 30 | 1 | 2 | ||||
| 6 | PSR-JB22--2P38S | 38 | 2 | |||||
| 7 | PSR-JB22--2P27S1G-SDI | 27 | 2 | 1 | 1 |
