Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-JA22-38

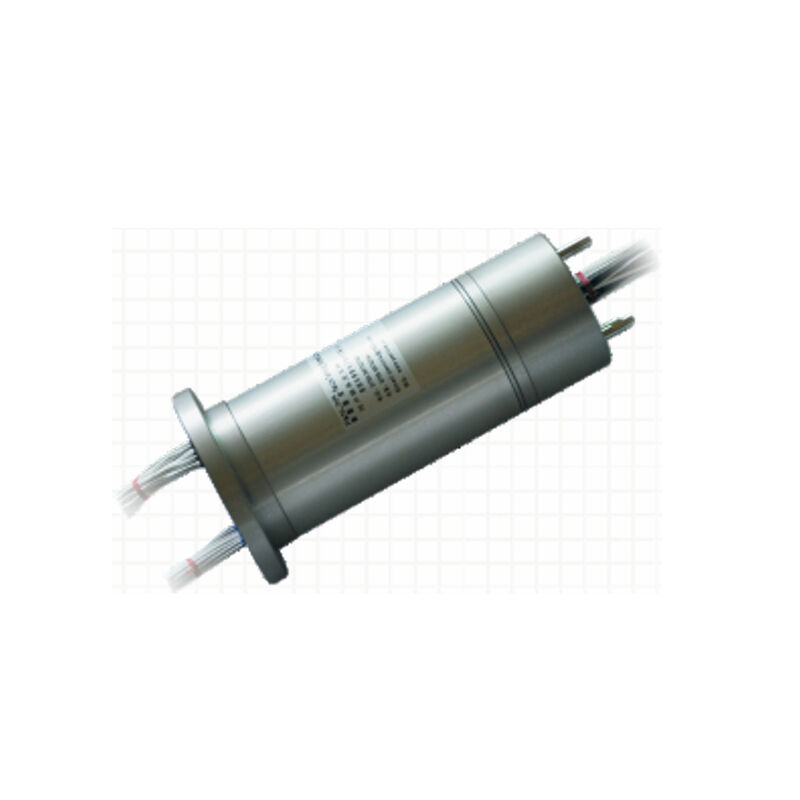

PSR-JA22-38 Miniture Capsule Slip Ring
A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC22-38 provides highly compact packaging to 38 circuits in very small 22mm diameter housing with 37mm overall length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and stainless steel body allow it to well suit for demanding operating environments.
Features
• 38 circuits packaged in a self-contained envelope 22mm diameter and 37mm length
• Rugged stainless steel body for demanding environments
• Up to 250 rpm operation
• Max 10mΩ electrical noise
• Up to 10 Million revolutions lifetime
• Outstanding signal handling capability to transfer the most demanding communication protocols
• Unique plating techniques and superior materials for high performance and reliability
• Precise, tight packaging capabilities for meeting stringent design criteria
• Ideal for demanding space applications
Typical Applications
• Gimballed pitch, roll and yaw axes of inertial navigation systems
• Airborne camera platforms
• Unmanned aerial vehicles (UAV)
• Laboratory equipment
| Specification | |
| Circuits | 38 |
| Rating Voltage | 48 VAC / VDC |
| Rating Current | 2A per circuit |
| Insulation Resistance | 200 MΩ @500 VDC |
| Dielectric Strength | 200 VAC @ 50Hz |
| Electric Noise | Max 10mΩ |
| Operating Speed | Max 250 rpm |
| Torque | Max 80 g.cm |
| Lifetime | 10 million revolutions |
| Contact Material | Gold-Gold |
| Housing Material | Aluminium Alloy |
| Lead Wire | 450mm AWG#28 PFA Wires |
| Working Humidity | -40℃~+80℃ |
| Storage Temperature | -45℃~+85℃ |
| Working Humidity | 95±3%(30℃+5℃) |
| Vibration | MIL-STD-810H |
| Shock | MIL-STD-810H |
| Protection Level | IP51 |
| No | Model No | Rings No | Power(1A)/Signal | Power(5A) | G bits Ethernet | 3G-SDI | OD | Length |
| 1 | PSR-JA22--38 | 38 | 38 | 22 | 37 | |||
| 2 | PSR-JA22--30S1G | 30 | 1 | |||||
| 3 | PSR-JA22--35S-SDI | 35 | 1 | |||||
| 4 | PSR-JA22--27S1G-SDI | 27 | 1 | 1 | ||||
| 5 | PSR-JA22--24S1G-2SDI | 24 | 1 | 2 | ||||
| 6 | PSR-JA22--2P32S | 32 | 2 | |||||
| 7 | PSR-JA22--2P21S1G-SDI | 21 | 2 | 1 | 1 |
