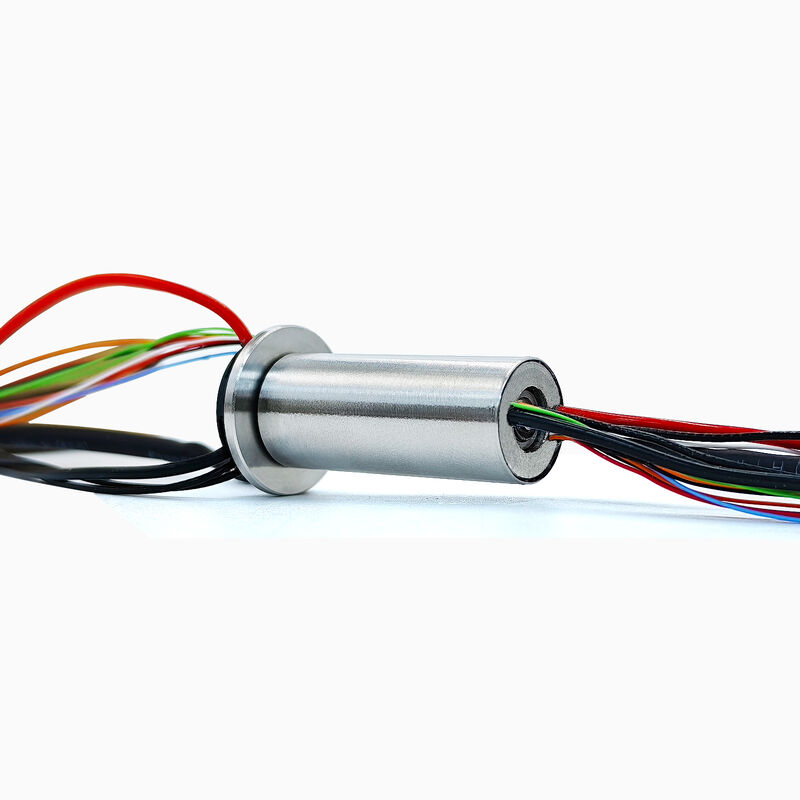

Miniature Military Slip Ring PSR-JS12-32 Ideal for Demanding Space Applications
PSR-JS12-32
A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JM12-32 provides highly compact packaging to 32 circuits in very small 12.7mm diameter housing with 23mm overall length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and stainless steel body allow it to well suit for demanding operating environments.
Features
• 32 circuits packaged in a self-contained envelope 12.7mm diameter and 23 mm length
• Rugged stainless steel body for demanding environments
• Up to 100 rpm operation
• Max 10mΩ electrical noise
• Up to 10 Million revolutions lifetime
• Outstanding signal handling capability to transfer the most demanding communication protocols
• Unique plating techniques and superior materials for high performance and reliability
• Precise, tight packaging capabilities for meeting stringent design criteria
• Ideal for demanding space applications
Typical Applications
• Gimballed pitch, roll and yaw axes of inertial navigation systems
• Airborne camera platforms
• Unmanned aerial vehicles (UAV)
• Laboratory equipment
| Specification | |
| Circuits | 32 |
| Rating Voltage | 48 VAC / VDC |
| Rating Current | 1A per circuit |
| Insulation Resistance | 200 MΩ @500 VDC |
| Dielectric Strength | 200 VAC @ 50Hz |
| Electric Noise | Max 10mΩ |
| Operating Speed | Max 100 rpm |
| Torque | Max 50 g.cm |
| Lifetime | 10 million revolutions |
| Contact Material | Gold-Gold |
| Housing Material | 304 Stainless Steel |
| Lead Wire | 450mm AWG#30 Teflon Wires |
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -45℃~+85℃ |
| Working Humidity | 95±3%(30℃+5℃) |
| Vibration | MIL-STD-810H |
| Shock | MIL-STD-810H |
| Protection Level | IP51 |
How to Order
| No | Model No | Rings No | Power(1A)/Signal | Power(5A) | G bits Ethernet | 3G-SDI | OD | Length |
| 1 | PSR-JS12--32 | 32 | 32 | 12.7 | 23 | |||
| 2 | PSR-JS12--24S1G | 24 | 1 | |||||
| 3 | PSR-JS12--29S-SDI | 29 | 1 | |||||
| 4 | PSR-JS12--21S1G-SDI | 21 | 1 | 1 | ||||
| 5 | PSR-JS12--18S1G-2SDI | 18 | 1 | 2 | ||||
| 6 | PSR-JS12--2P24S | 24 | 2 | |||||
| 7 | PSR-JS12--2P15S1G-SDI | 15 | 2 | 1 | 1 |
