Lieu d'origine:
Chine
Nom de marque:
Panlink
Certification:
ISO 9001: 2015, CE
Numéro de modèle:
PSR-F15-6RF

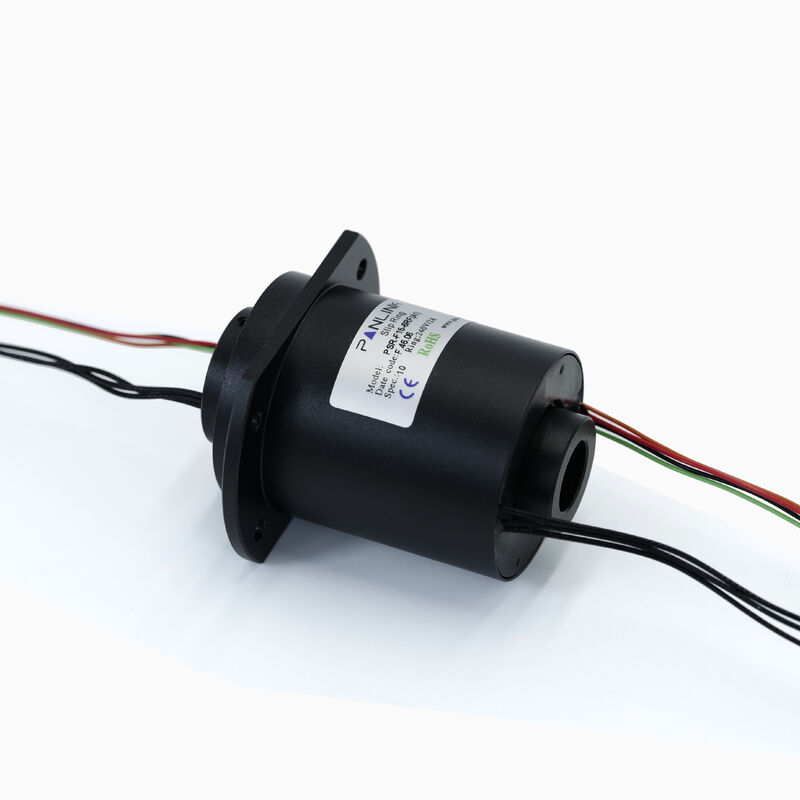

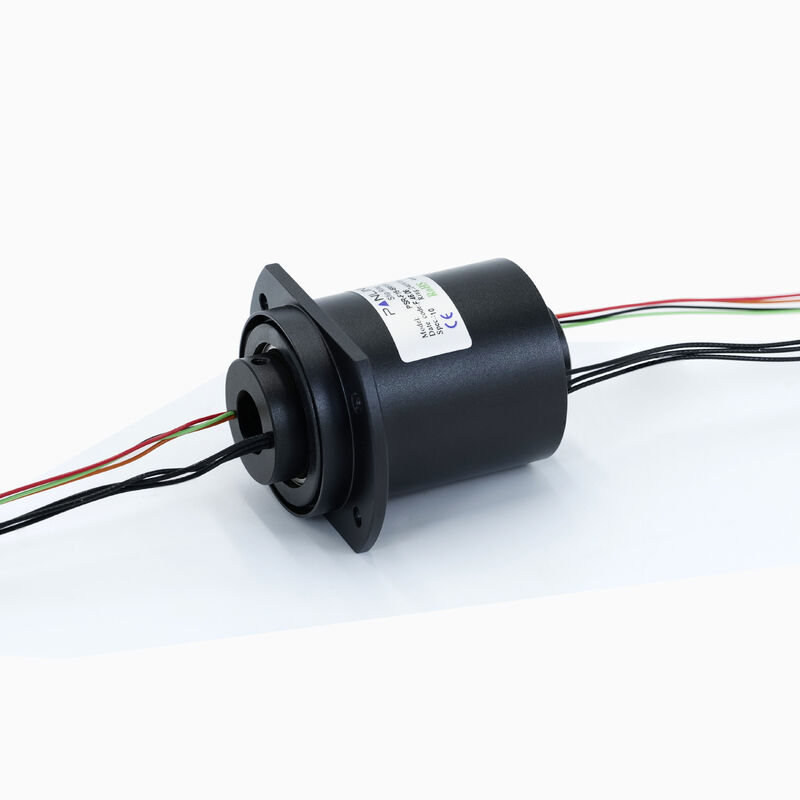

HD-SDI Slip Ring with 5000rpm IP54 and 4 Signal Channels
PSR-F15-6RF
| Circuits | 3 Channel for HD-SDI Transmission, 4 Channel for Signal Transmission |
| Electrical Specifications | |
| Frequency Rate | 3GHz HD-SDI |
| Voltage Rating | 100VDC |
| Current Rating | 4A |
| Insertion Loss max. | 2dB @3MHZ |
| Insulation Resistance | Max 500MΩ @ 500VDC |
| Dielectric Noise | 200VAC @ 50Hz, 60s |
| Electric Noise | Max 40mΩ |
| Lead Cable | Signal: AWG28 Teflon, HD-SDI Channel: RF0.81 |
| Mechanical Specifications | |
| Working Life | 30 million revolutions |
| Rotating Speed | 5000rpm |
| Operating Temperature | -40℉ to +158℉ (-40℃ to +70℃) |
| Storage Temperature | -49℉ to +176℉ (-45℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 100 gf.cm |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP54(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
