PSR-TS-3P(80A)97P108S-2E3G

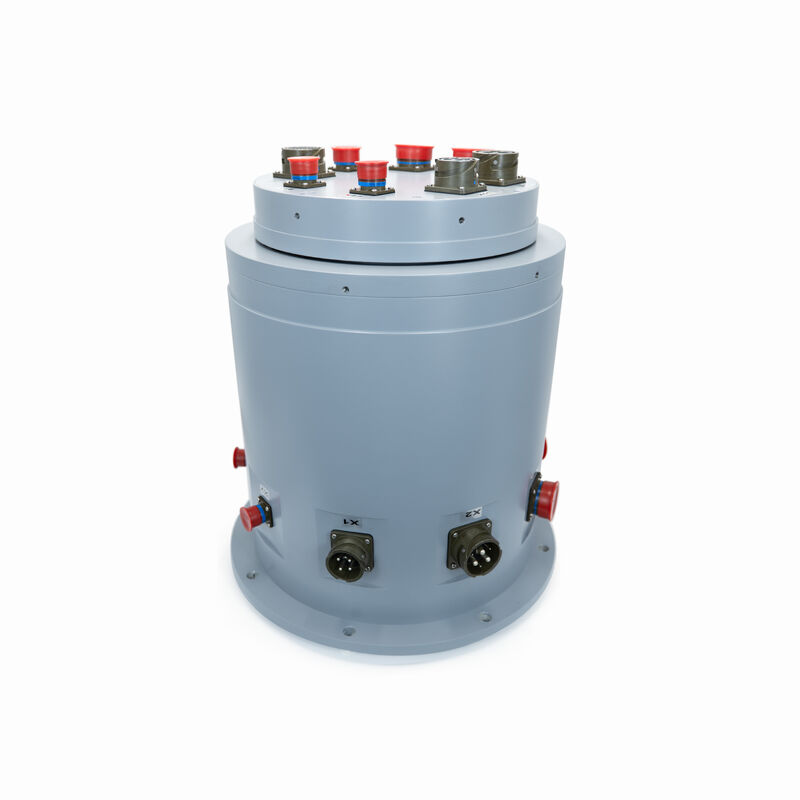

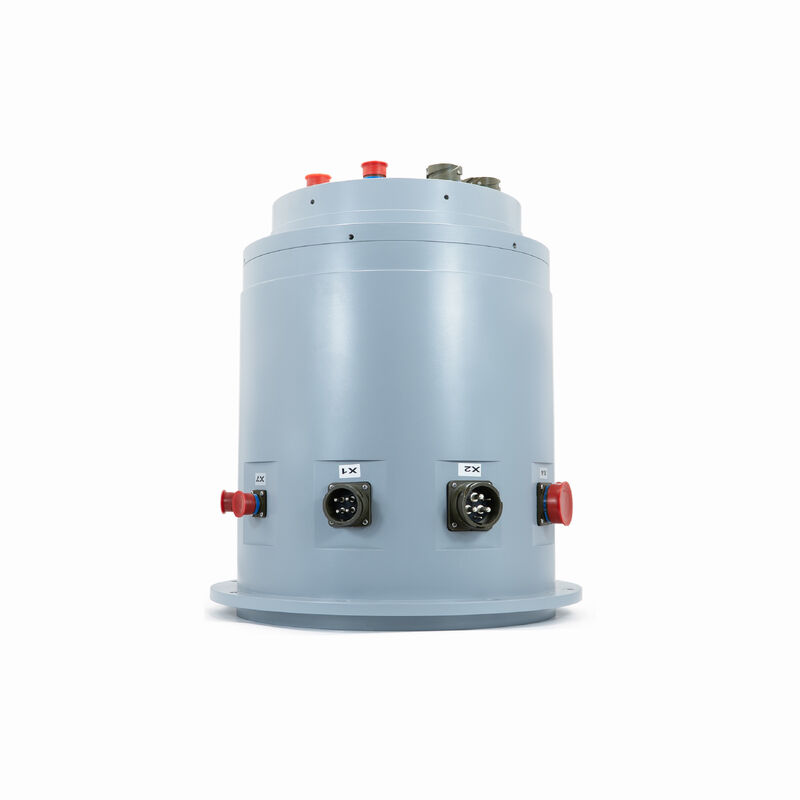

Heavy-duty slip ring for naval & radar systems: 100 power, GigE, CAN, MIL-STD-810H
PSR-TS-3P(80A)97P108S-2E3G
Drawing (Dimensions in millimeters)
Specification:
| Channels | (100×)Power+ (38×)Signal+ (4×)Gigabit Ethernet+(9×) Video+(8×)USB+ (9×)CAN |
| Electrical Specifications | |
| Voltage Rating | 440VAC/620VDC |
| Current Rating | Power: 80A, 46A, Signal: 2A |
| Insulation Resistance | Max 10MΩ @ 500VDC |
| Dielectric Noise | 1000VAC @ 50Hz, 60s |
| Contact Resistance | Max. 40mΩ |
| Mechanical Specifications | |
| Rotating Speed | 20rpm |
| Operating Temperature | -40℉ to +158℉ (-40℃ to +70℃) |
| Storage Temperature | -65.2℉ to +160℉ (-54℃ to +71℃) |
| Operating Humidity | 0~95%RH |
| Torque | 1.0N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy(Ral 7001 silver gray) |
| Protection Degree | IP54(higher or lower on request) |
| Vibration | MIL-STD-810H |
| Shock | MIL-STD-810H |
| Salt Fog | Vibration |
| ESD Protection | AECTP 500E Edition 4 |
| Vibration of Ship | MIL-STD-810H |
| Rain | MIL-STD-810H Method 506.6 |
| Protection Degree | IP X6 |
| Weight | 30KG Max. |
